Plastic Cable Clamp, 3/4" Dia, Smooth Edge, Fast Install, Screw or Nail Mount, UVB Black, 6/Bag
Part # PPC-1575UVB

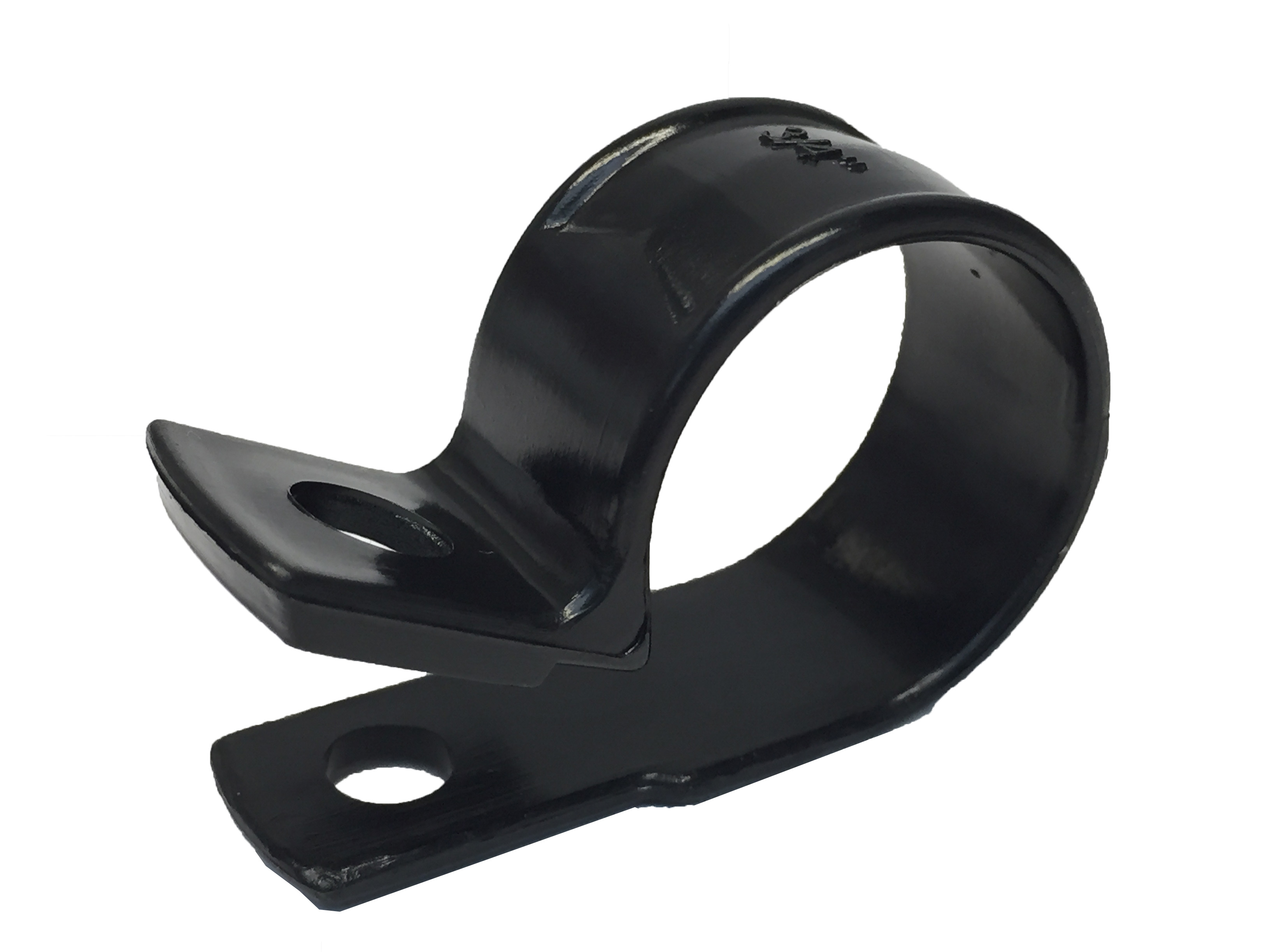

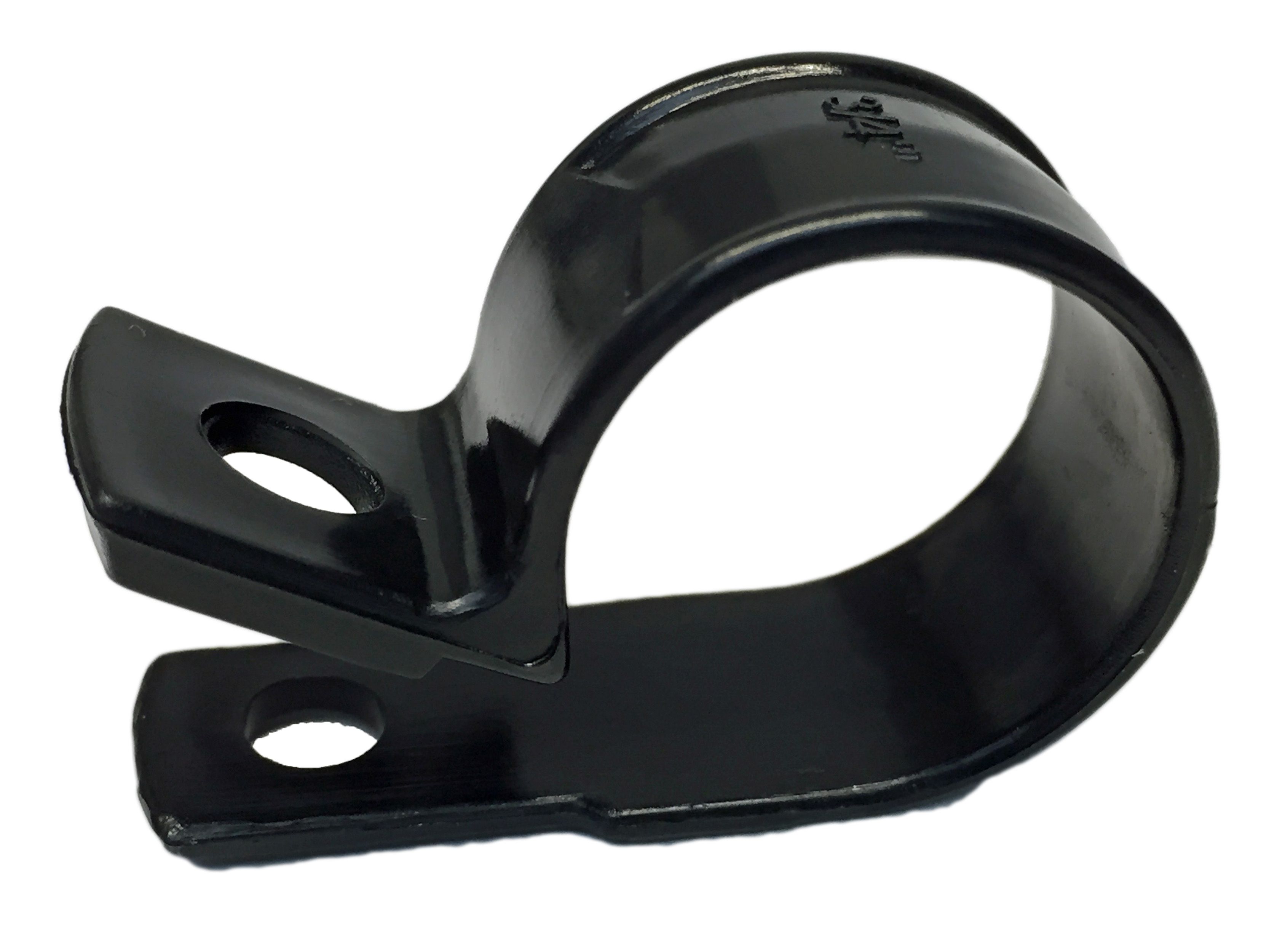

Gardner Bender Plastic Clamps are tough, durable, yet extremely lightweight and feature clean, smooth edges to minimize damage to cables. Our More...
WHERE TO BUYGardner Bender Plastic Clamps are tough, durable, yet extremely lightweight and feature clean, smooth edges to minimize damage to cables. Our contractor-friendly design facilitates quick installations saving time and money. Clamps securely hold harnesses, cables and tubing up to 3/4" (19 mm) diameter. Designed for use in construction, maintenance and assembly-line applications, control cabinets, panels and general applications. Black UVB clamps offer superior performance indoors and out. Working temperature range: -54 C (-66 F) to 170 C (340 F) Instructions: Position clamp at desired location, insert cable(s) or tube(s), fasten with screw or nail.
- Lightweight plastic construction provides resistance to high and low temperature extremes
- Clean, smooth edges for easy handling and to help prevent cable damage
- Durable, crack-resistant plastic withstands tough conditions at the jobsite
- Use to hold harnesses, cables and tubing (not included) in construction, maintenance and assembly-line operations
- Mounting holes provided for easy installation with a screw or nail (not included)
- Working temperature range: -54 C (-66 F) to 170 C (340 F)
- Black colored clip handles bundles up to 3/4" (19 mm) diameter

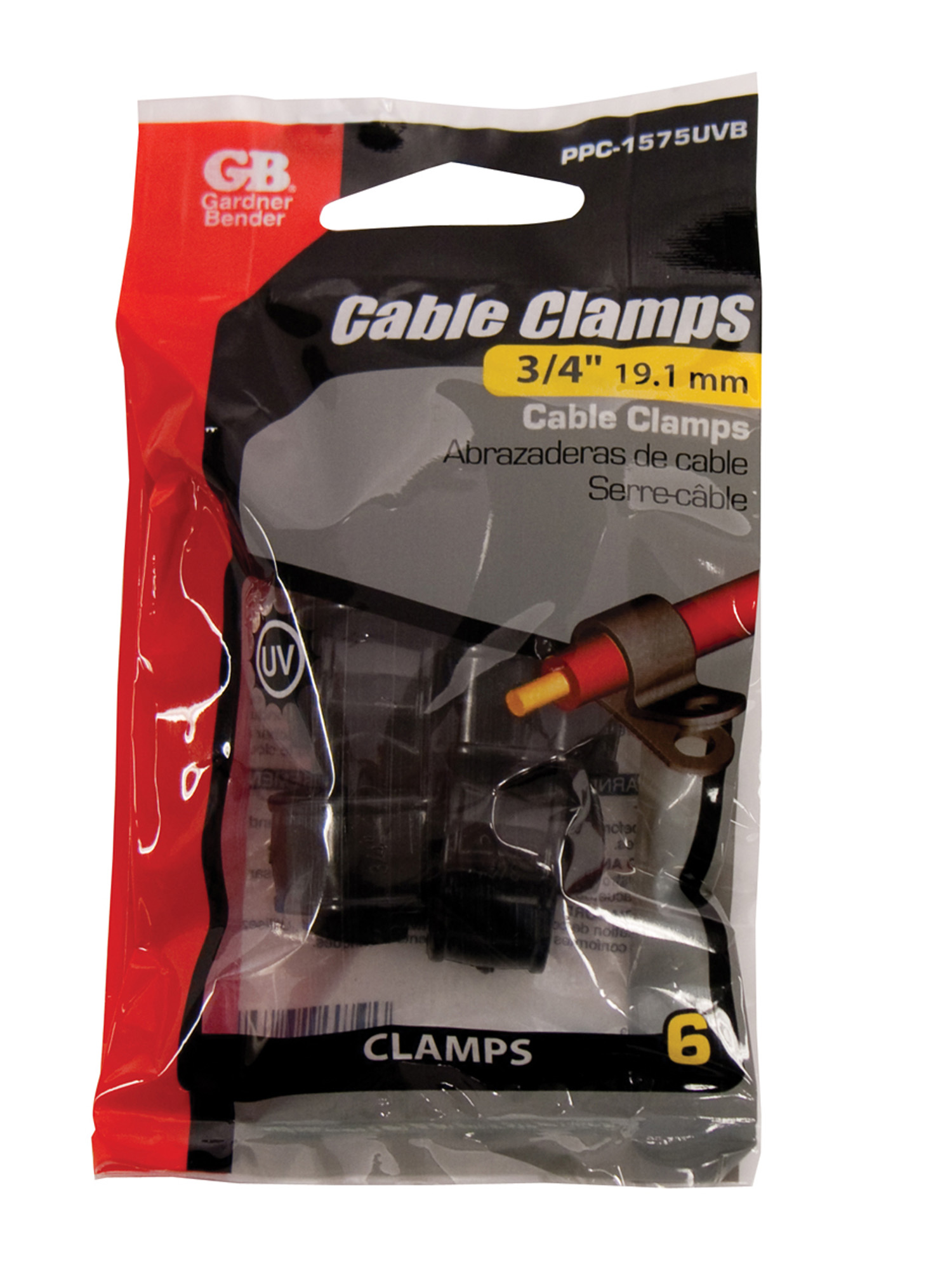

- 6 Clamps per Package
Warranty | Standard 1 Year |
Model | PPC-1575UVB |
RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
Color | Black |
Maximum Operating Temperature | 170 C (340 F) |
Minimum Operating Temperature | -54 C (-66 F) |
Out of Package Height (in) | 0.75 |
Out of Package Width (in) | 0.25 |
Out of Package Length/Depth (in) | 0.25 |
Each in Package Height (in) * | 1.3 |
Each in Package Width (in) * | 3 |
Each in Package Length/Depth (in) * | 1.1 |
Each in Package Weight (lbs) * | 0.038 |
Inner Pack Weight (lbs) * | 0.38 |
Maximum Bundle Diameter | 3/4" (19 mm) diameter |
