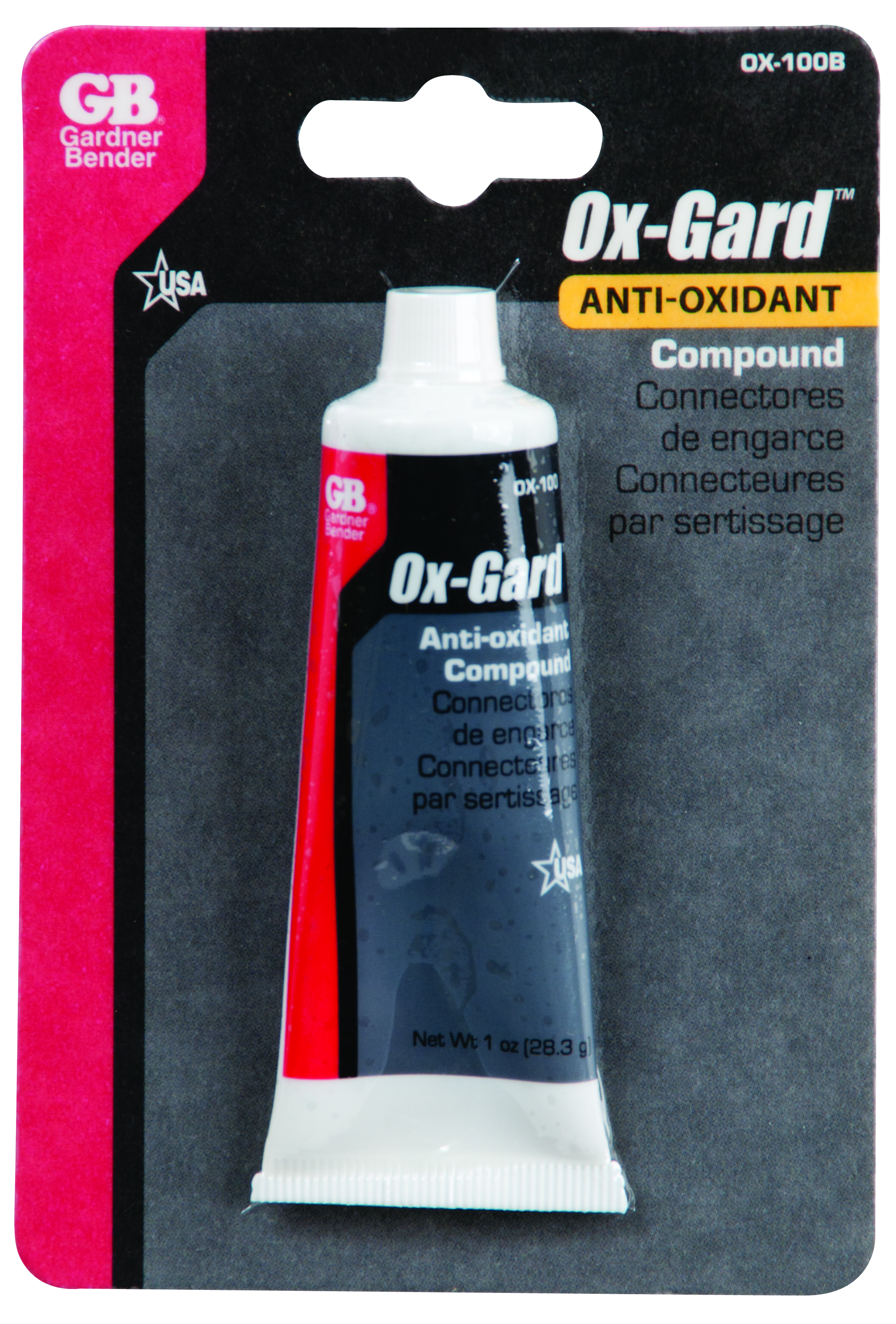

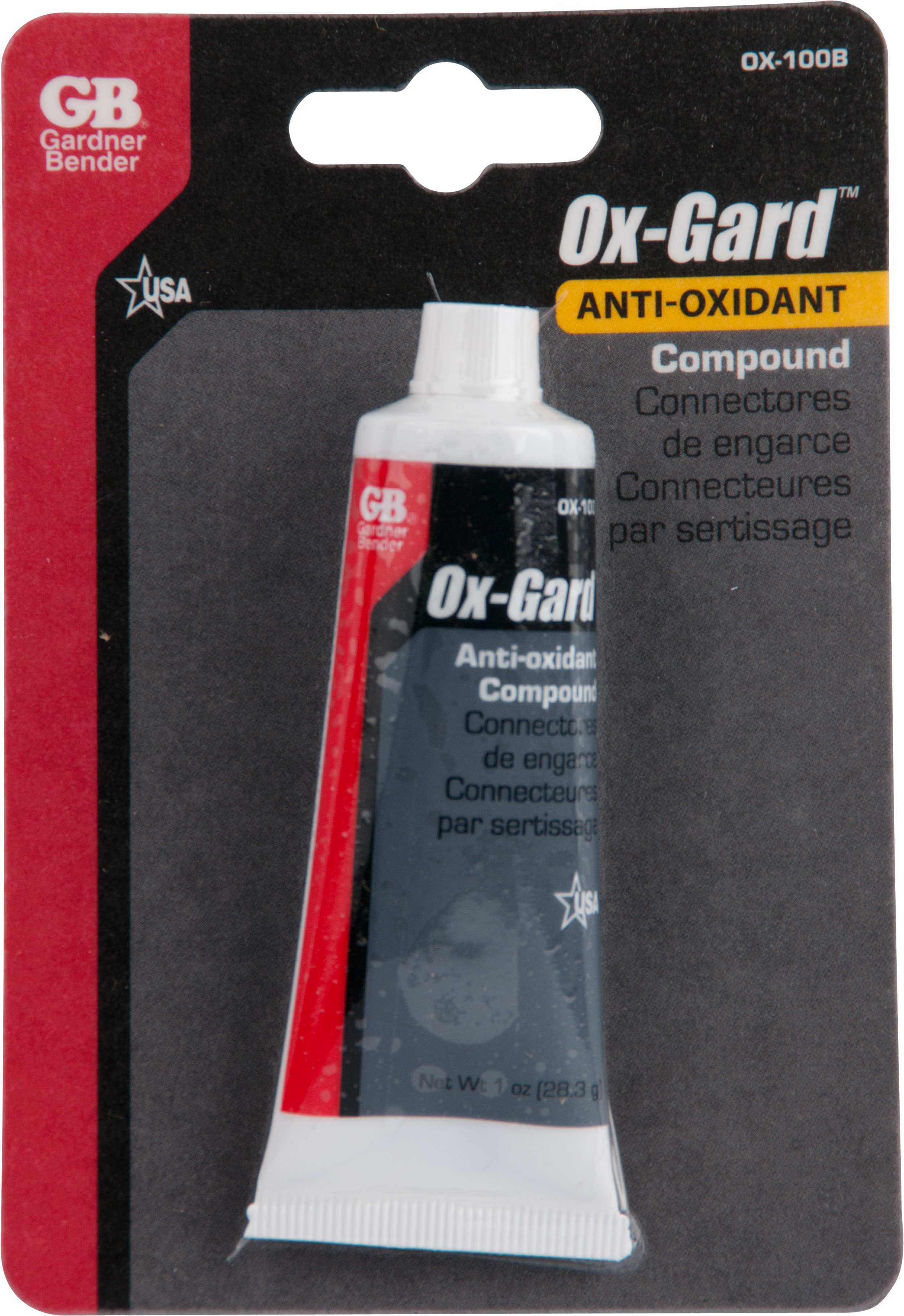

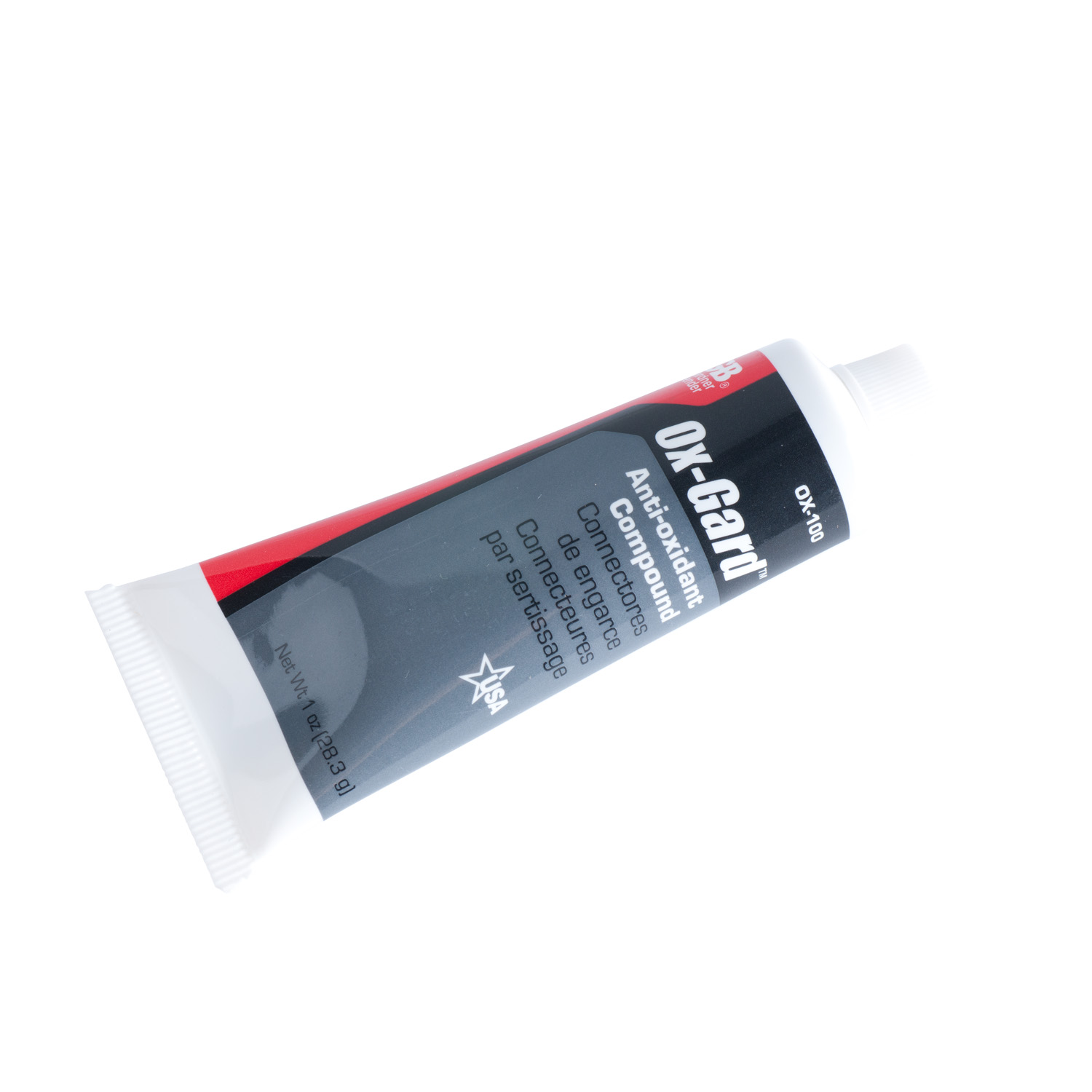

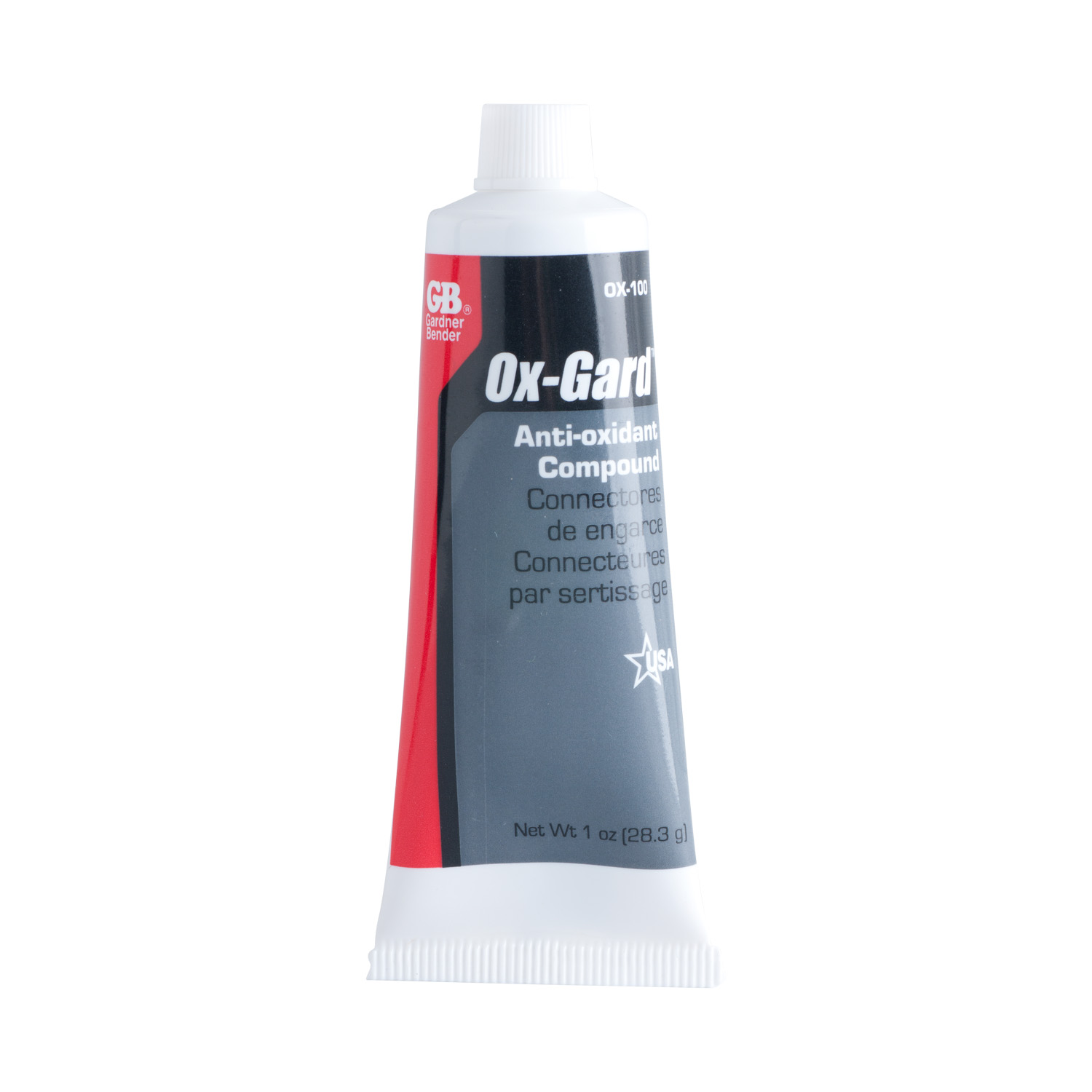

Ox-Gard Anti-Oxidant Compound
Part # OX-100B
Ox-Gard Anti-Oxidant Compound contains prime grade zinc and is formulated with metallic zinc to create a compound that enhances electrical and thermal More...
WHERE TO BUYOx-Gard Anti-Oxidant Compound contains prime grade zinc and is formulated with metallic zinc to create a compound that enhances electrical and thermal conductivity which is used on high power crimp connections and stud bolt mountings. When the connection is tightened, the grease is displaced, leaving a layer of zinc filling in the surface imperfections of the interface. This has a twofold effect; it improves electrical conductivity and it improves thermal conductivity. This reduces the connection temperature under high power conditions by a reduced voltage drop and by providing a heat conductivity path to the connection's substrate. Ox-Gard Anti-Oxidant Compound is manufactured with unique grease compounded from custom refined low sulphur oil. The grease base ensures brush-ability over a wide temperature range, tenacious adherence to all surfaces, resistance to water wash out and the prevention of rust and corrosion. This makes the product easier and more reliable to use.
- Makes connections more reliable
- Makes connections more weatherproof
- Protects connections from corrosion
- Reduces temperate rise
- Low sulphur content
- Non-reactive, no gassing in storage
- Brushable over a wide temperature range
- Sticks to wet joints
Warranty | Standard 1 Year |
RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
Color | White |
Out of Package Height (in) | 4 |
Out of Package Width (in) | 0.75 |
Out of Package Length/Depth (in) | 1.25 |
Each in Package Height (in) * | 5.5 |
Each in Package Width (in) * | 3.75 |
Each in Package Length/Depth (in) * | 1 |
Each in Package Weight (lbs) * | 0.112 |
Inner Pack Weight (lbs) * | 1.12 |
