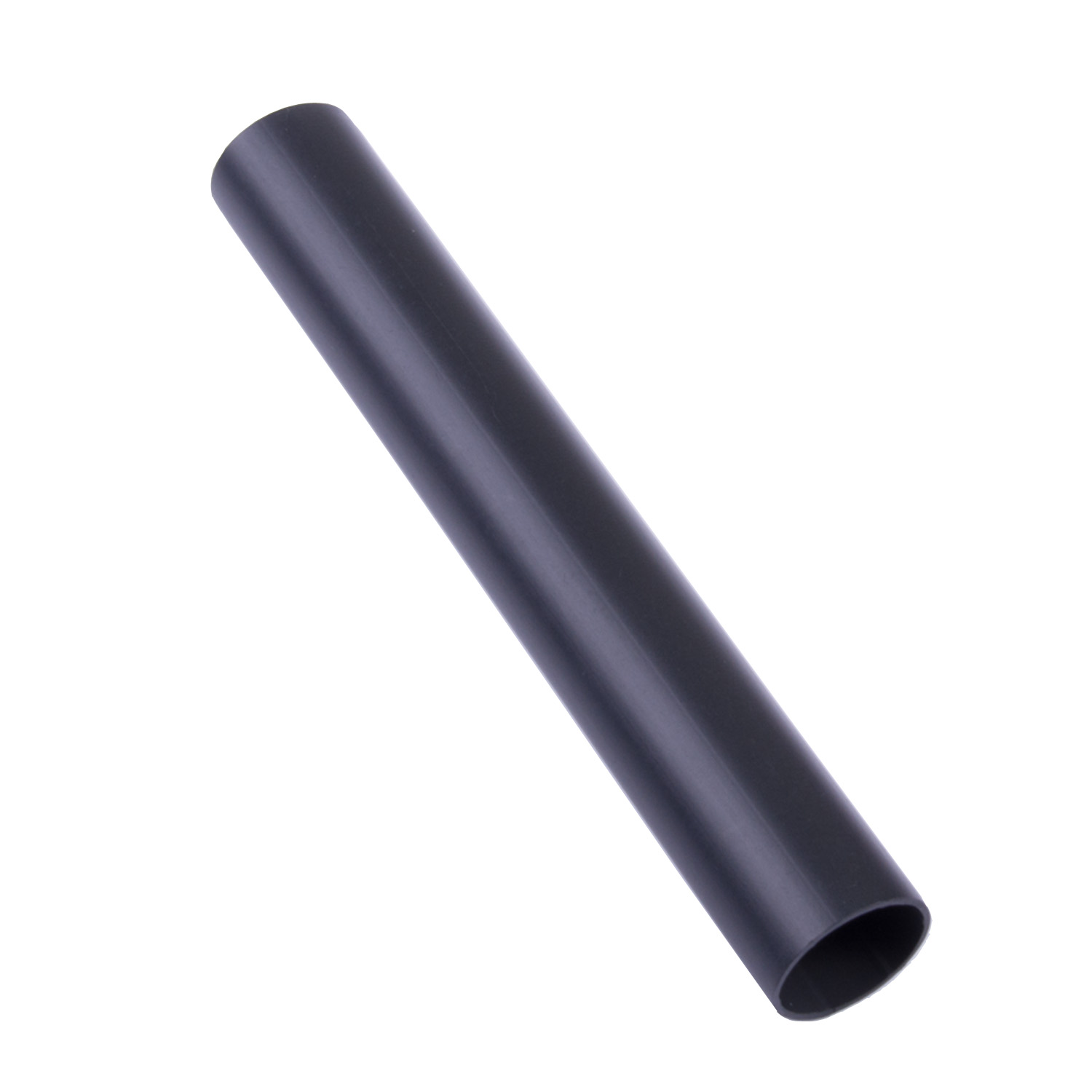

3/4 In. Heavy Wall Heat Shrink Tubing, 1/Bag
Part # HWT-0722
GB's heavy wall heat shrink tubing provides maximum reliability for insulating and protecting wire, cable and terminations. Deigned for applications More...
WHERE TO BUY

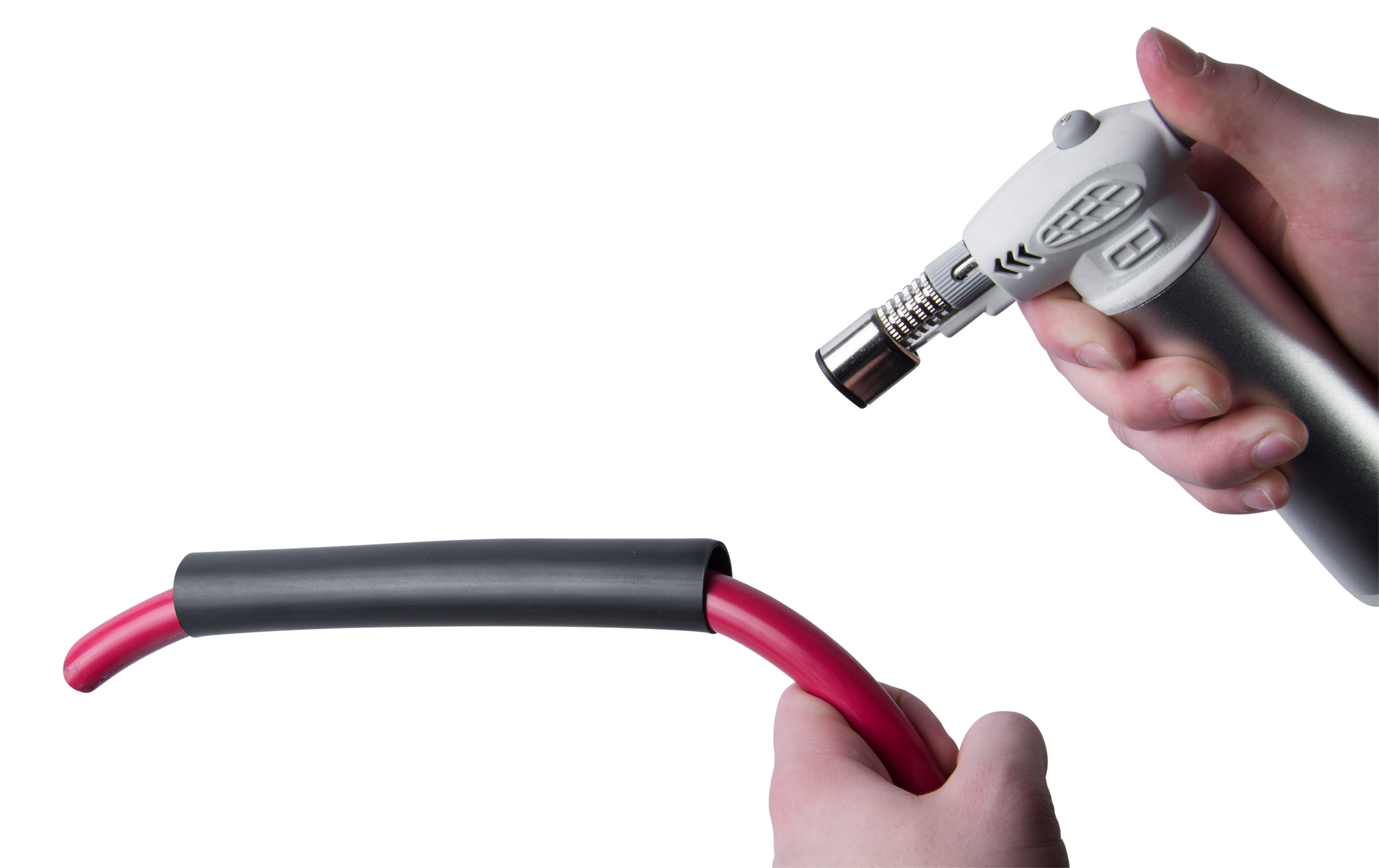

GB's heavy wall heat shrink tubing provides maximum reliability for insulating and protecting wire, cable and terminations. Deigned for applications where high impact, abrasion and corrosion resistance is needed. This type of heat shrink is submersible and great for direct burial installations. The inner adhesive bonds to plastics, rubber, neoprene, steel and polyethylene. Shrink begins to occur at 120 degree Celsius.
- Shrink temperature: 120 deg C (250 deg F)
- 3:1 shrink ratio from starting ID (inner diameter) size
- 3/4" (19 mm) Pre-Shrink Diameter; 1/4" (6.35 mm) Post-Shrink Diameter
| Warranty | Standard 1 Year |

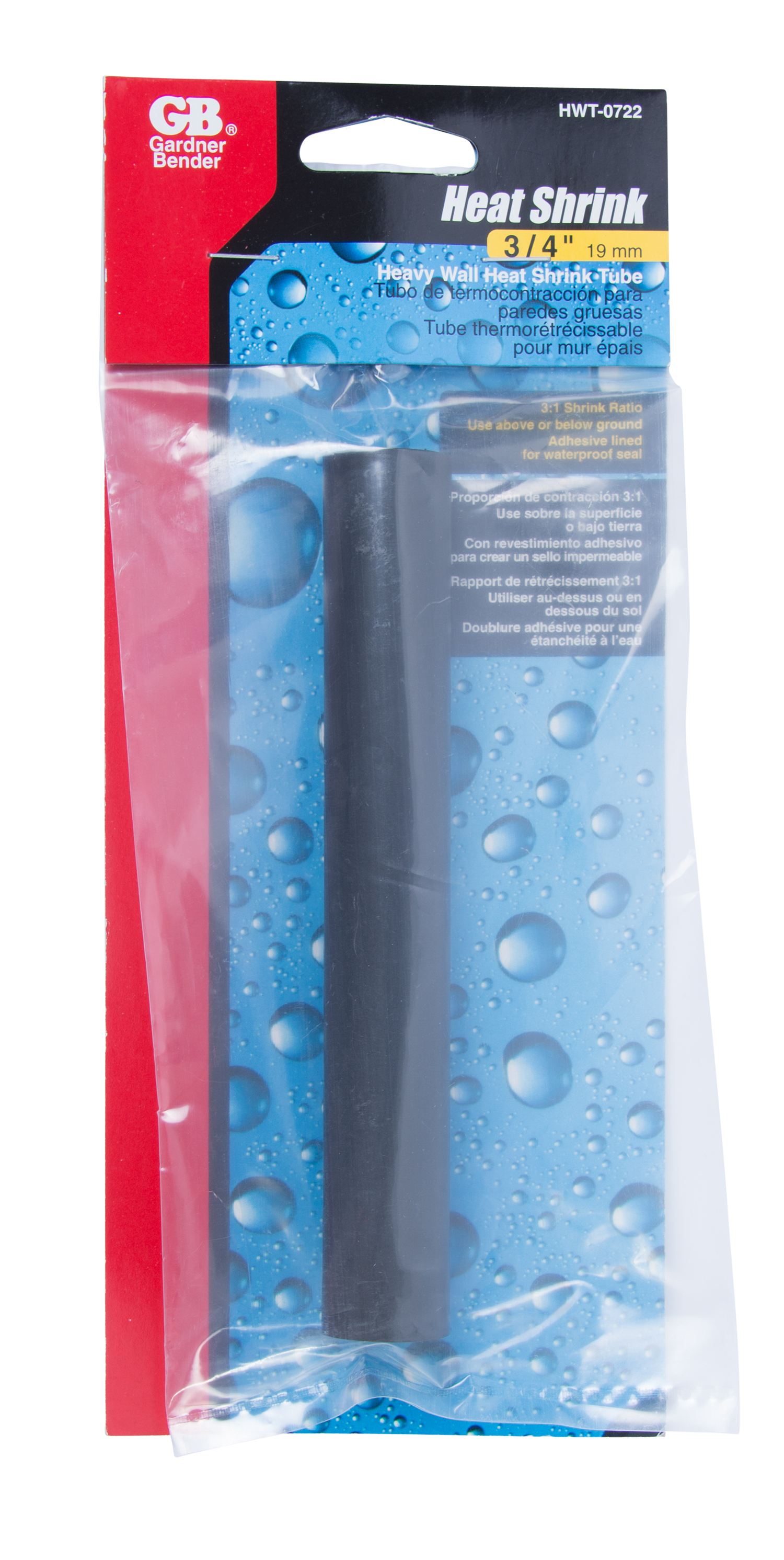

| Includes | 1 heavy wall heat shrink tube |
| RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
| Color | Black |
| Water Resistance | Yes |
| Out of Package Height (in) | 0.75 |
| Out of Package Height (metric) | 19 mm |
| Out of Package Width (in) | 0.75 |
| Out of Package Width (metric) | 19 mm |
| Out of Package Length/Depth (in) | 6 |
| Out of Package Depth (metric) | 152.4 mm |
| Each in Package Height (in) * | 8 |
| Each in Package Width (in) * | 4 |
| Each in Package Length/Depth (in) * | 1 |
| Each in Package Weight (lbs) * | 0.072 |
| Inner Pack Weight (lbs) * | 0.72 |
