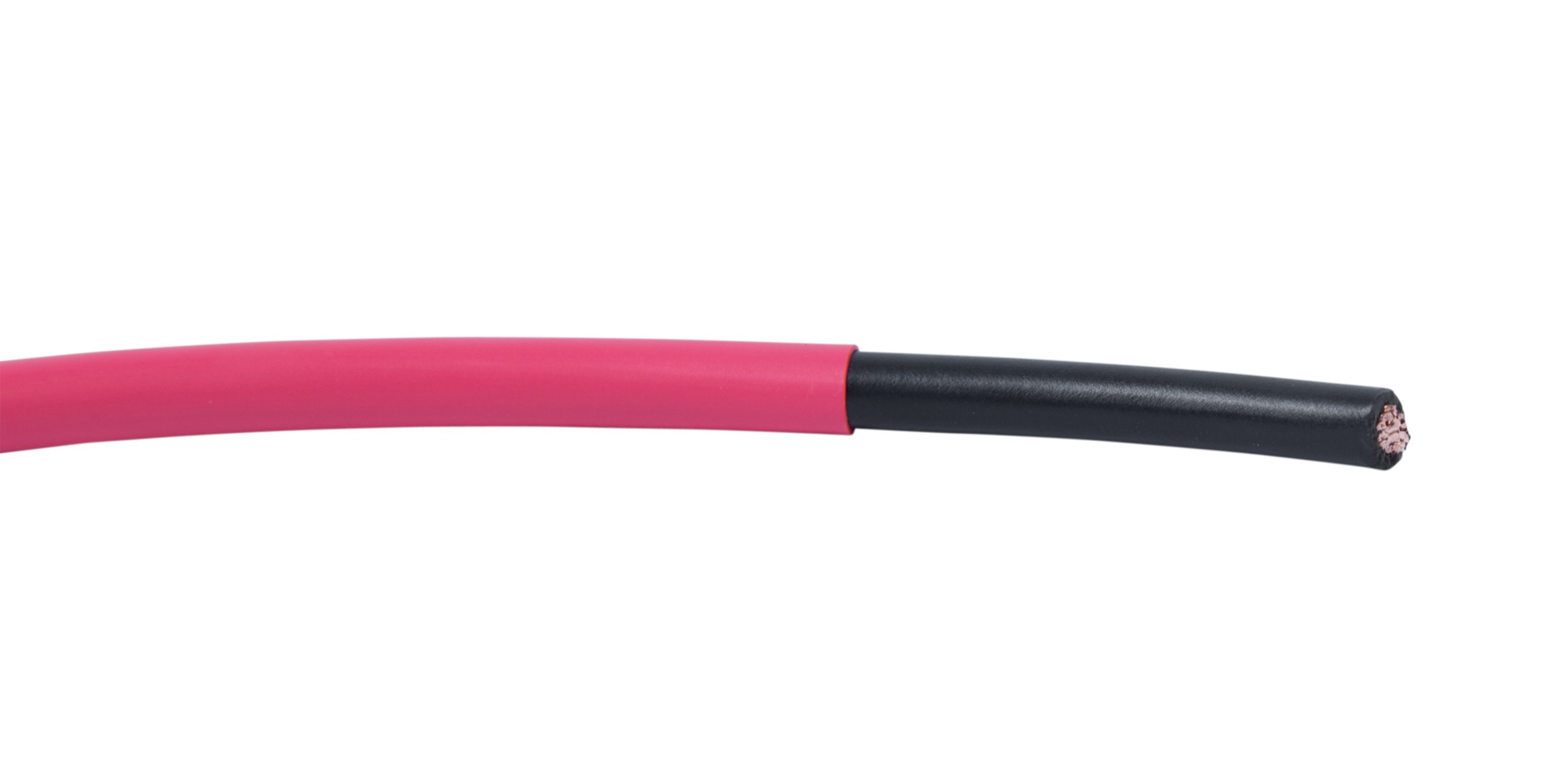

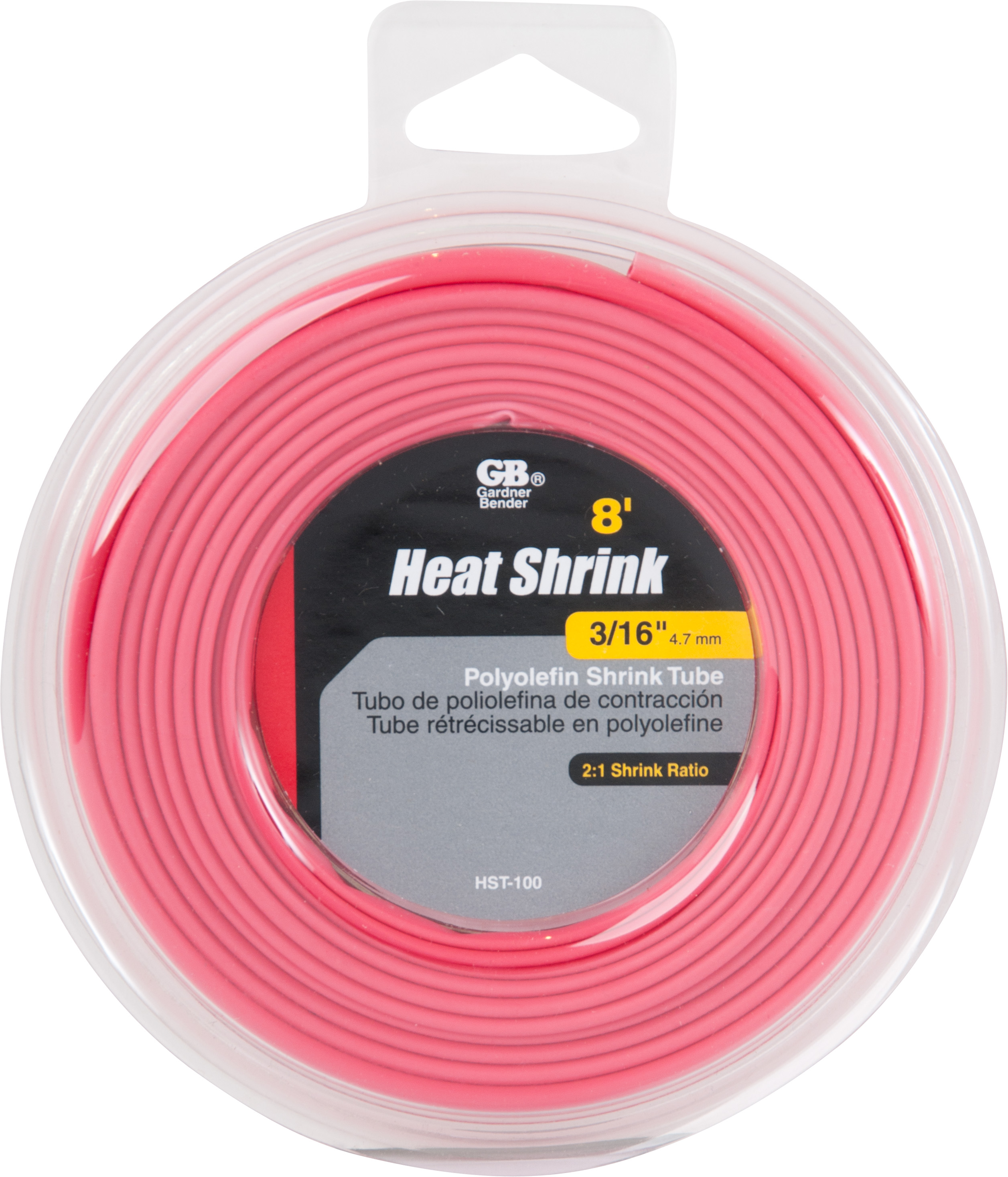

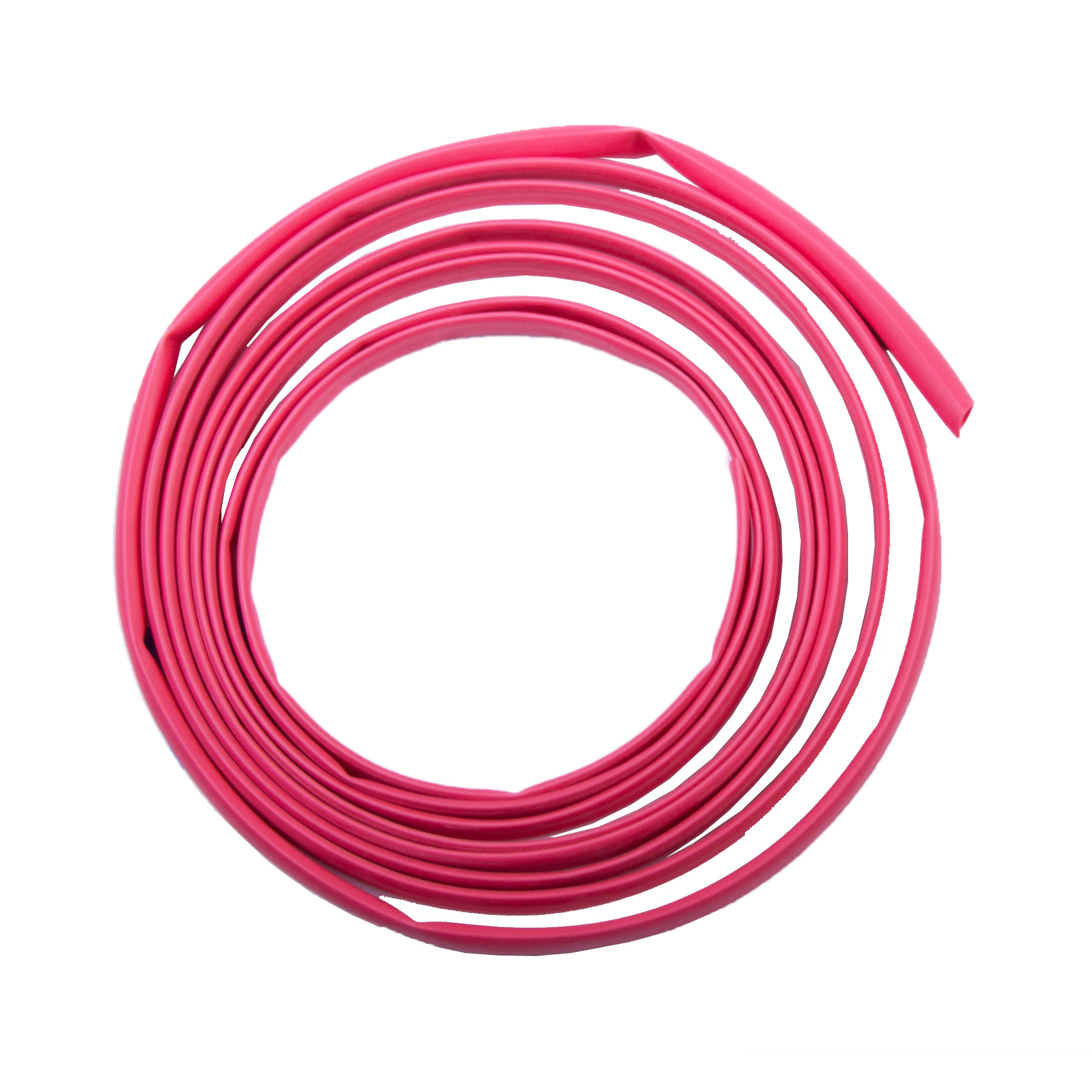

Polyolefin Heat Shrink Tubing, 2:1 Shrink Ratio 3/16 in. (4.7 mm) Dia. to 3/32 in (2mm) Dia., 8 Ft. Roll, Red, (1/Pkg)
Part # HST-100
Thin wall heat-shrink tubing is constructed from durable, flame-retardant black polyolefin which is resistant to both solvents and fluids making it More...
WHERE TO BUY
Thin wall heat-shrink tubing is constructed from durable, flame-retardant black polyolefin which is resistant to both solvents and fluids making it ideal for cable insulation, repair, marking or bundling. Heat shrink not only provides superior mechanical, abrasion and moisture protection but also strengthens connections and provides a comfortable gripping surface. As a result, professional and DIY multi-purpose uses include repairing cords (ranging from large appliance cords to small electronic cables that show wear at pull-out), covering tool and sporting equipment handles, and sealing rope for neat, unravel resistant ends. Finally, tubing capably resists common fluids and solvents. Upon heating to 120⁰ C (250⁰ F) the tubing begins to shrink but will not drip, crack or flow and is self-extinguishing within 30 seconds. Meets UL 224, 125⁰ C: CSA C22.2 No3 198.1, 125⁰ C; MIL-DTL-23053/5, Class 1 and 2, AMS 3636 and 3637; DEF STAN 59-79, Issue 3 Type 2a. Continuous operating temperature: -55⁰ C (-67⁰ F) to 135⁰ C (275⁰ F). Shrink temperature: 120⁰ C (250⁰ F) to 250⁰ C (480⁰ F). 600 V/Mil Dielectric strength
- Provides excellent protection from mechanical abrasion and moisture
- Flame-retardant polyolefin construction resists common fluids and solvents
- Repairs, strengthens and protects cable insulation to ensure strong connections
- Ideal for general purposes uses including adding perspiration-resistant grip to tool and sporting handles or sealing rope ends
- Excellent product to repair appliance, extension or small electronic cords that are exposing bare wires
- 600 V/Mil Dielectric strength
- 2:1 shrink ratio means tubing shrinks to 1/2 it's ID (inner diameter) size
- Self-extinguishing tubing will not drip, crack or flow when heated to shrink temperatures
- Shrink temperature: 120⁰ C (250⁰ F) to 250⁰ C (480⁰ F).
- Meets UL 224, 125 degrees Celsius; CSA C22.2 #198.1, 125 degrees Celsius; MIL-DTL-23053/5, Class 1 and 2, AMS 3636 and 3637; DEF STAN 59-79, Issue 3 Type 2a
- 3/16 in. pre-shrink diameter; 3/32 in. post-shrink diameter
| Warranty | Standard 1 Year |
| Includes | 1 roll heat shrink |
| RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
| Color | Red |
| Maximum Operating Temperature | 135⁰ C (275⁰ F) |
| Minimum Operating Temperature | -55⁰ C (-67⁰ F) |
| Water Resistance | Yes |
| Out of Package Height (in) | 0.1875 |
| Out of Package Height (metric) | 4.7 mm |
| Out of Package Width (in) | 0.1875 |
| Out of Package Width (metric) | 4.7 mm |
| Out of Package Length/Depth (in) | 96 |
| Out of Package Depth (metric) | 2438.4 mm |
| Each in Package Height (in) * | 0.5 |
| Each in Package Width (in) * | 4.5 |
| Each in Package Length/Depth (in) * | 5.5 |
| Each in Package Weight (lbs) * | 0.069 |
| Inner Pack Weight (lbs) * | 0.69 |
