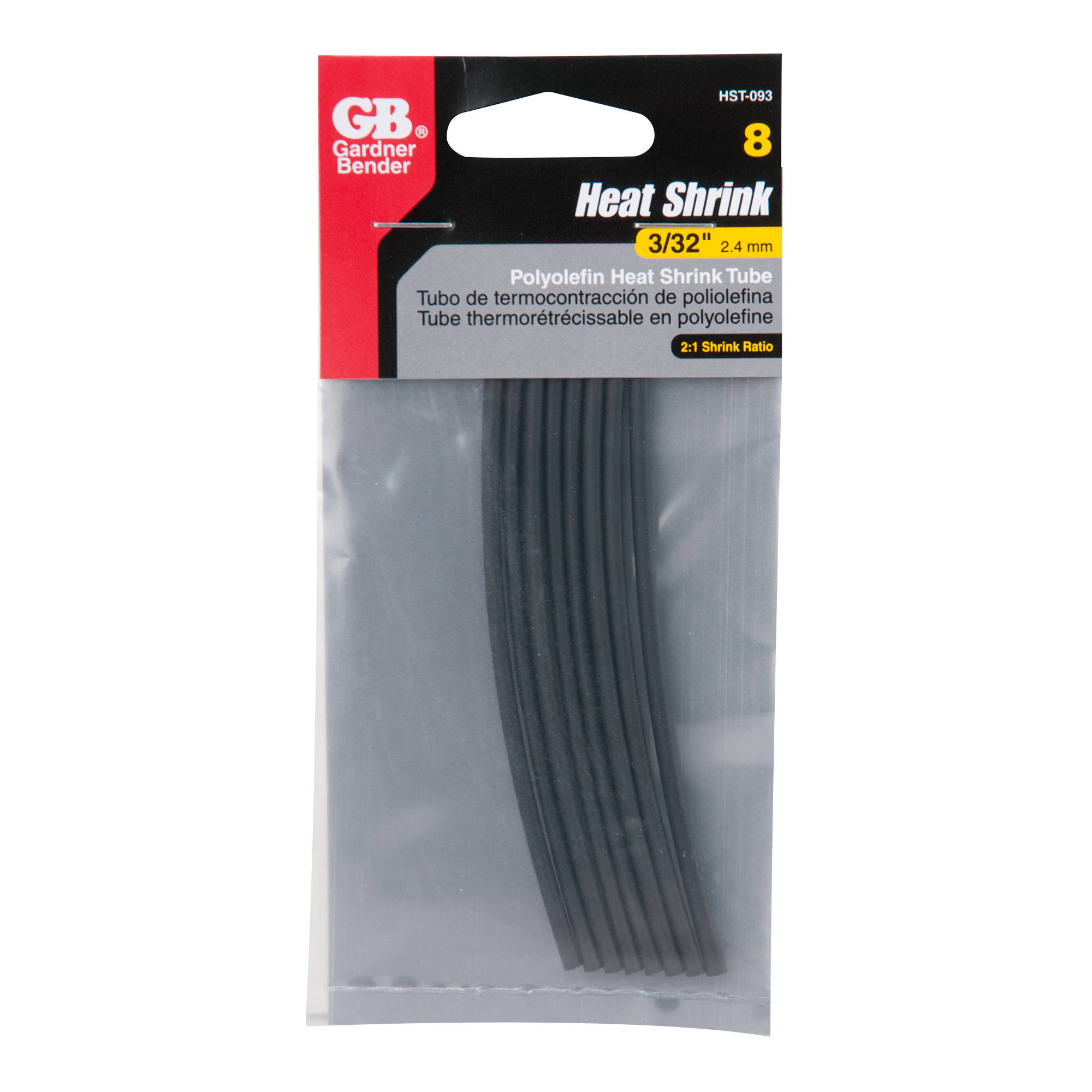

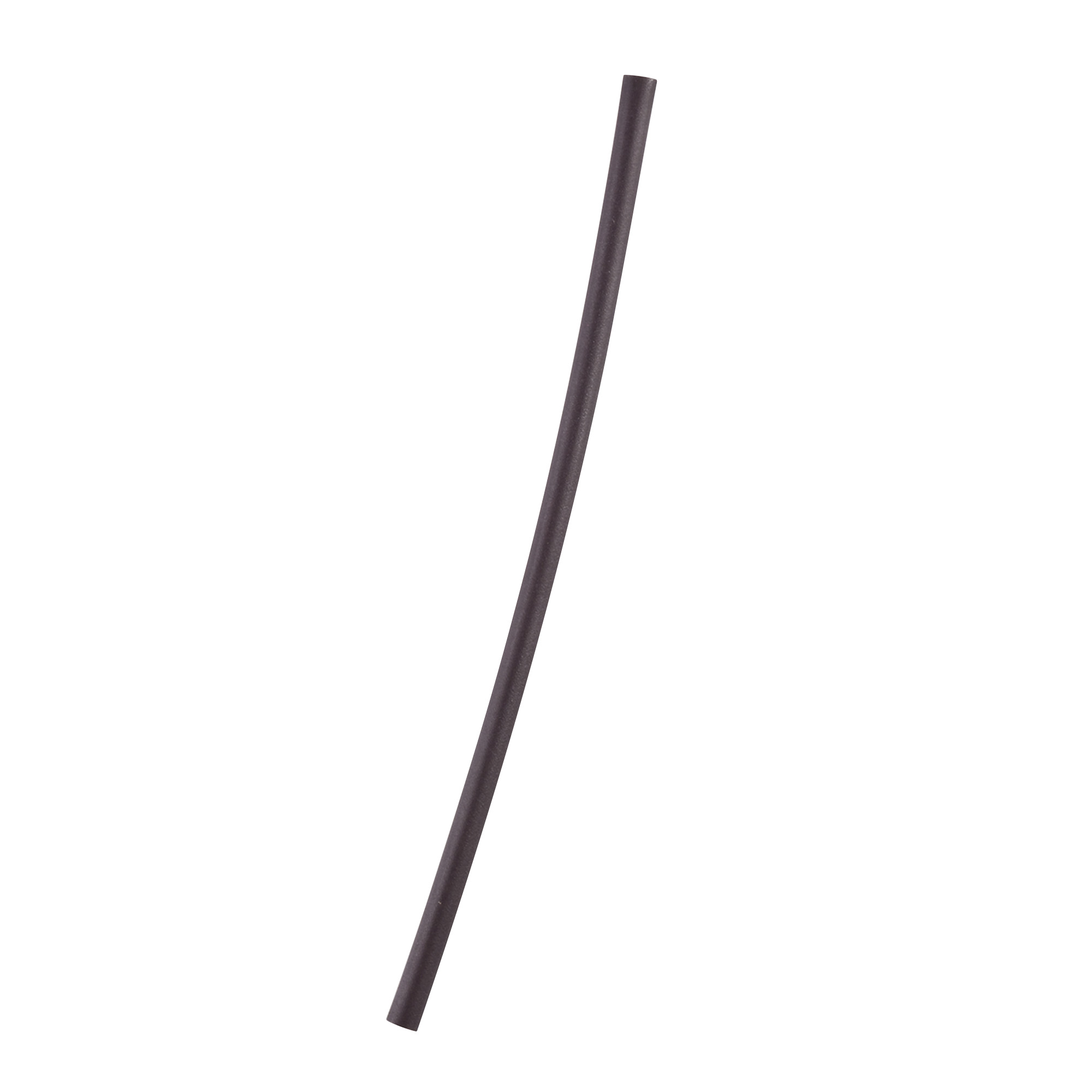

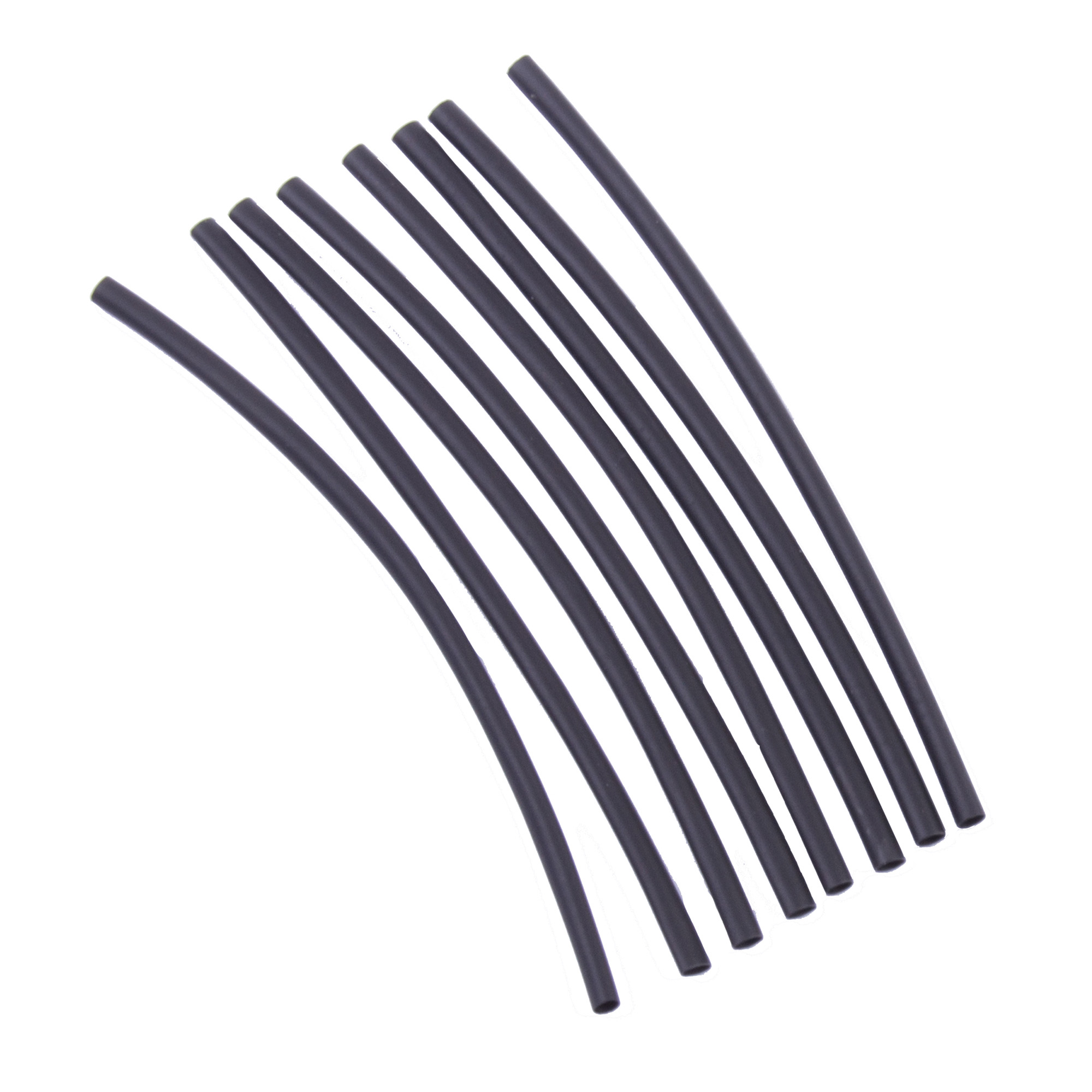

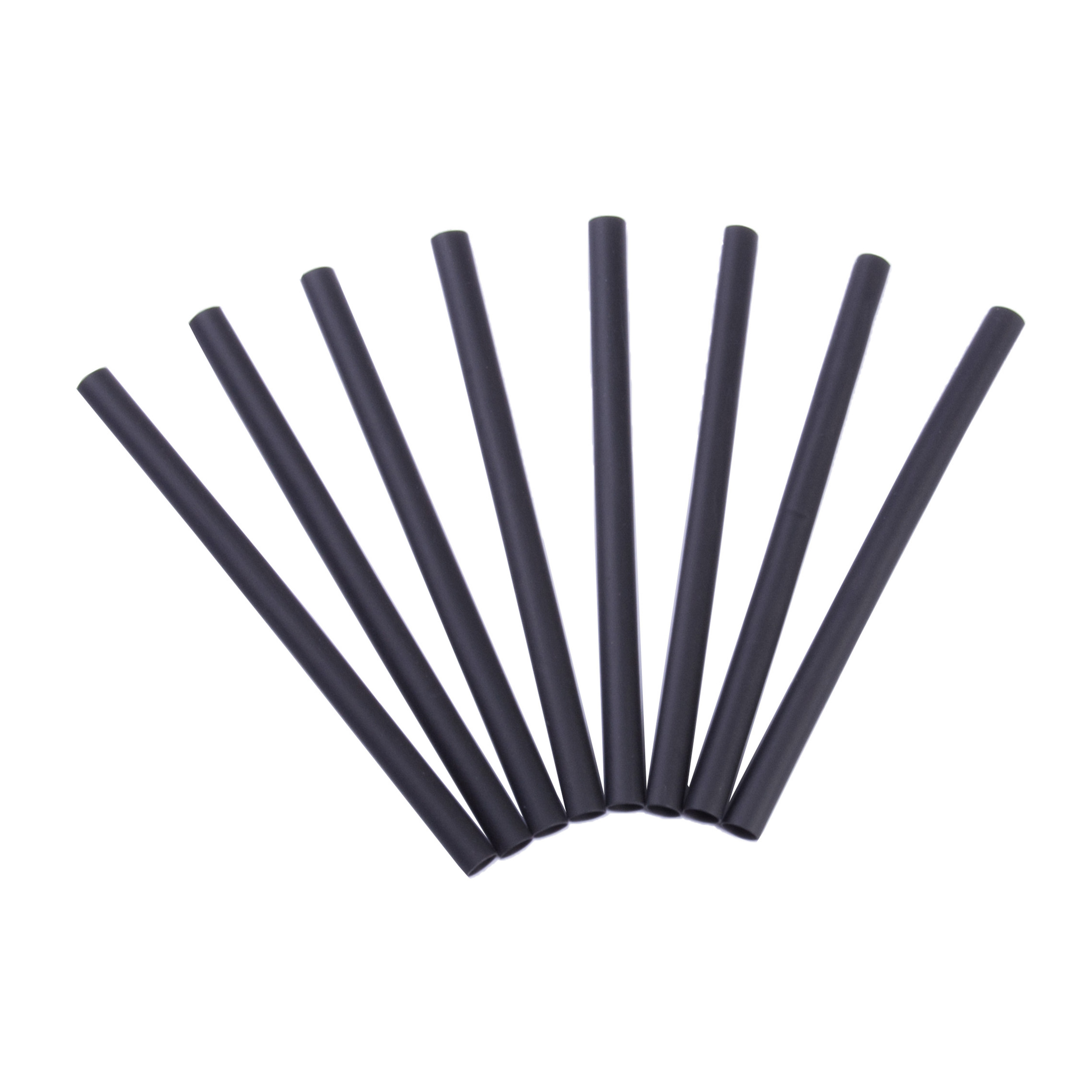

3/32 in. Black Polyolefin Heat Shrink Tubing (8-Pack)
Part # HST-093
Use the Gardner Bender 3/32 in. Black Polyolefin Heat Shrink Tubing (8-Pack) for cable insulation, marking and bundling. The flame-retardant More...
WHERE TO BUY
Use the Gardner Bender 3/32 in. Black Polyolefin Heat Shrink Tubing (8-Pack) for cable insulation, marking and bundling. The flame-retardant polyolefin construction resists common fluids and solvents.
- Provides excellent protection from mechanical abrasion and moisture
- Flame-retardant polyolefin construction resists common fluids and solvents
- Repairs, strengthens and protects cable insulation to ensure strong connections
- Ideal for general purposes uses including adding perspiration-resistant grip to tool and sporting handles or sealing rope ends
- Excellent product to repair appliance, extension or small electronic cords that are exposing bare wires
- 600 V/Mil Dielectric strength
- 2:1 shrink ratio means tubing shrinks to 1/2 it's ID (inner diameter) size
- Self-extinguishing tubing will not drip, crack or flow when heated to shrink temperatures
- Shrink temperature: 120 deg C (250 deg F) to 250 deg C (480 deg F).
- Meets UL 224, 125 degrees Celsius; CSA C22.2 #198.1, 125 degrees Celsius; MIL-DTL-23053/5, Class 1 and 2, AMS 3636 and 3637; DEF STAN 59-79, Issue 3 Type 2a
- 3/32 in. pre-shrink diameter; 3/64 in. post-shrink diameter
| Warranty | Standard 1 Year |
| Includes | 8 heat shrink tubes |
| RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
| Color | Black |
| Maximum Operating Temperature | 135⁰ C (275⁰ F) |
| Minimum Operating Temperature | -55⁰ C (-67⁰ F) |
| Water Resistance | Yes |
| Out of Package Height (in) | 0.094 |
| Out of Package Height (metric) | 2.4 mm |
| Out of Package Width (in) | 0.094 |
| Out of Package Width (metric) | 2.4 mm |
| Out of Package Length/Depth (in) | 4 |
| Out of Package Depth (metric) | 101.6 mm |
| Each in Package Height (in) * | 5.5 |
| Each in Package Width (in) * | 2.75 |
| Each in Package Length/Depth (in) * | 0.5 |
| Each in Package Weight (lbs) * | 0.025 |
| Inner Pack Weight (lbs) * | 0.25 |
