SPST Toggle Switch, 1/Each
Part # GSW-18
The Gardner Bender 8/4 Amp Toggle Switch with Faceplate has an on/off faceplate for ease of use. The switch is designed for medium-duty applications More...
WHERE TO BUY

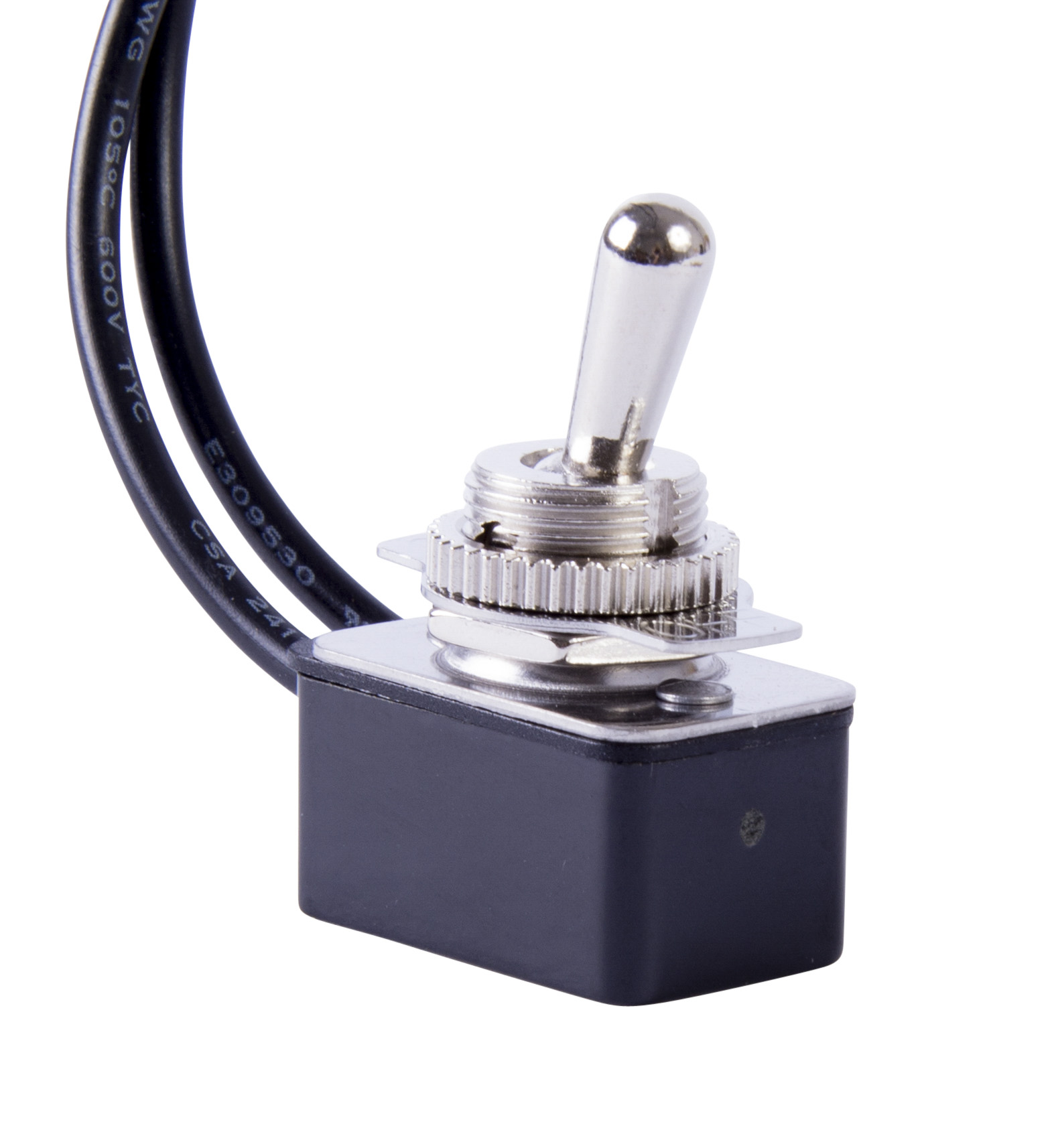

The Gardner Bender 8/4 Amp Toggle Switch with Faceplate has an on/off faceplate for ease of use. The switch is designed for medium-duty applications and has single-pole, single-throw (SPST) on-off circuitry. The switch is compatible with standard 1/2 in. mounting holes and features 6 in. wire leads for a wide range of uses.
- Use for medium-duty applications
- On-OFF SPST circuitry
- 8 Amp /125 Volt AC and 4 Amp /250 Volt AC or 1/3 HP and 10 Amp /125 Volt AC
- 6 in. wire leads
- UL listed
- Compatible with standard 1/2 in. mounting holes
- On-Off faceplate for easy use
- Bat Lever
| Warranty | One Year |
| RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
| Color | Chrome |
| Out of Package Height (in) | 0.7 |
| Out of Package Width (in) | 0.6 |
| Out of Package Length/Depth (in) | 0.99 |
| Out of Package Weight (oz) | 1.44 |
| Each in Package Height (in) * | 0.8 |
| Each in Package Width (in) * | 3 |
| Each in Package Length/Depth (in) * | 1.3 |
| Each in Package Weight (lbs) * | 0.074 |
| Inner Pack Weight (lbs) * | 0.37 |
