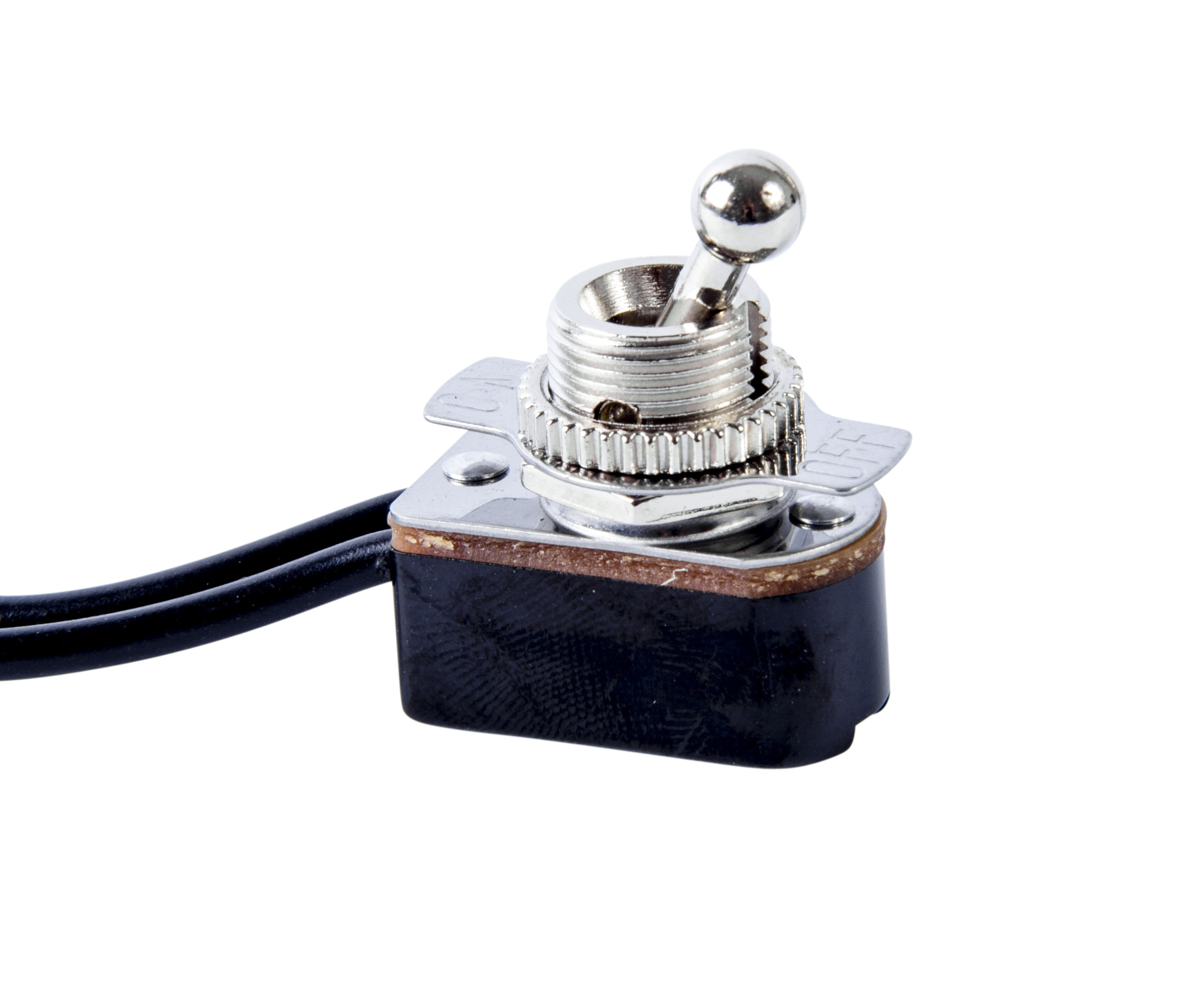

SPST Toggle Switch
Part # GSW-125
Gardner Bender has a versatile toggle switch family with multiple position configurations. Toggle switches feature flat terminals and are available in More...
WHERE TO BUY
Gardner Bender has a versatile toggle switch family with multiple position configurations. Toggle switches feature flat terminals and are available in four different actuations; SPST, SPDT, DPST and DPDT. Flat terminal heavy duty toggle switches meet the standards of today's automotive, marine and industrial applications, and are great for electrical connections.
- Available in single pole.
- Perfect for industrial equipment or emergency lighting
- 1/2" mounting hole required.
- Specifications: 10 A, 227 V SC / 20 A, 125 V AC; 75 Degrees Celsius max. Temp rating. Standard nut size (15/32" -32")
| Warranty | One Year |
| RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
| Color | Chrome |
| Out of Package Height (in) | 0.75 |
| Out of Package Width (in) | 0.46 |
| Out of Package Length/Depth (in) | 0.89 |
| Out of Package Weight (oz) | 24 |
| Each in Package Height (in) * | 4.75 |
| Each in Package Width (in) * | 2.75 |
| Each in Package Length/Depth (in) * | 1 |
| Each in Package Weight (lbs) * | 0.074 |
| Inner Pack Weight (lbs) * | 0.37 |
