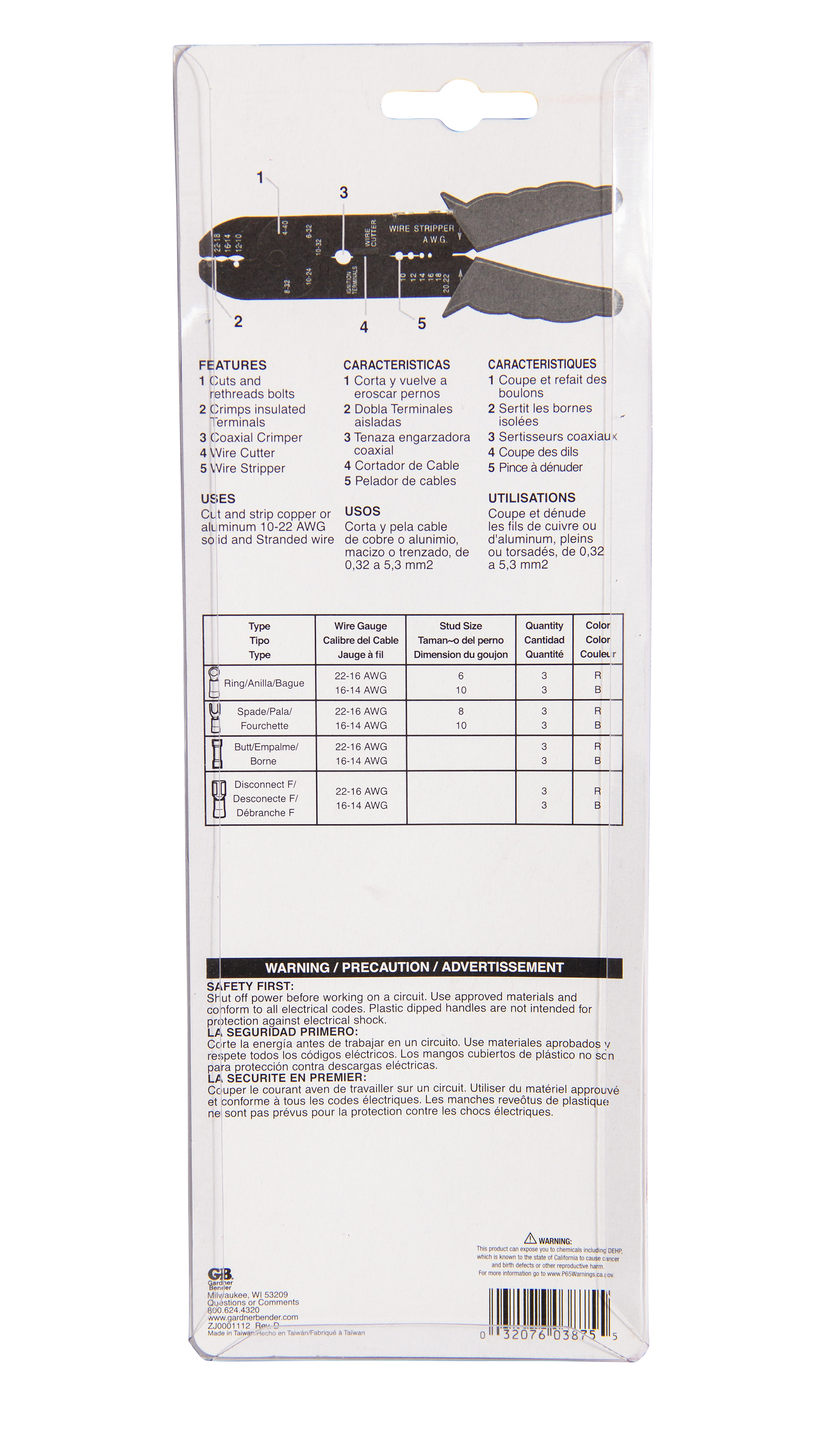

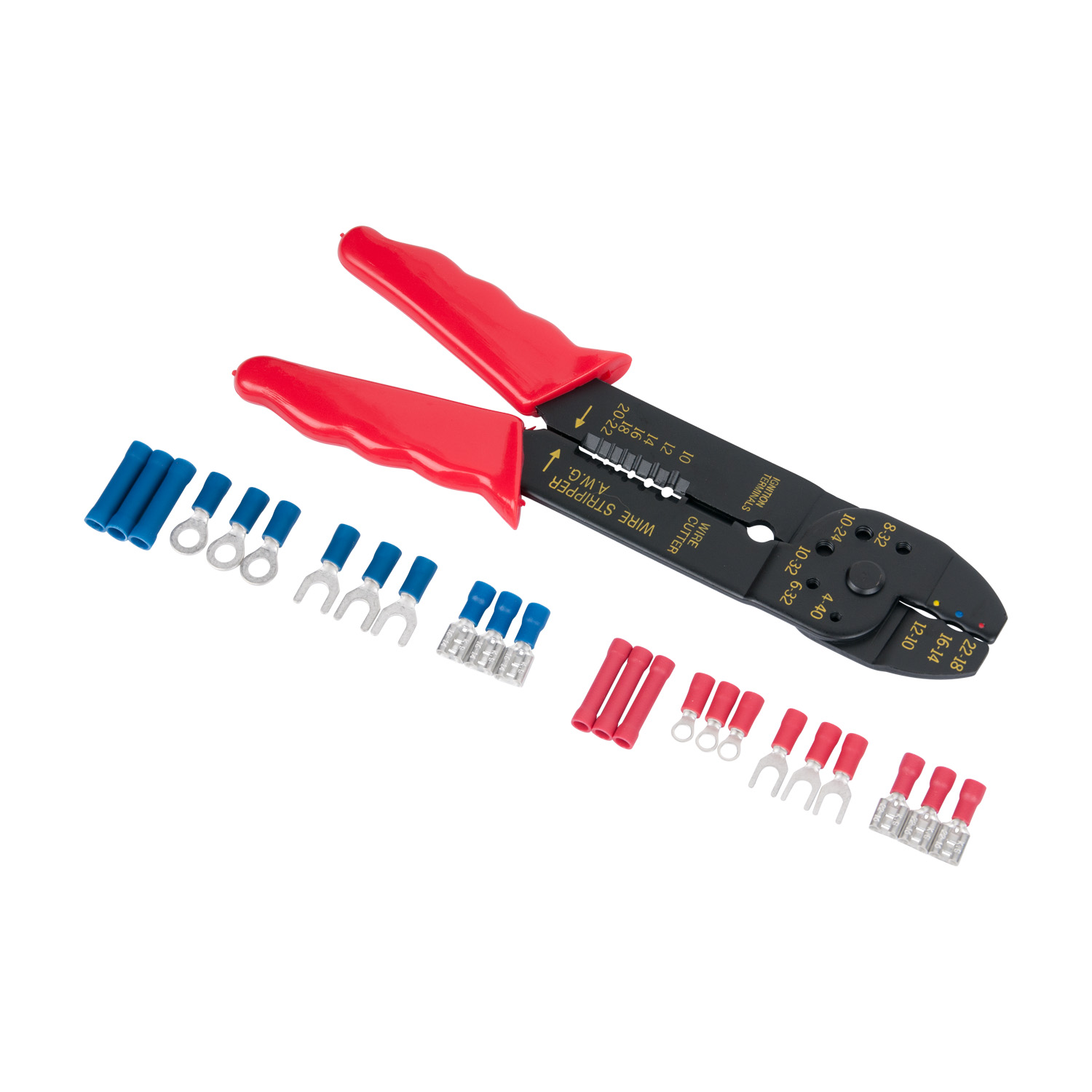

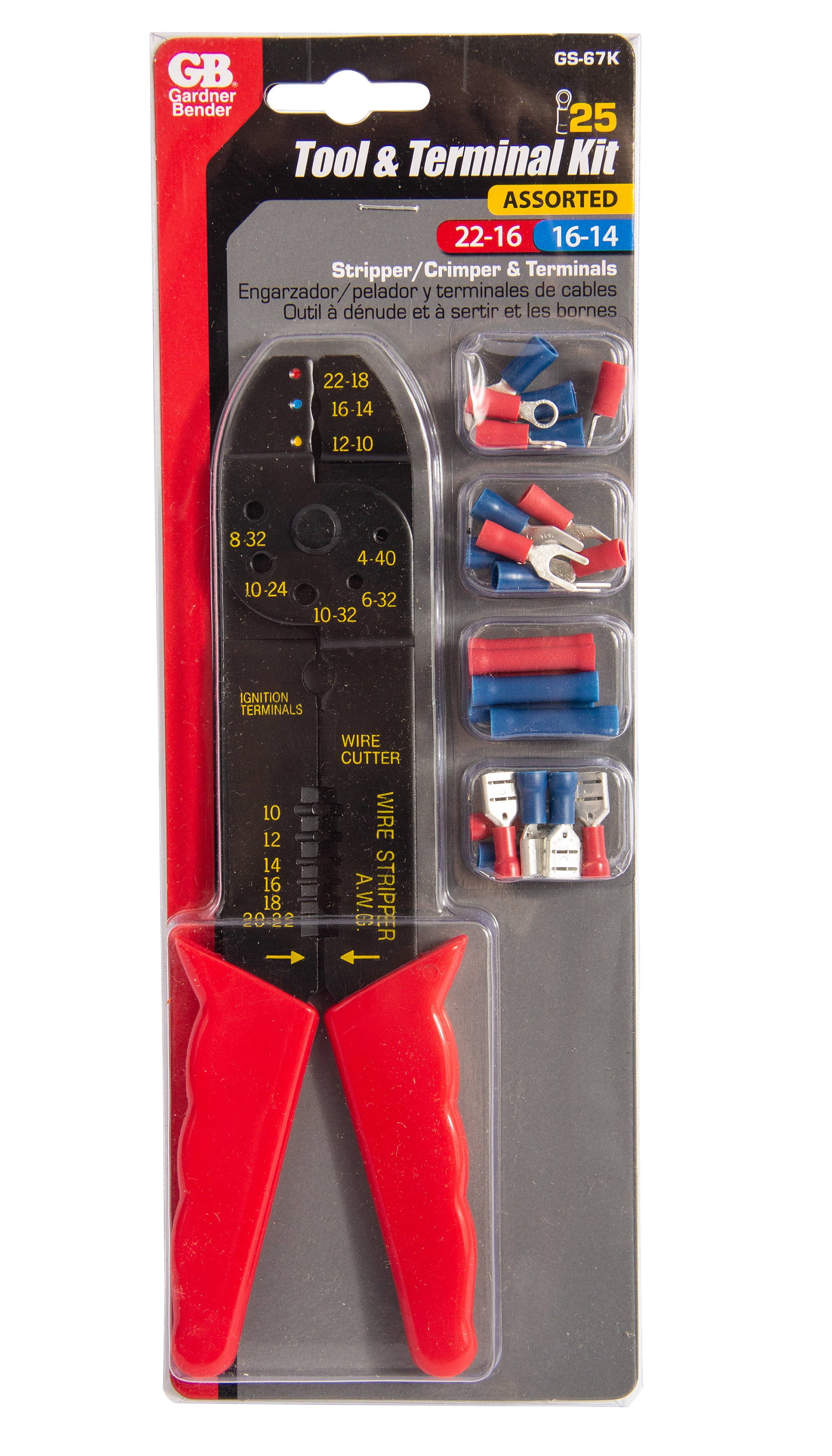

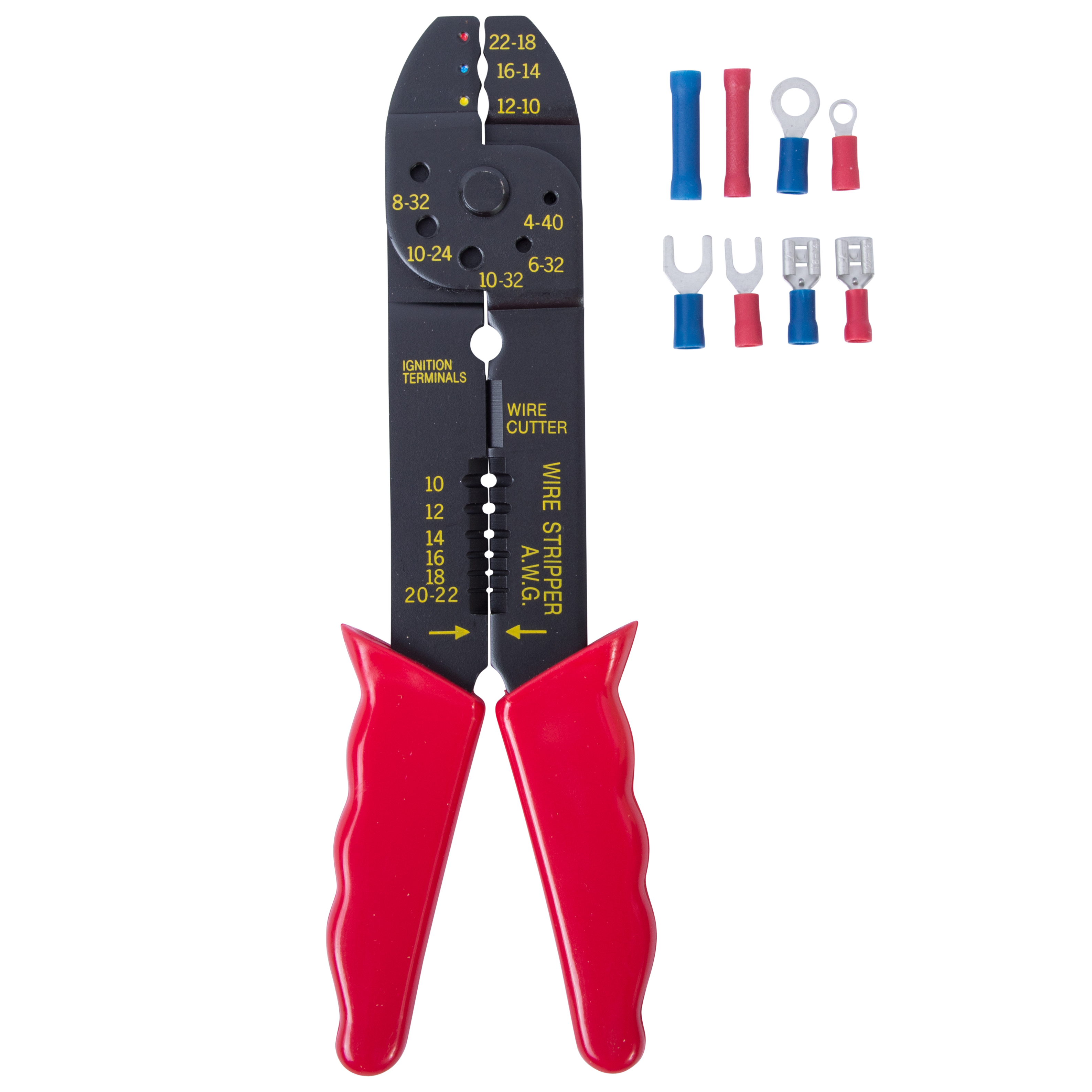

Stripper and Crimper Tool Kit with Ring and Spade Terminals, Butt Splices, Female Disconnects, 22-14 AWG (2 mm²)
Part # GS-67K
This tool and terminal kit includes a handy tool that cuts and strips copper or aluminum solid and stranded wire, crimps coax, and cuts and rethreads More...
WHERE TO BUYThis tool and terminal kit includes a handy tool that cuts and strips copper or aluminum solid and stranded wire, crimps coax, and cuts and rethreads bolts. Kit also includes the most popular sizes and types of terminals for jobs around the house and under the hood. These quick and reliable crimp-type ring and spade terminals, female disconnects, and butt splices feature vinyl insulated barrels and are color coded by wire gauge size. Terminals are cULus listed and rated at 600 V. Kit includes 3 each ring and spade terminals, butt splices and female disconnects in 22-16 AWG (Red) and 3 each in 16-14 AWG (Blue) for a total of 24 terminals and one tool all packaged in a handy reusable organizing case.
- Tool cuts and strips copper or aluminum 10-22 AWG solid and stranded wire
- Tool crimps coax, and cuts and rethreads bolts
- Bolt Cutting: 4-40, 6-32, 8-32, 10-32, 10-24
- Terminals offer a temperature rating of 167 degrees Fahrenheit (75 degrees Celsius)
- Quick and reliable crimp-type terminals feature vinyl insulated barrels
- Kit includes 3 each ring and spade terminals, butt splices and female disconnects in 22-16 AWG (Red) and 3 each in 16-14 AWG (Blue)
- Terminals are cULus listed and rated at 600 V
Warranty | One Year |
RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
Color | Red |
Each in Package Height (in) * | 0.5 |
Each in Package Width (in) * | 9.6 |
Each in Package Length/Depth (in) * | 2.2 |
Each in Package Weight (lbs) * | 0.544 |
Inner Pack Weight (lbs) * | 3.04 |
