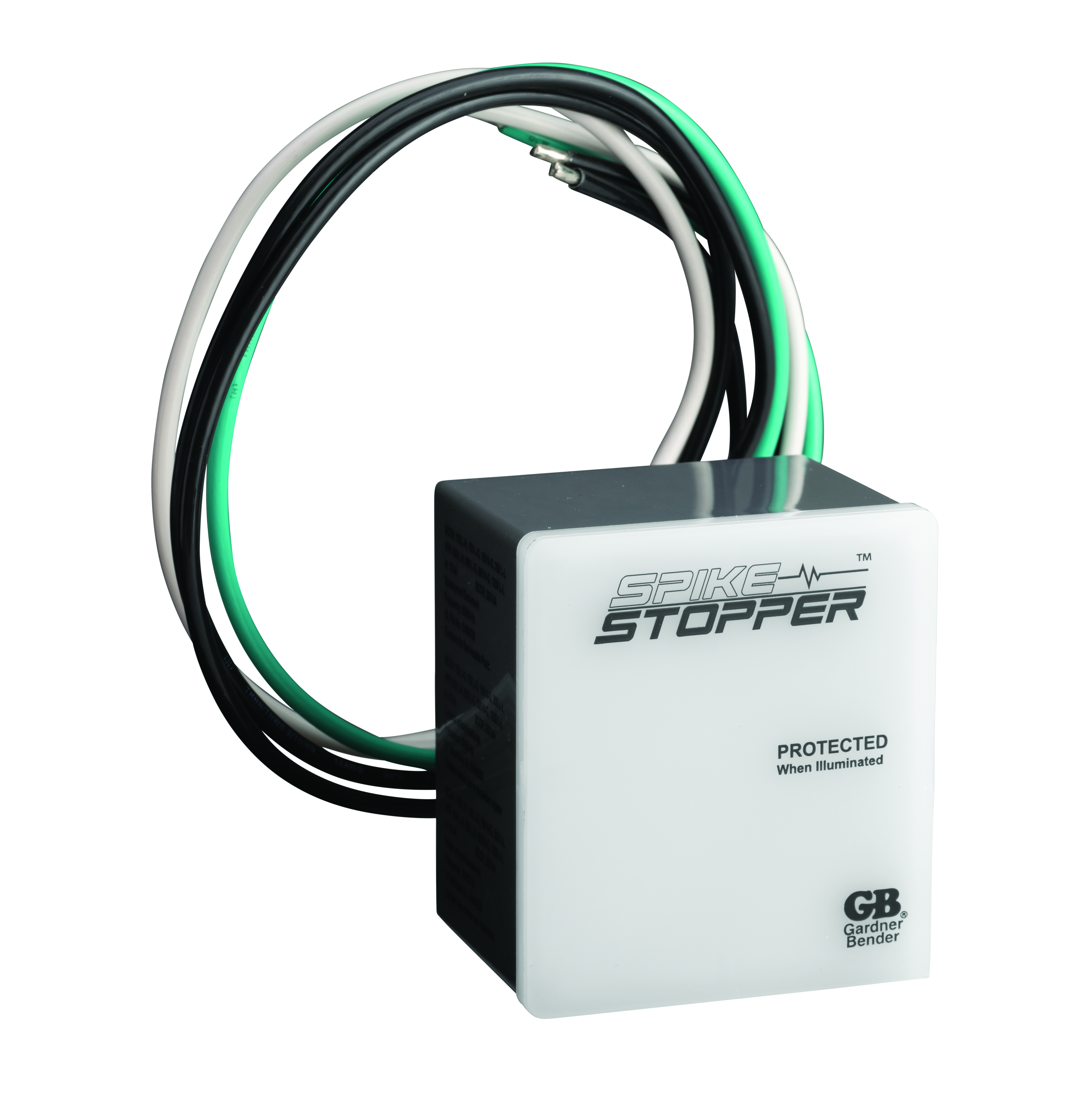

Whole Home Surge Protection Device
Part # ER3M-1025-1S1
Protect appliances from power surges including: washers, dryers, stoves, refrigerators, electronics, HVAC, and more. Installed at Main Electrical More...
WHERE TO BUY

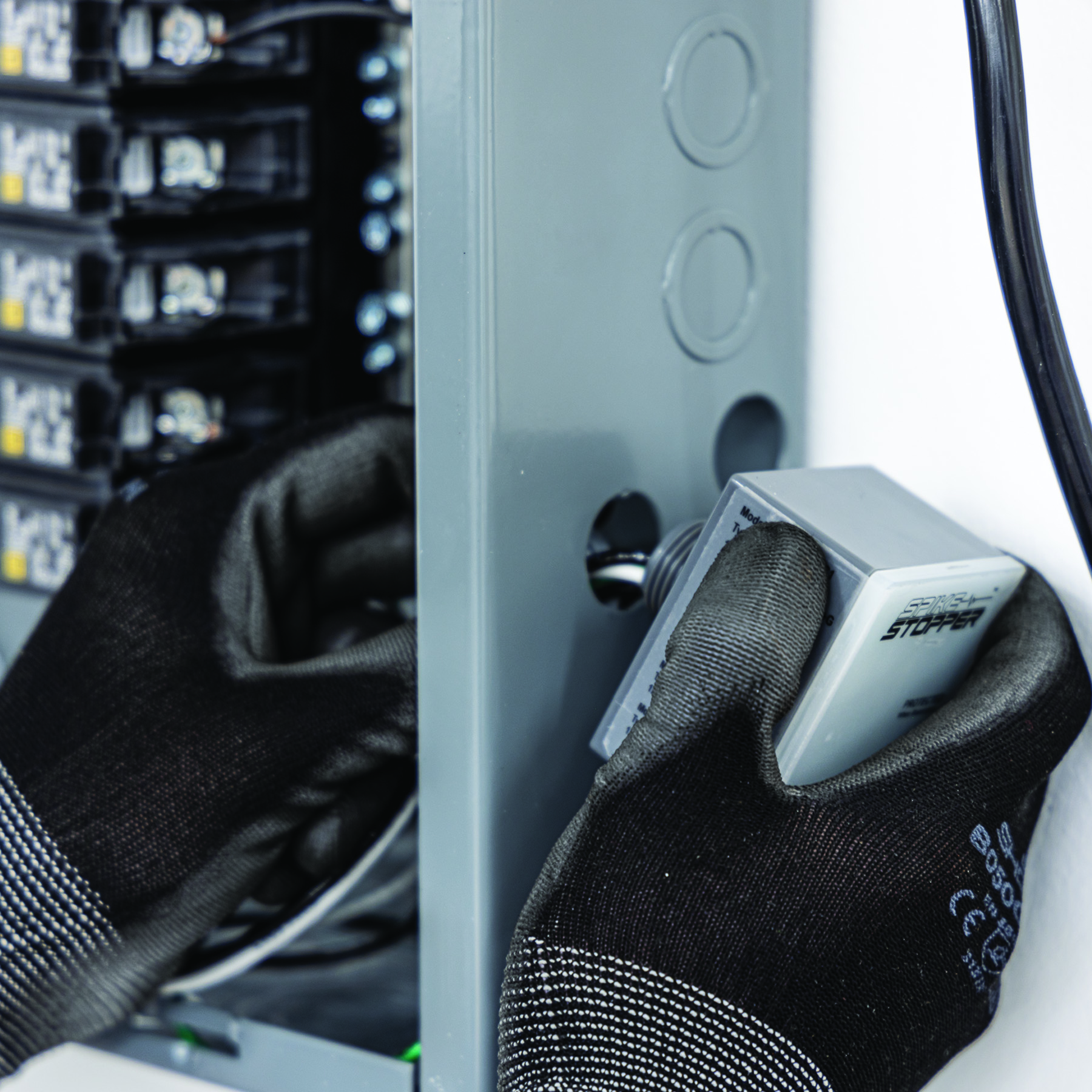

Protect appliances from power surges including: washers, dryers, stoves, refrigerators, electronics, HVAC, and more. Installed at Main Electrical Panel. Multiple Residential Installation Locations: electrical panels and disconnects, condensing units, furnaces, heat pumps, irrigation and pool pumps.
- 75 kA Total Protection
- Voltage: 120/240VAC, Split Phase, 3W+G
- Universal 4-wire installation
- 10 kA Short-Circuit Current Rating
- Type 1/Type 2 SPD
- MCOV: 150 L-N, 300 L-L
- VPR: 600 L-N, 1200 L-L
- In: 10 kA
- Frequency: 50-60Hz
- Temperature: -35°C to 40°C
- NEMA 4X Indoor/Outdoor Rated Enclosure
- 5-year warranty - $75,000 equipment protection
- cUL Listed
- Joule rating: 1,020 J total
| Each in Package Height (in) * | 2 |
| Each in Package Width (in) * | 1.2 |
| Each in Package Length/Depth (in) * | 3 |
| Each in Package Weight (lbs) * | 1 |
| Inner Pack Weight (lbs) * | 4 |
