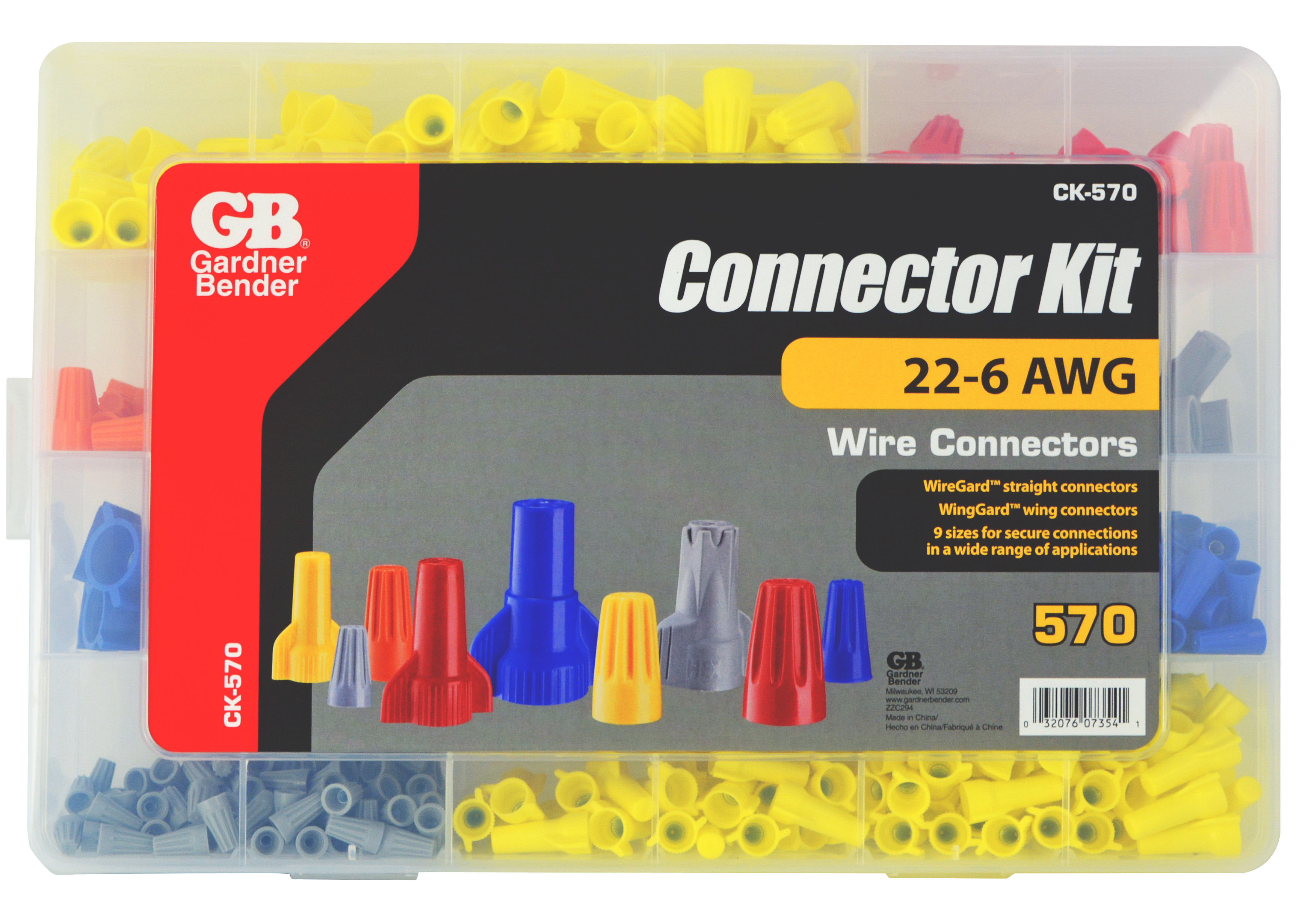

WireGard and WingGard Wire Connector Kit, 22-6 AWG, 570 pieces
Part # CK-570

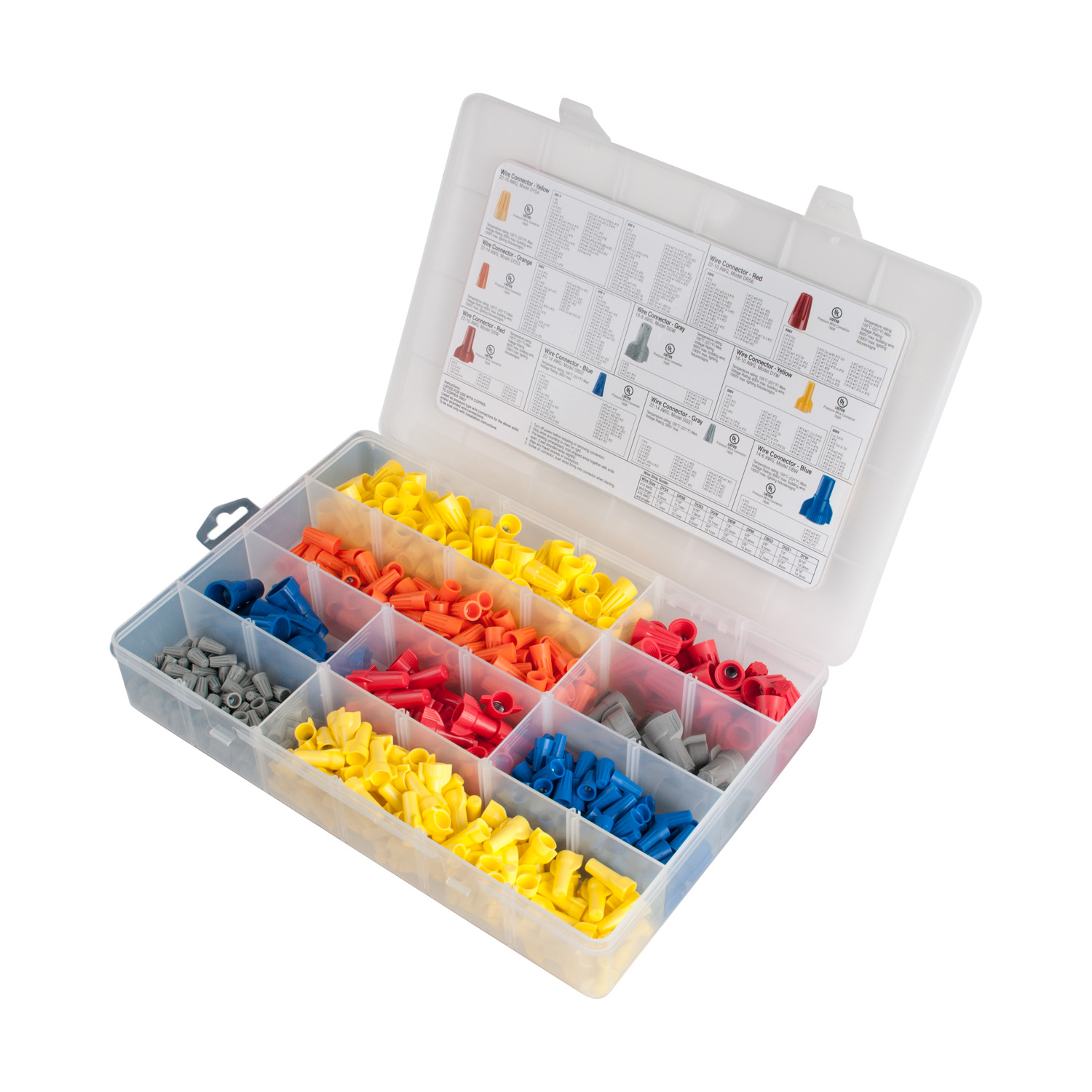

Multi-purpose wire connector kit includes: 101 (22-14) AWG Grey Wire Connectors; 101 (22-14) AWG Orange Wire Connectors; 101 (22-10) AWG Yellow Wire More...

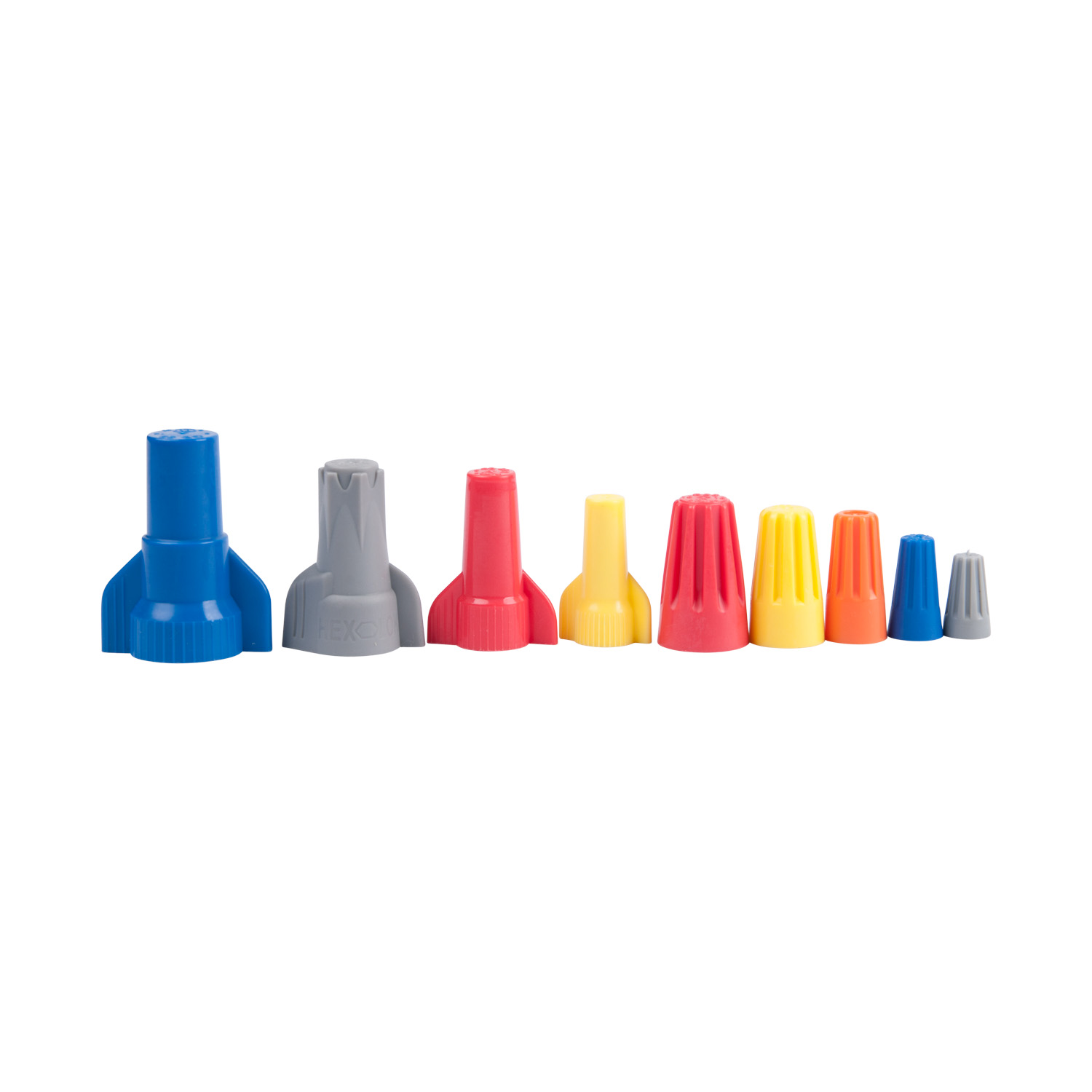

WHERE TO BUYMulti-purpose wire connector kit includes: 101 (22-14) AWG Grey Wire Connectors; 101 (22-14) AWG Orange Wire Connectors; 101 (22-10) AWG Yellow Wire Connectors; 25 (22-10) AWG Red Wire Connectors; 101 (22-14) AWG Blue Wire Connectors; 10 (18-8) AWG Grey Wing-Style Wire Connectors; 25 (22-10) AWG Red Wing-Style Wire Connectors; 10 (14-6) AWG Blue Wing-Style Wire Connectors; 101 (18-10) AWG Yellow Wing-Style Wire Connectors. WingGard and WireGard twist-on wire connectors offer unsurpassed quality and durability for general purpose applications requiring the connection of 2 or more copper wires. WireGard connectors feature a straight type Polypropylene shell with side knurling for an easy grip while WingGard connectors feature a high-leverage, easy-on, wing-type design. The swept wings provide added turning torque and reduce the strain of multiple applications. Both types feature a thermoplastic shell which shields against environmental extremes and resists chemical action from hydrocarbons, diluted acid or alkaline solutions while the long skirt prevents exposure of bare wire. The zinc-plated square wire-spring inside instantly adjusts to the shape and size of the splice upon insertion ensuring a long-lasting connection that resists corrosion and exceeds UL standards for dielectric strength and wire pullout force. Flame-retardant properties resist heat distortion up to 105 C (221 F). Color coded for quick and easy size selection. Use for: Air conditioners, ceiling fans, doorbells, indoor lighting, switches, thermostats, ballasts, large and small appliances
- Rated at 600V max in building wire and at 1000V max in lighting, fixtures/luminaries and signs
- Flame-retardant polyolefin construction resists common fluids and solvents
- Kit contains 101 (22-14) AWG Grey Wire Connectors; 101 (22-14) AWG Orange Wire Connectors; 101 (22-10) AWG Yellow Wire Connectors; 25 (22-10) AWG Red Wire Connectors; 101 (22-14) AWG Blue Wire Connectors; 10 (18-8) AWG Grey Wing-Style Wire Connectors; 25 (22-10) AWG Red Wing-Style Wire Connectors; 10 (14-6) AWG Blue Wing-Style Wire Connectors; 101 (18-10) AWG Yellow Wing-Style Wire Connectors
- Copper to copper connections only
Warranty | Standard 1 year |
RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
Color | Multi |
Out of Package Height (in) | 8.75 |
Out of Package Width (in) | 2 |
Out of Package Length/Depth (in) | 13 |
Each in Package Height (in) * | 13.25 |
Each in Package Width (in) * | 8.75 |
Each in Package Length/Depth (in) * | 2.25 |
Each in Package Weight (lbs) * | 2.936 |
Inner Pack Weight (lbs) * | 14.68 |
