1 Gang New Work Round Ceiling Electrical Box 20 Cubic Inches

Part # BOX-NC20

GB's new work single gang ceiling electrical boxes are constructed of high performance thermoplastic for greater performance in high temperature More...

WHERE TO BUY

GB's new work single gang ceiling electrical boxes are constructed of high performance thermoplastic for greater performance in high temperature applications and provide a structural base for ceiling mount fixtures. They are designed and listed for use with non-metallic sheathed cable in accordance with Article 314 of the National Electric Code. Captive nails are included for easy mounting.

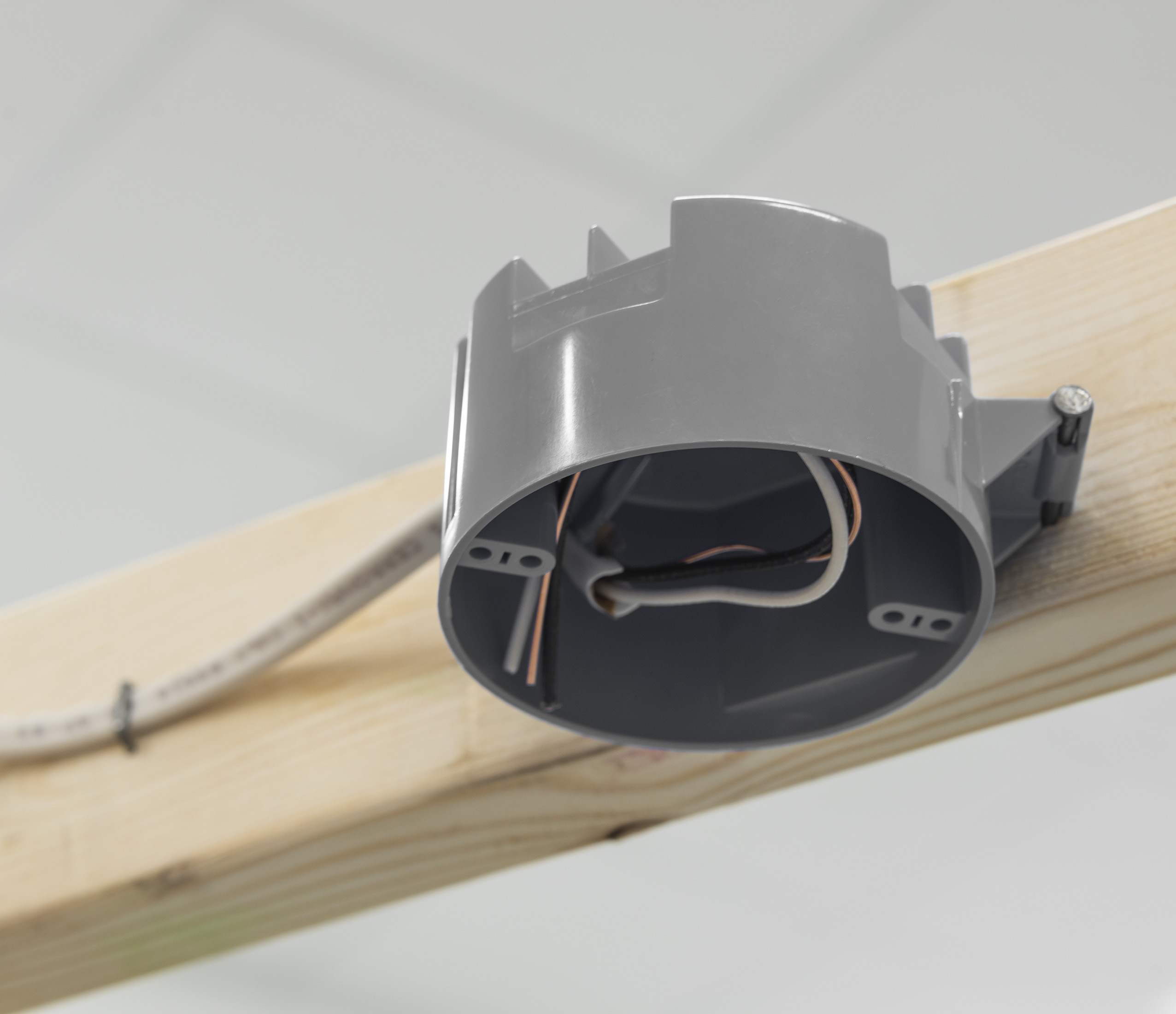

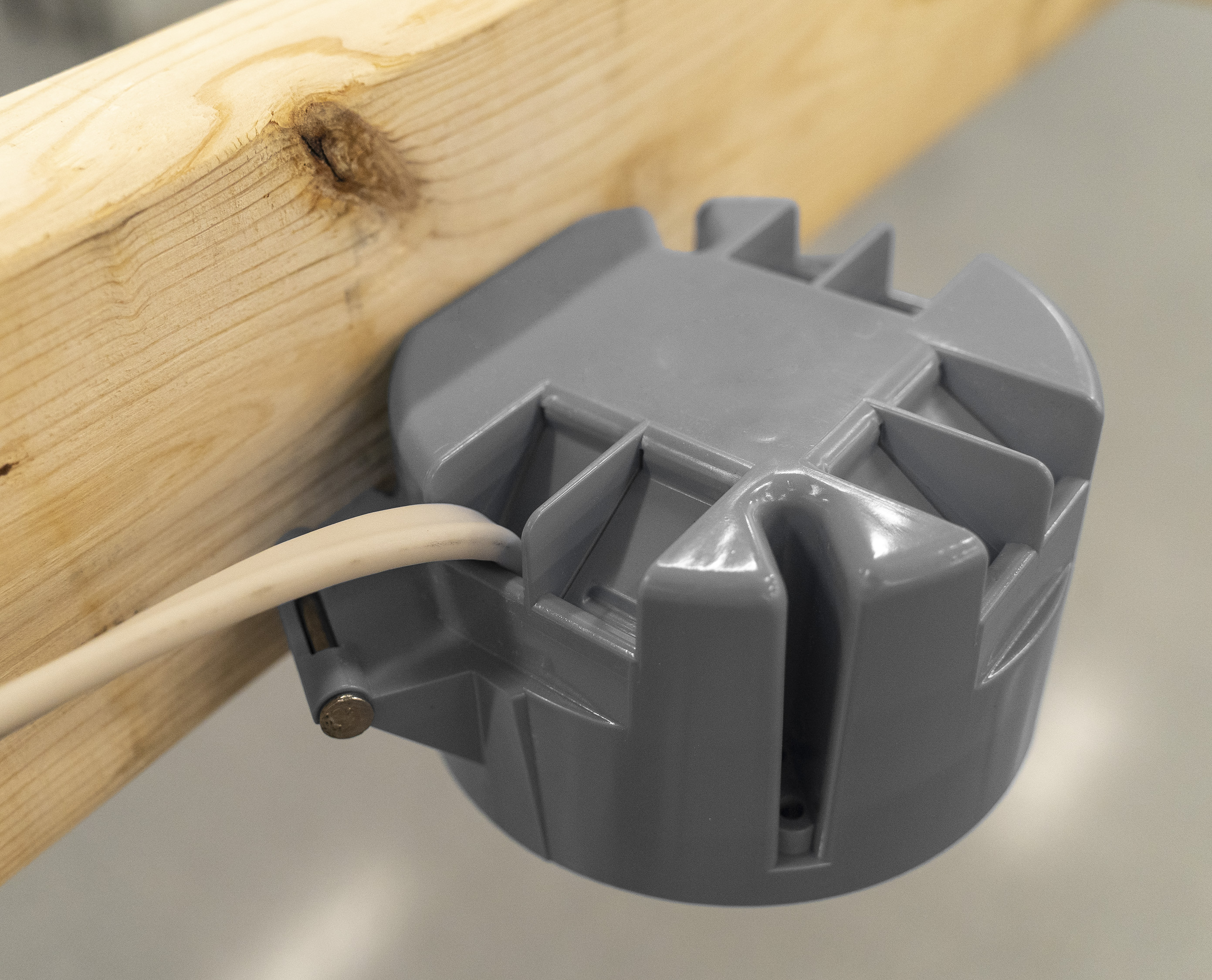

  • For use in new work applications where the ceiling is not enclosed
  • Durable high performance thermoplastic construction for additional performance
  • Includes captive nails for easy installation
  • Includes 6 NM cable clamps for sheathed cable
  • Suitable for light fixture installation up to 10 lbs
  • 20 Cubic inch capacity
  • UL listed to 514C

Each in Package Height (in) * 4
Each in Package Width (in) * 4
Each in Package Length/Depth (in) * 2.31
Each in Package Weight (lbs) * 0.1286
Inner Pack Weight (lbs) * 19.0259
