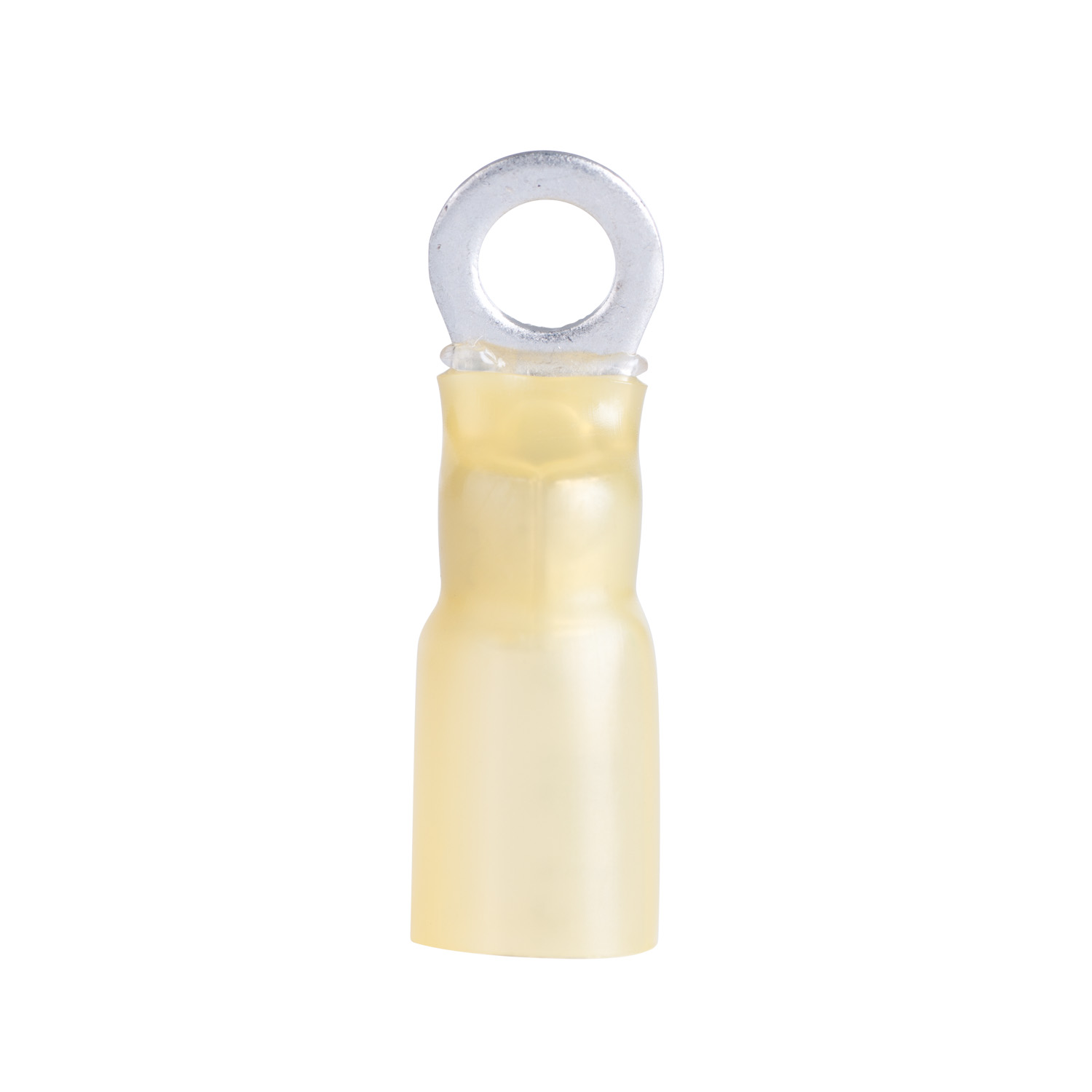

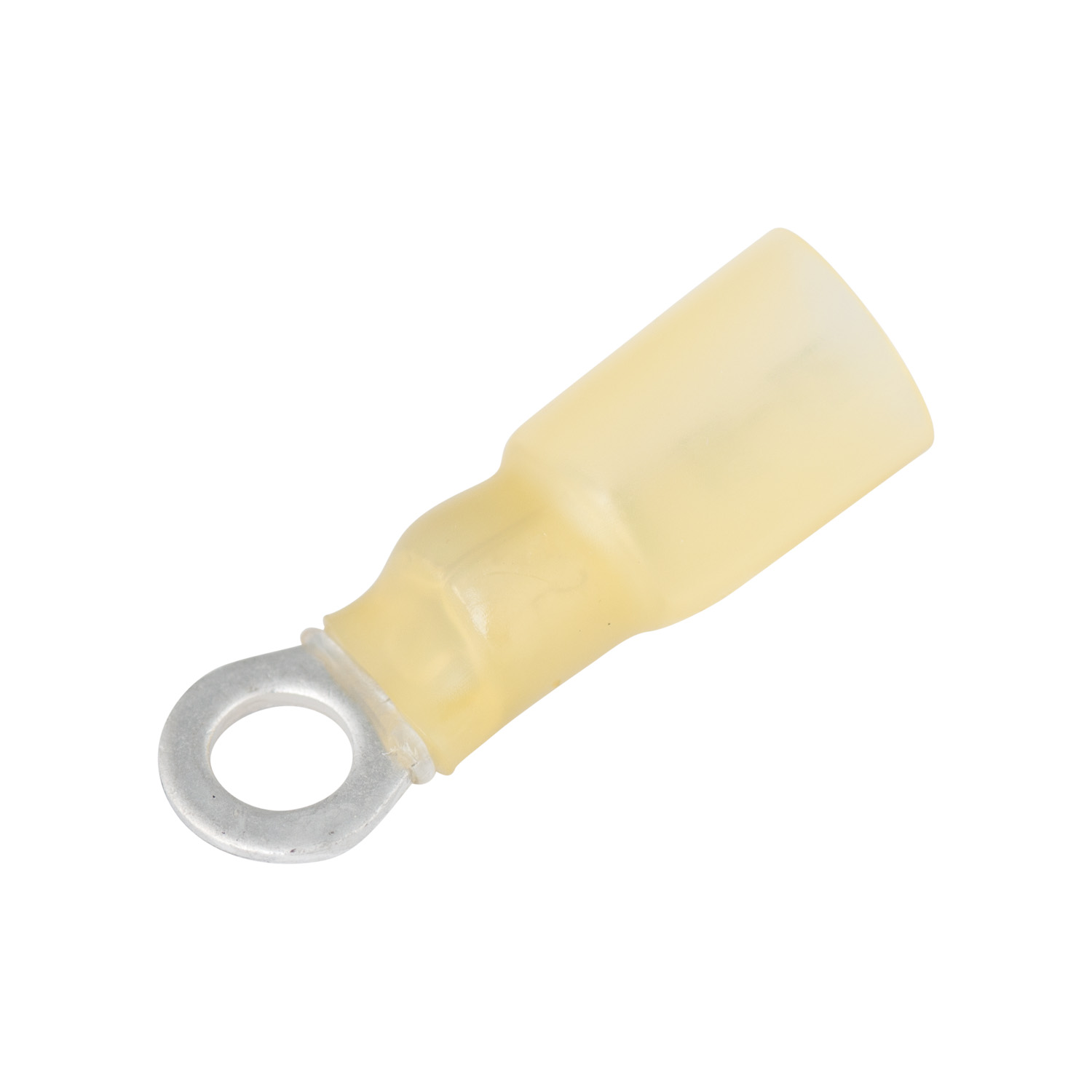

#12-#10 AWG (5 mm²) GB Xtreme Ring Terminal (8 to 10 Stud)
Part # AMT-4106
The GB Xtreme Terminals are constructed with Heat Shrink insulation. Heat Shrink Insulation is an an adhesive that melts over a wire connection to More...
WHERE TO BUYThe GB Xtreme Terminals are constructed with Heat Shrink insulation. Heat Shrink Insulation is an an adhesive that melts over a wire connection to create a waterproof seal. The terminal insulates and protects connections from wire pullout, moisture intrustion, and abrasion. It also resists salt water, oil, gasoline, and other environmental contaminants.
- Adhesive lined to waterproof and environmentally seal connections when crimped and heated
- Rated at 600 Volt Max Temperature rating: -67 deg -221 deg F (-55 deg -105 deg C)
- 2.5:1 heat shrink ratio
- Resists salt water, oil, gasoline and other environmental contaminants
- Heat-activated adhesive melts and flows to create a seal
- Resists salt water, oil, gasoline and other environmental contaminants
- UL and CSA safety listings
- Use to help insulate and protect connections from wire pullout, moisture intrusion and abrasion
Warranty | Standard 1 Year |
RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
Color | Yellow |
Out of Package Height (in) | 0.2 |
Out of Package Width (in) | 0.2 |
Out of Package Length/Depth (in) | 0.87 |
Out of Package Weight (oz) | 0.16 |
Each in Package Height (in) * | 4 |
Each in Package Width (in) * | 1.6 |
Each in Package Length/Depth (in) * | 0.88 |
Each in Package Weight (lbs) * | 0.045 |
Inner Pack Weight (lbs) * | 0.45 |
