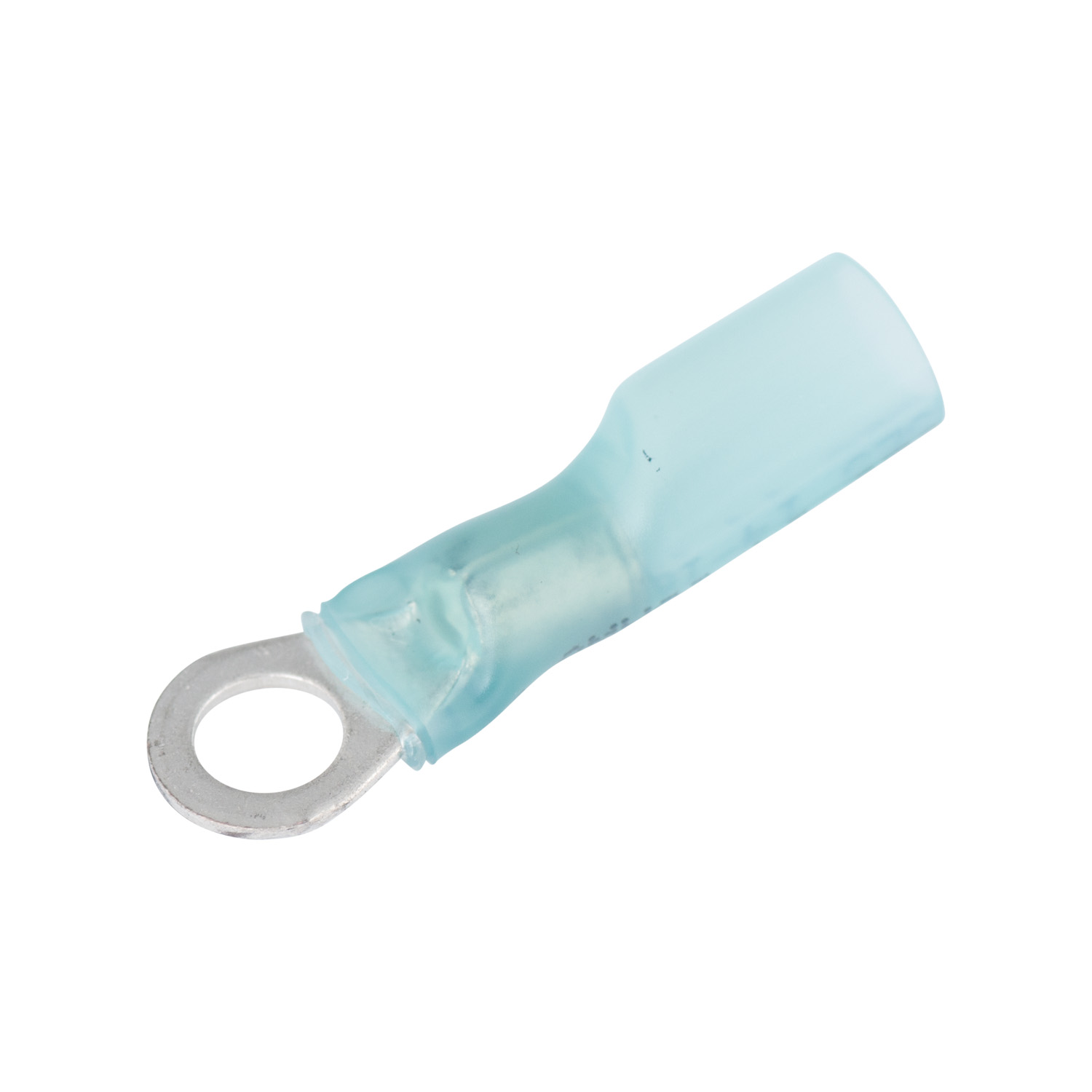

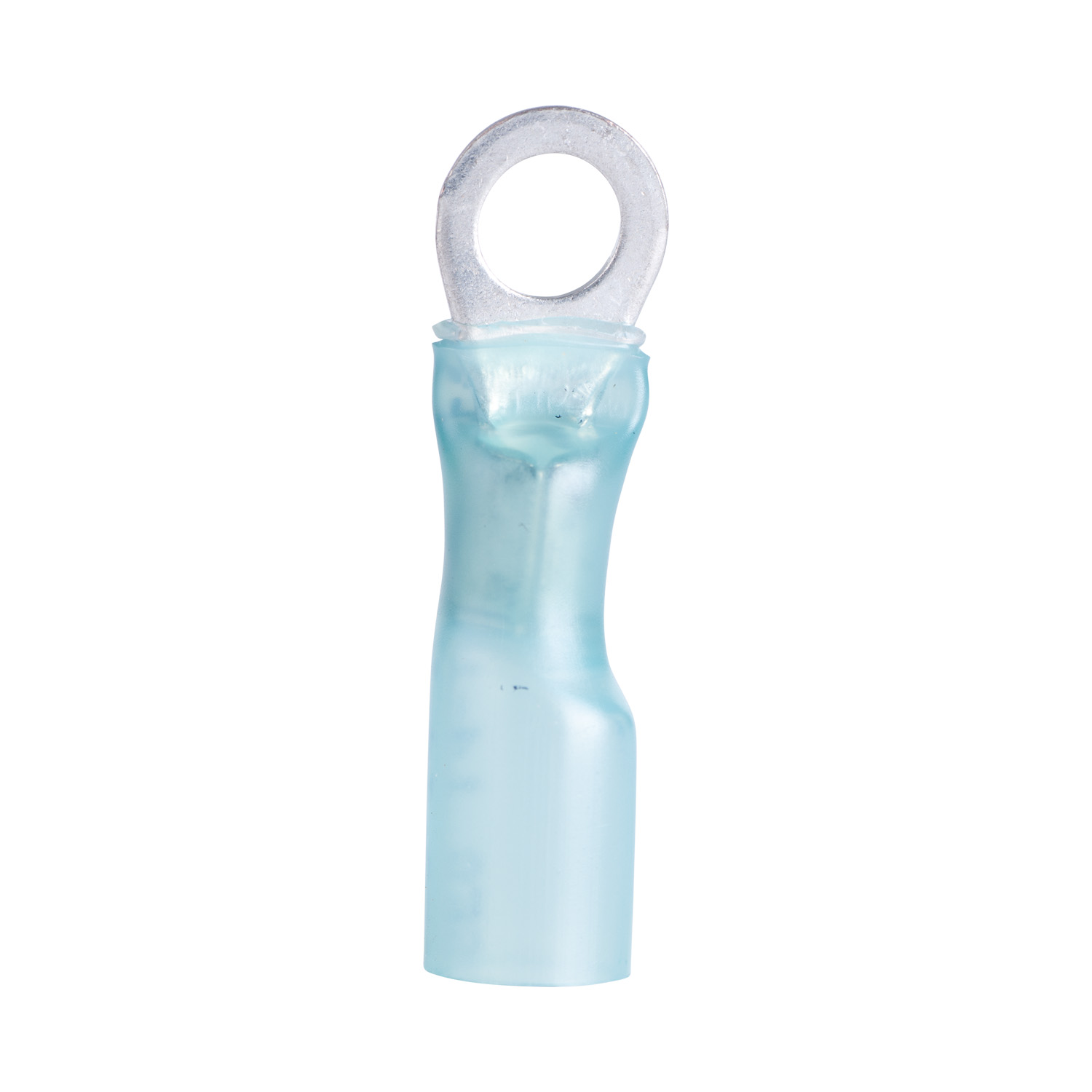

#16-#14 AWG (2 mm²) GB Xtreme Ring Terminal (8 to 10 Stud)
Part # AMT-4103
Dependable and easy to use, Gardner Bender terminals (and wiring accessories) offer the high quality and application flexibility that professionals More...
WHERE TO BUY

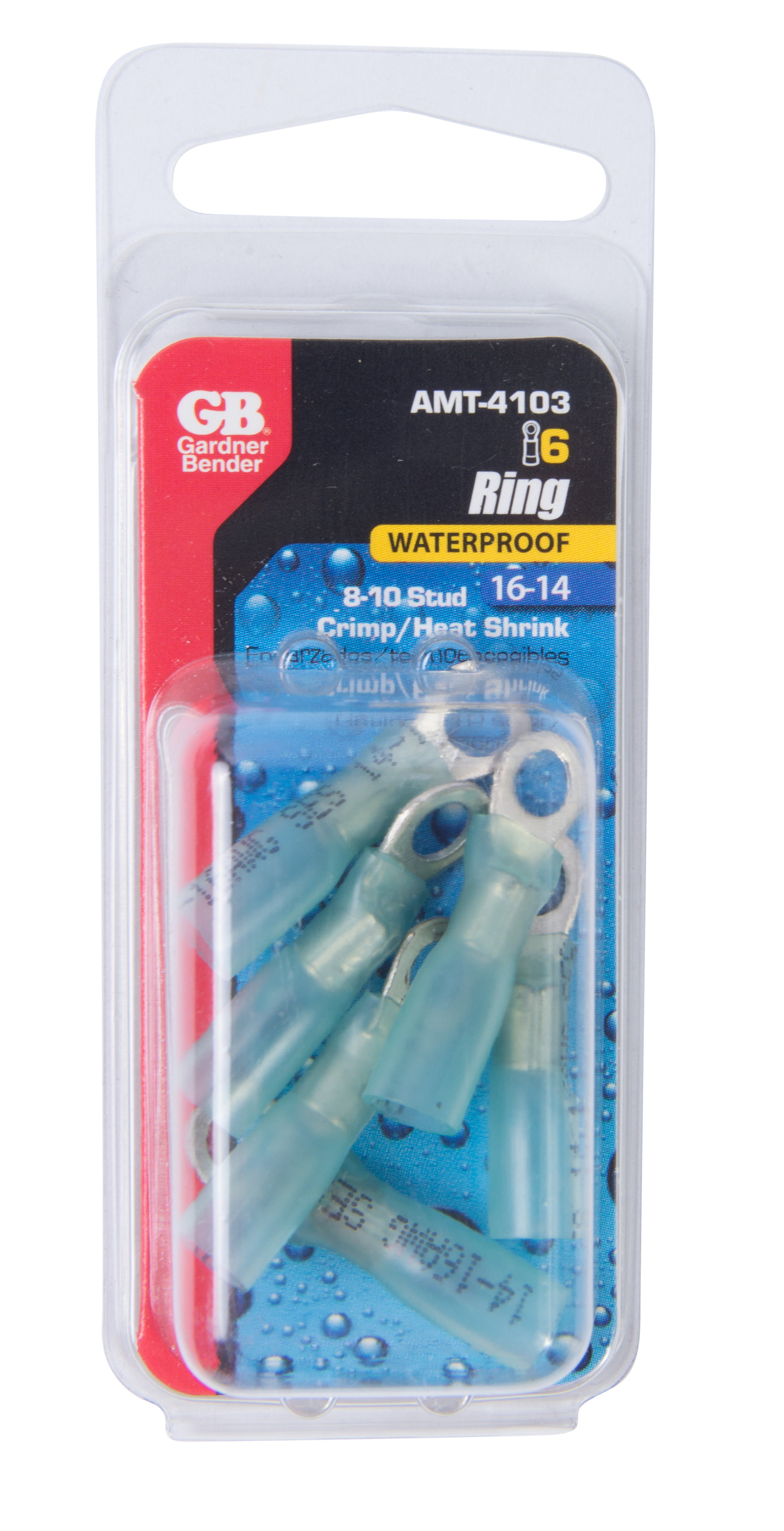

Dependable and easy to use, Gardner Bender terminals (and wiring accessories) offer the high quality and application flexibility that professionals demand. Available inn a variety of packaging options, look to Gardner Bender for secure wire connection options.

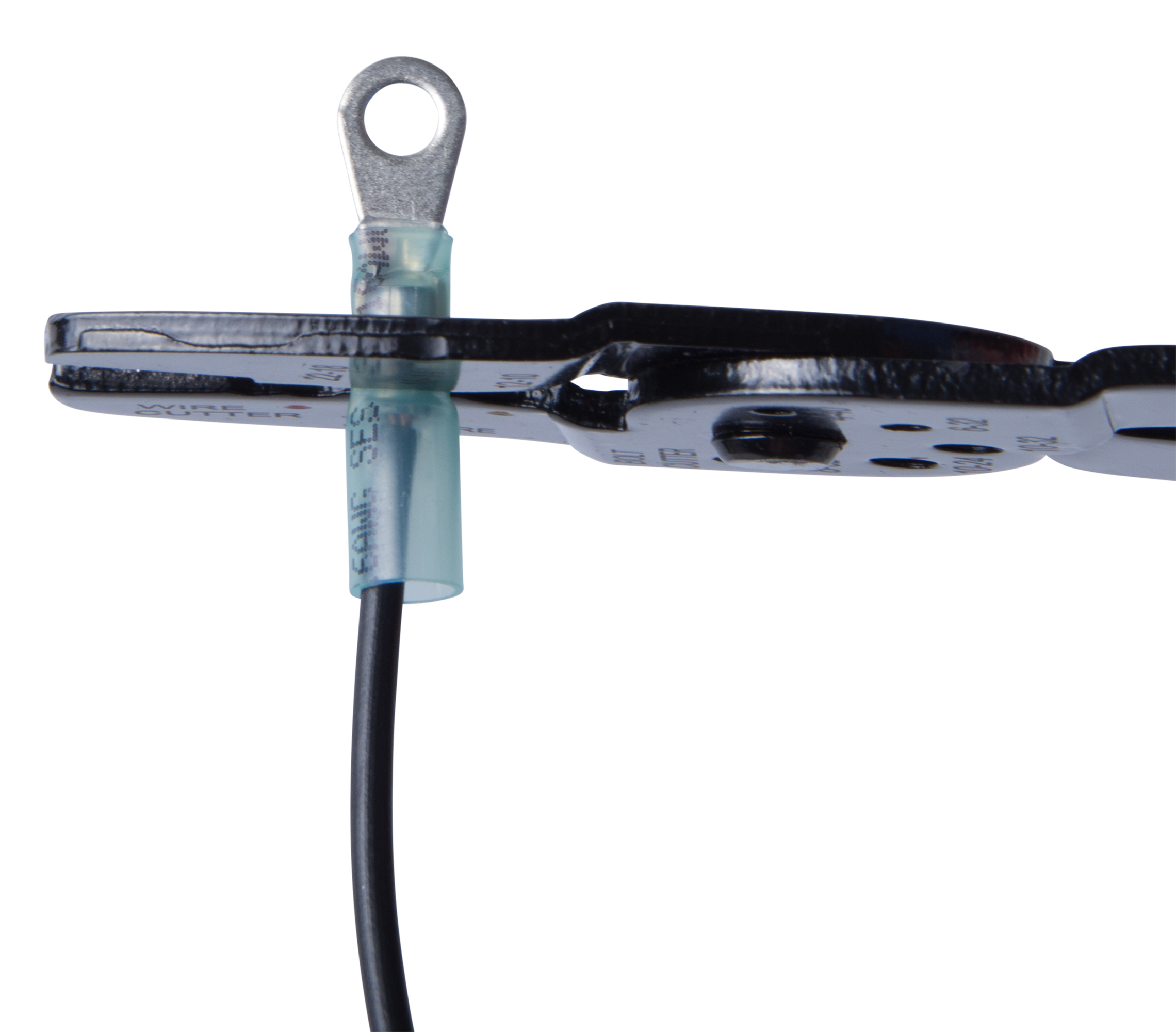

- Adhesive lined to waterproof and environmentally seal connections when crimped and heated
- Rated at 600 Volt Max Temperature rating: -67 deg -221 deg F (-55 deg -105 deg C)
- 2.5:1 heat shrink ratio
- Resists salt water, oil, gasoline and other environmental contaminants
- Heat-activated adhesive melts and flows to create a seal
- Resists salt water, oil, gasoline and other environmental contaminants
- UL and CSA safety listings
| Warranty | Standard 1 Year |
| RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
| Color | Blue |
| Out of Package Height (in) | 0.2 |
| Out of Package Width (in) | 0.2 |
| Out of Package Length/Depth (in) | 0.87 |
| Out of Package Weight (oz) | 0.16 |
| Each in Package Height (in) * | 4 |
| Each in Package Width (in) * | 1.6 |
| Each in Package Length/Depth (in) * | 0.88 |
| Each in Package Weight (lbs) * | 0.041 |
| Inner Pack Weight (lbs) * | 0.41 |
