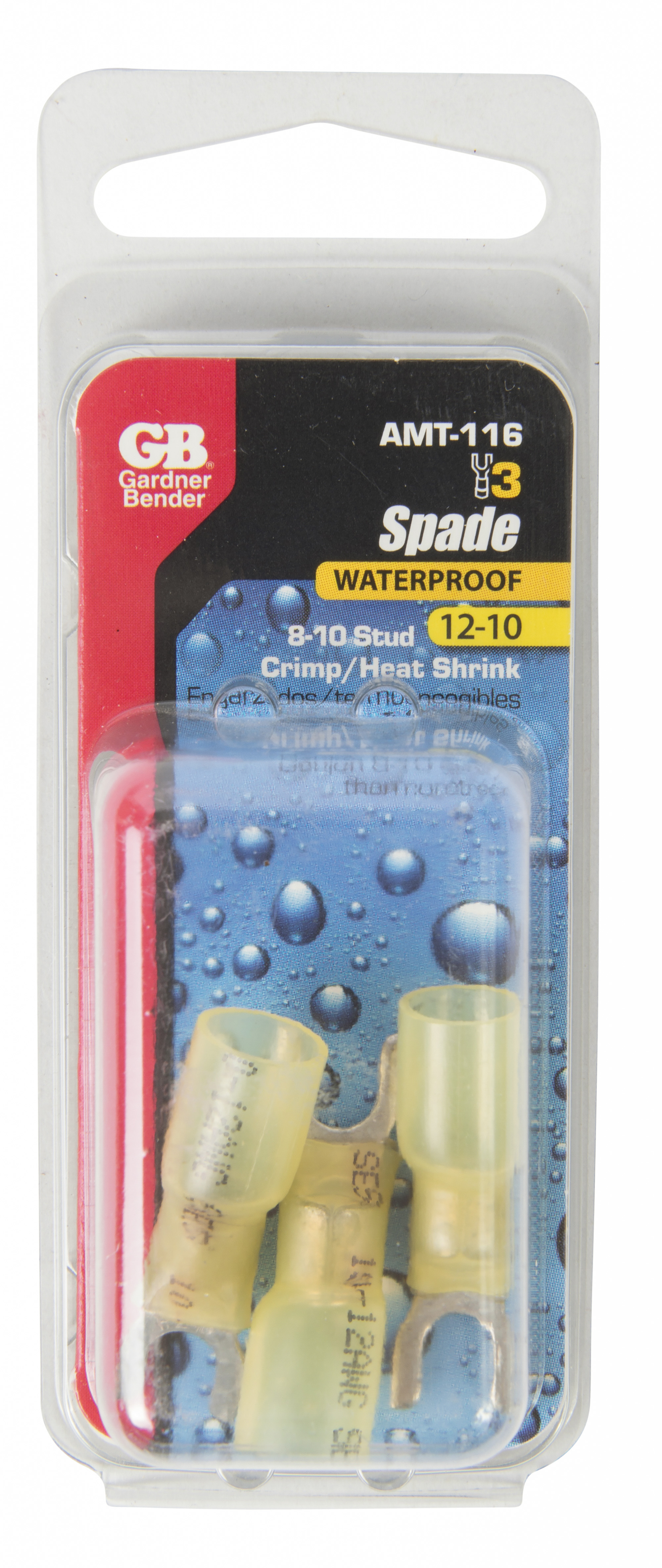

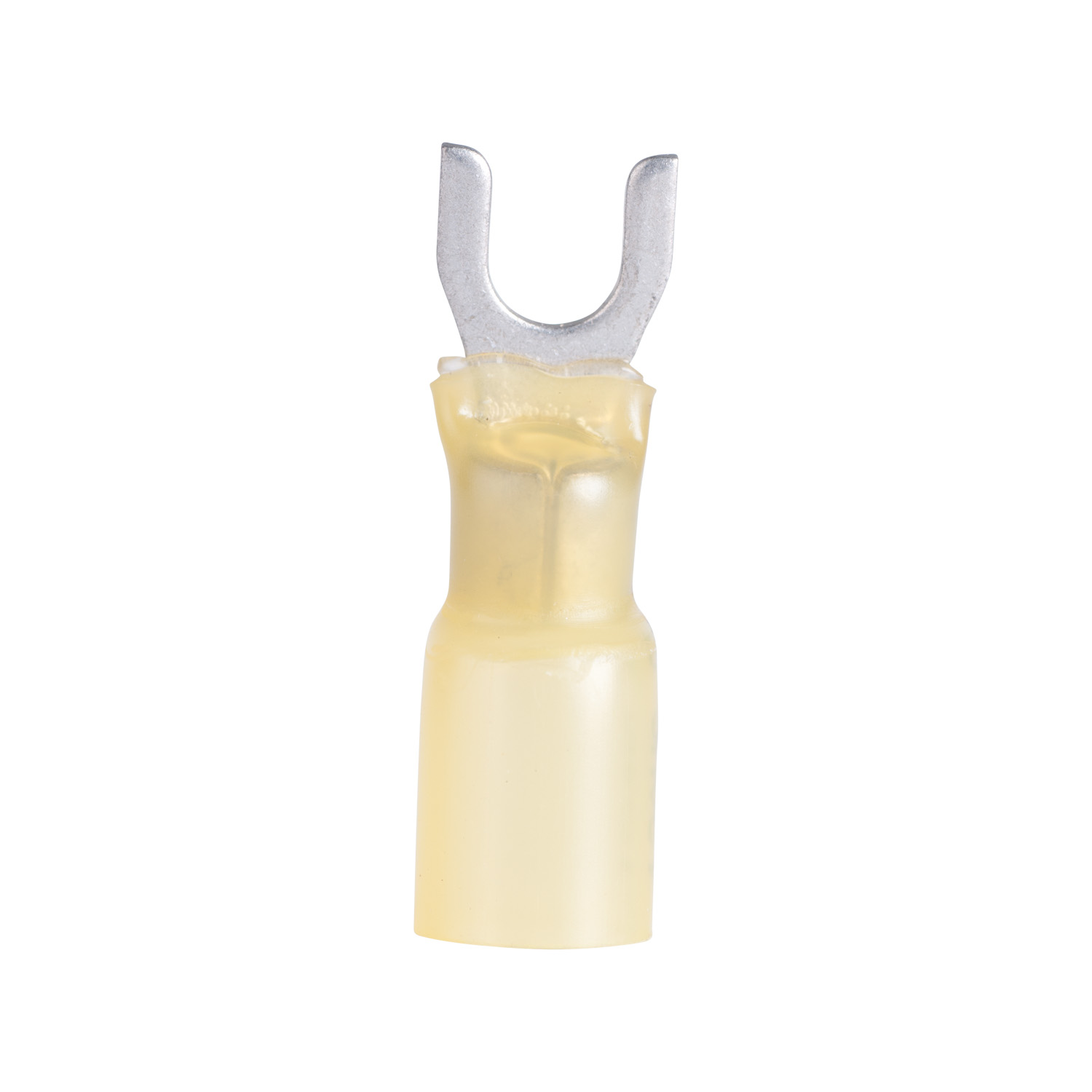

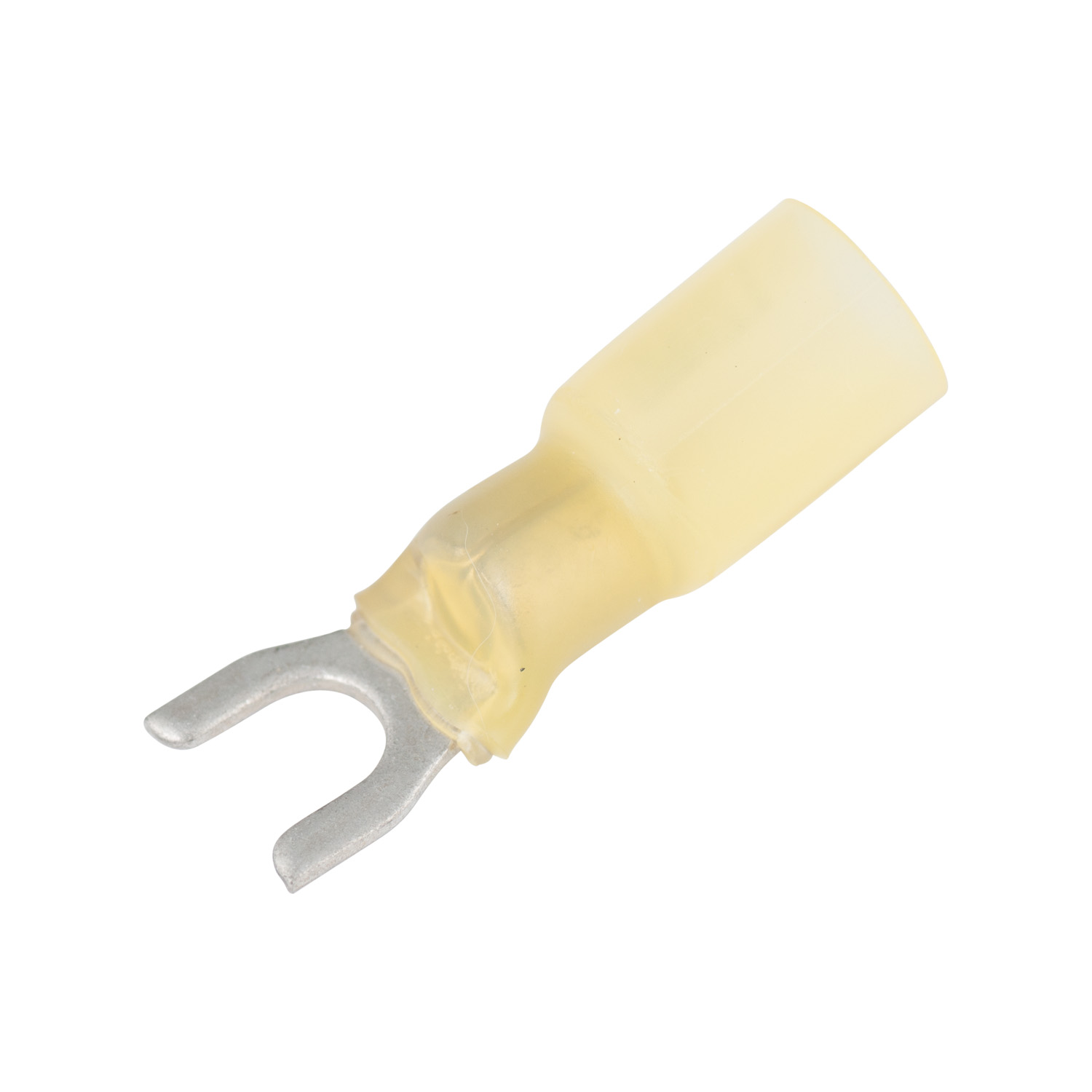

#12-#10 AWG (5 mm²) GB Xtreme Spade Terminal (8 to 10 Stud)
Part # AMT-116
Constructed with Heat Shrink insulation that is adhesive lined to waterproof and environmentally seal electrical connections when crimped and heated. More...
WHERE TO BUY
Constructed with Heat Shrink insulation that is adhesive lined to waterproof and environmentally seal electrical connections when crimped and heated.
- Insulates and protects connections from wire pullout, moisture intrusion and abrasion
- Heat-activated adhesive melts and flows to create a waterproof seal
- Resists salt water, oil, gasoline and other environmental contaminants
- Rated at 600 Volt Max
- Temperature Rating: -67 deg to 221 deg F (-55 deg to 105 deg C)
- 2.5:1 Shrink Ratio
| Warranty | Standard 1 Year |
| RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
| Color | Yellow |
| Each in Package Height (in) * | 0.5 |
| Each in Package Width (in) * | 1.63 |
| Each in Package Length/Depth (in) * | 4 |
| Each in Package Weight (lbs) * | 0.038 |
| Inner Pack Weight (lbs) * | 0.38 |
