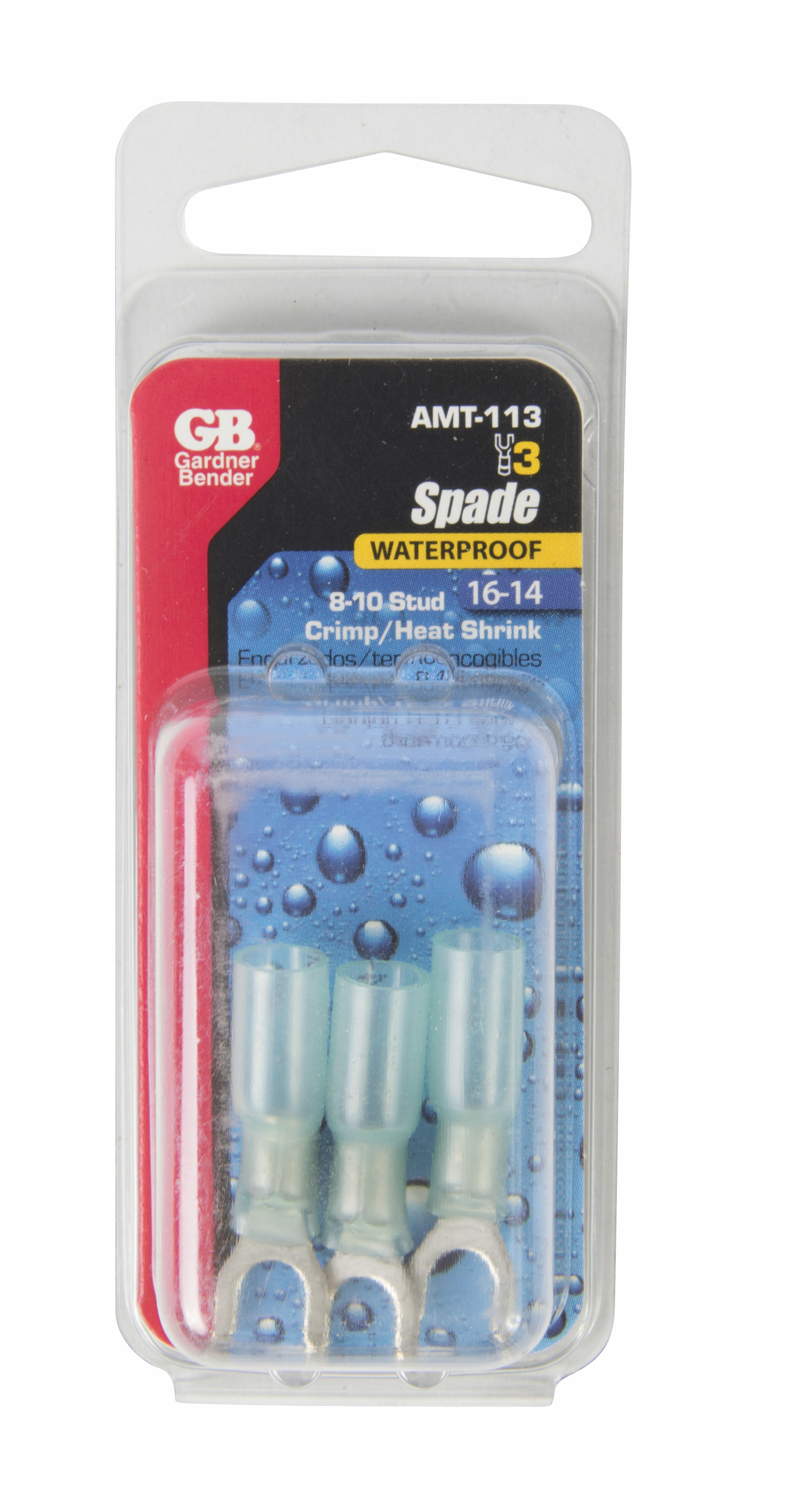

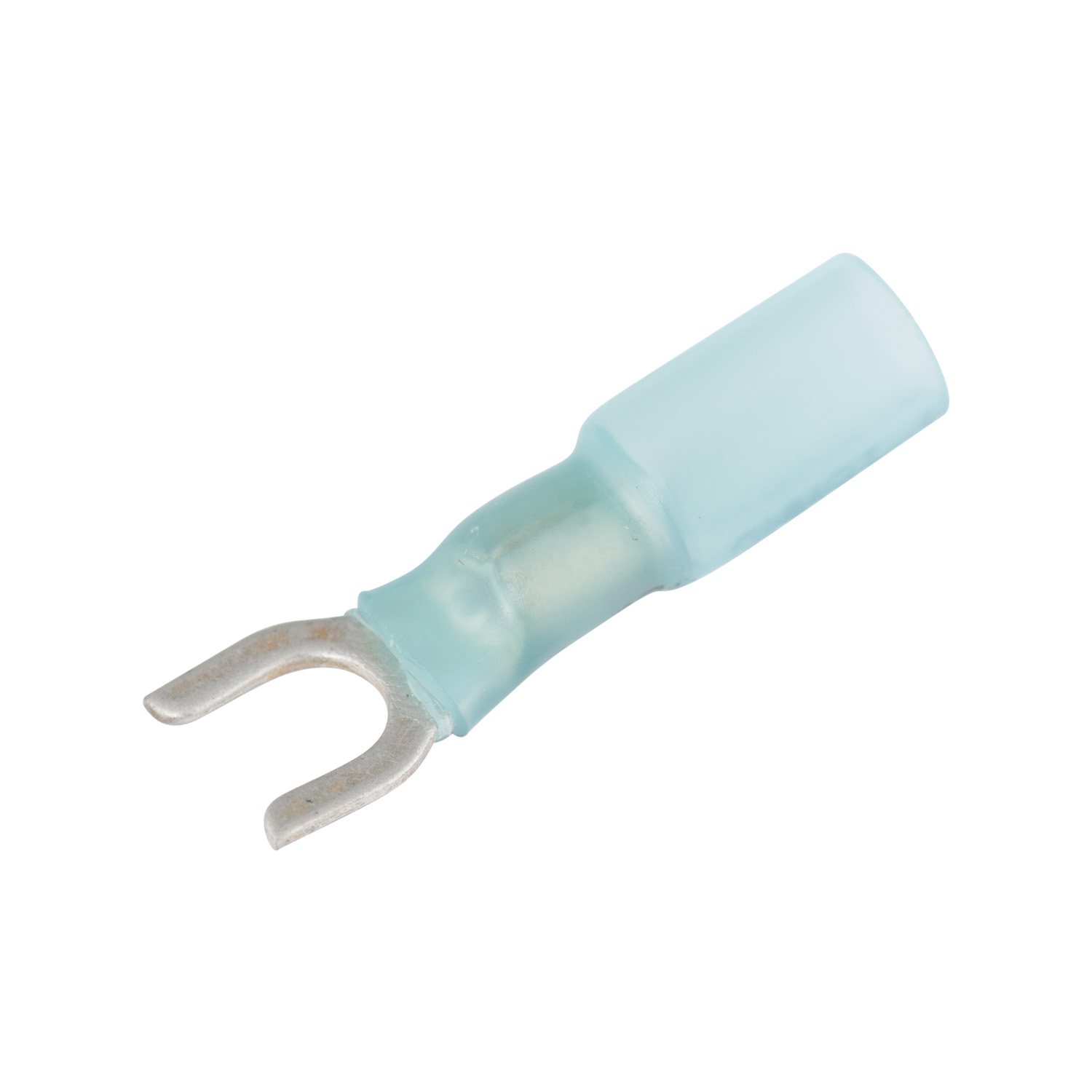

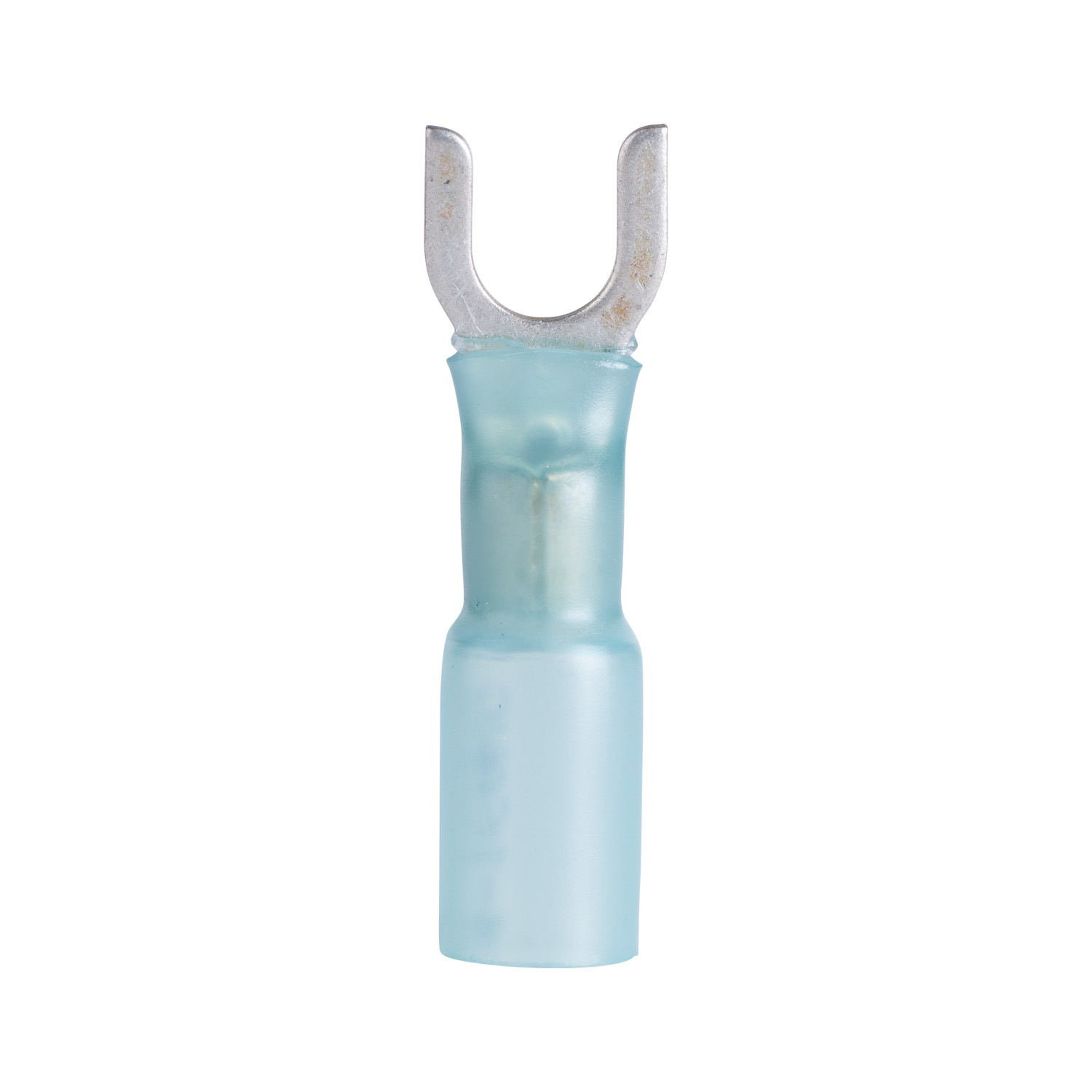

#16-#14 AWG (2 mm²) GB Xtreme Spade Terminal (8 to 10 Stud)

Part # AMT-113

GB Xtreme Heat Shrink Terminals offer triple protection against strain and vibration. They crimp easily without splitting to secure the connection in More...

WHERE TO BUY

GB Xtreme Heat Shrink Terminals offer triple protection against strain and vibration. They crimp easily without splitting to secure the connection in place. Soldering improves conductivity and provides a tough, corrosion-proof connection. Heat shrinking forms a final watertight seal and the ultimate vibration and strain relief. Strong connections reduce wire pull out and keep you powered even when faced with heavy vibration. To put it simply, our products work and play as hard as you do. If you are the kind of person that never gives up, you can rely on GB Xtreme products to keep the equipment you rely on running at full speed no matter what.

  • Insulates and protects connections from wire pullout, moisture intrusion and abrasion
  • Heat-activated adhesive melts and flows to create a waterproof seal
  • Resists salt water, oil, gasoline and other environmental contaminants
  • Rated at 600 Volt Max
  • Temperature Rating: -67 deg to 221 deg F (-55 deg to 105 deg C)
  • 2.5:1 Shrink Ratio

Warranty Standard 1 Year
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Color Blue
Each in Package Height (in) * 0.5
Each in Package Width (in) * 1.63
Each in Package Length/Depth (in) * 4
Each in Package Weight (lbs) * 0.071
Inner Pack Weight (lbs) * 0.71
