Big Ben Hand Bender Head, 1/2" EMT, Aluminum
Part # 960

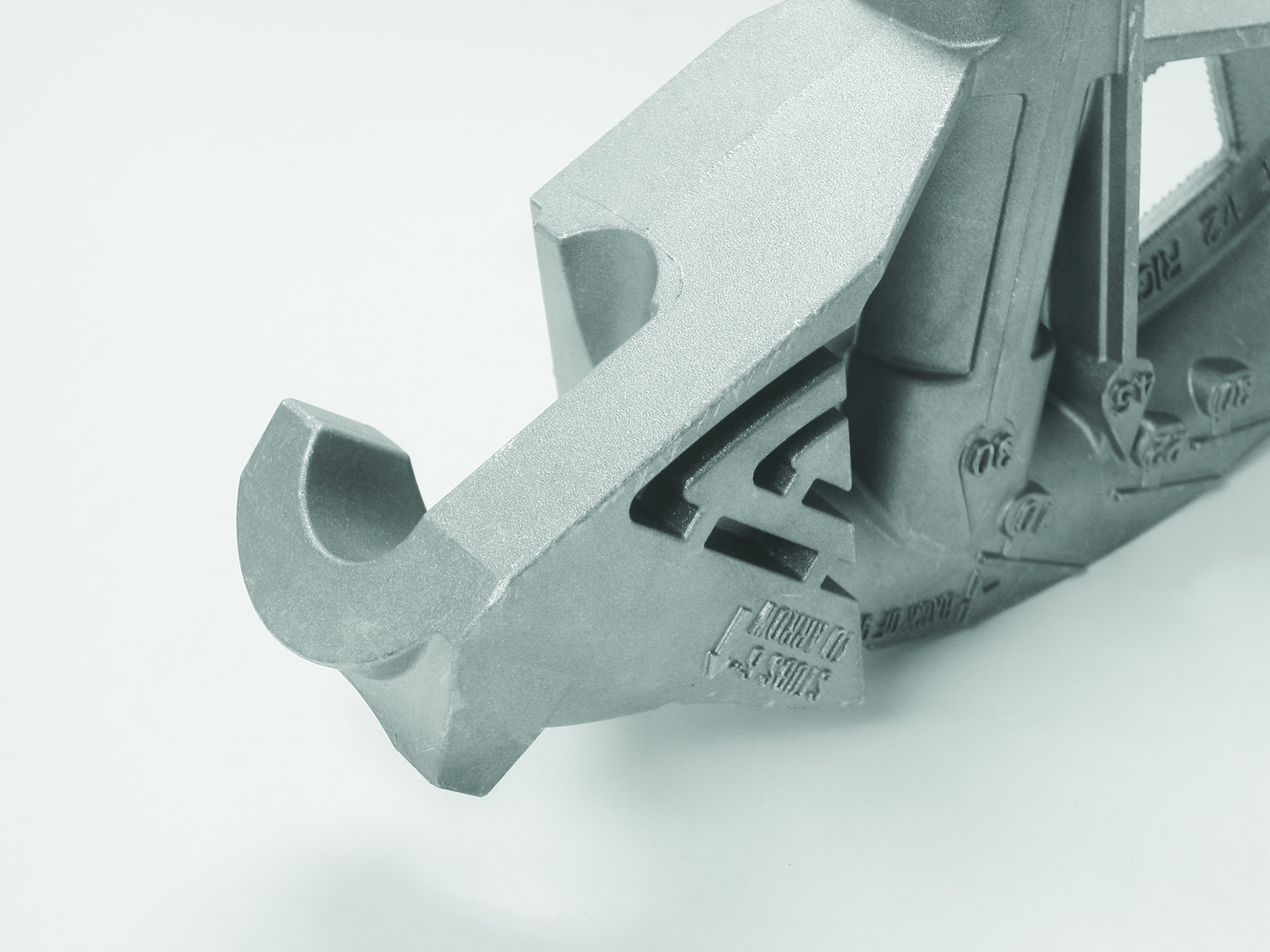

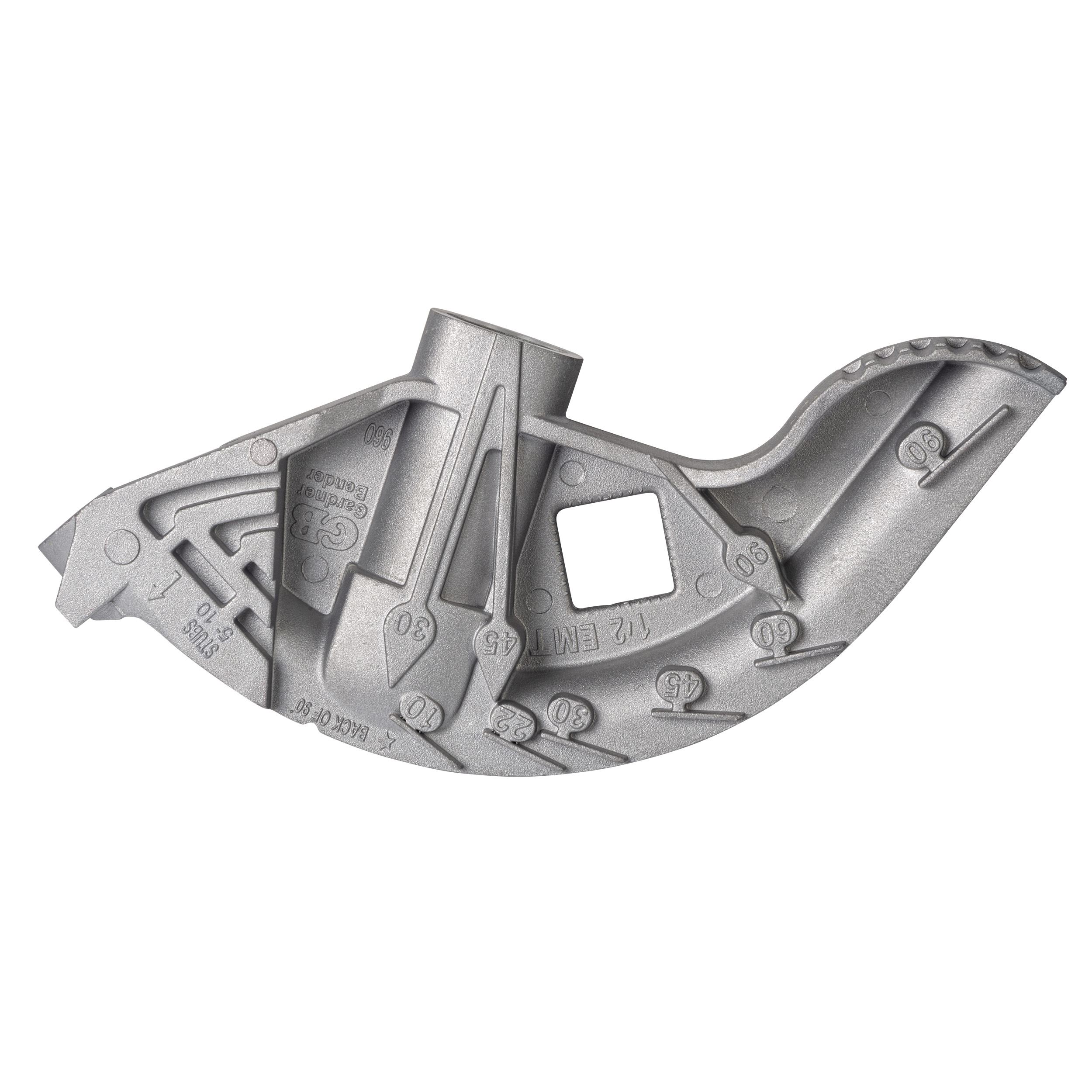

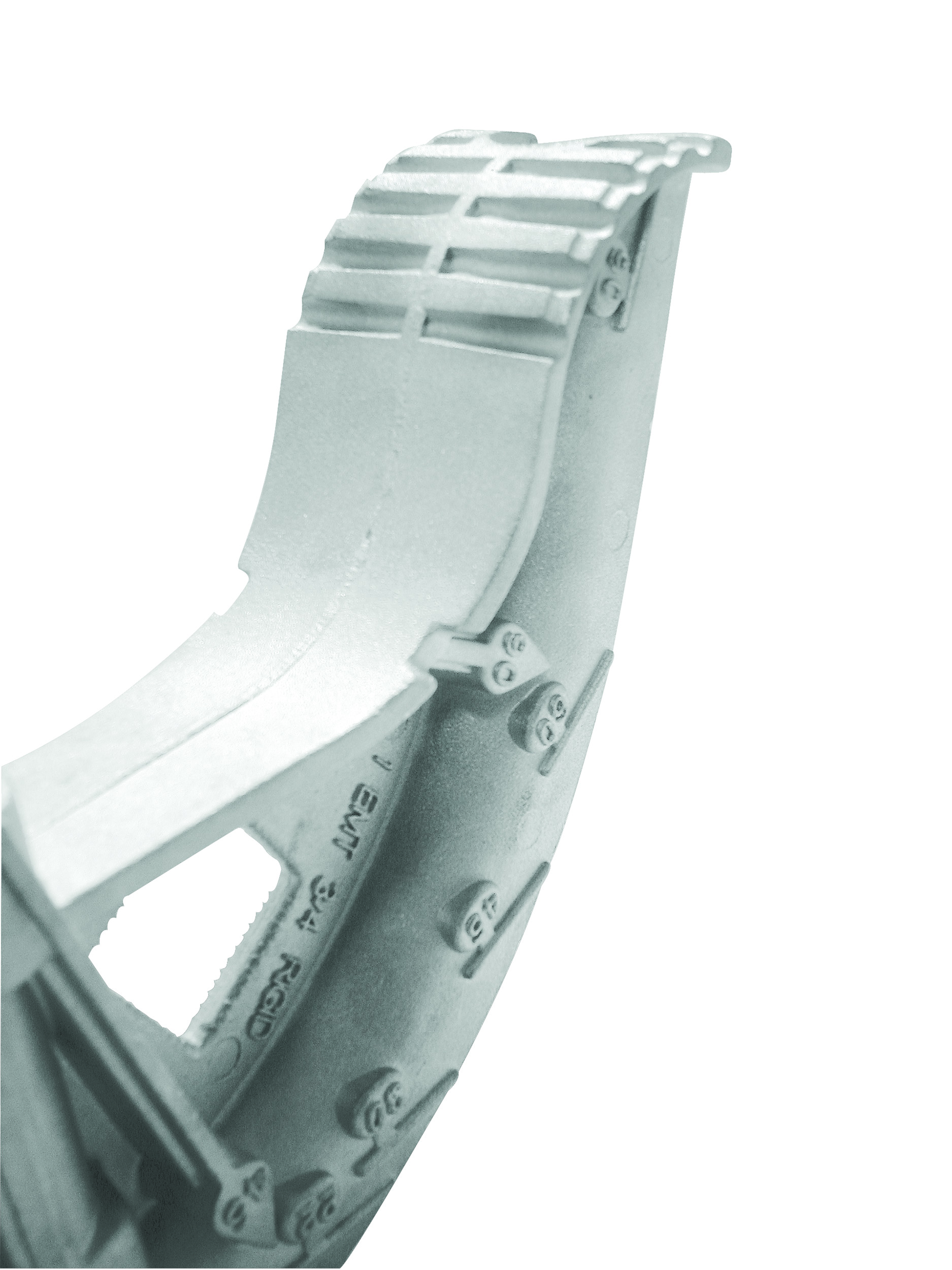

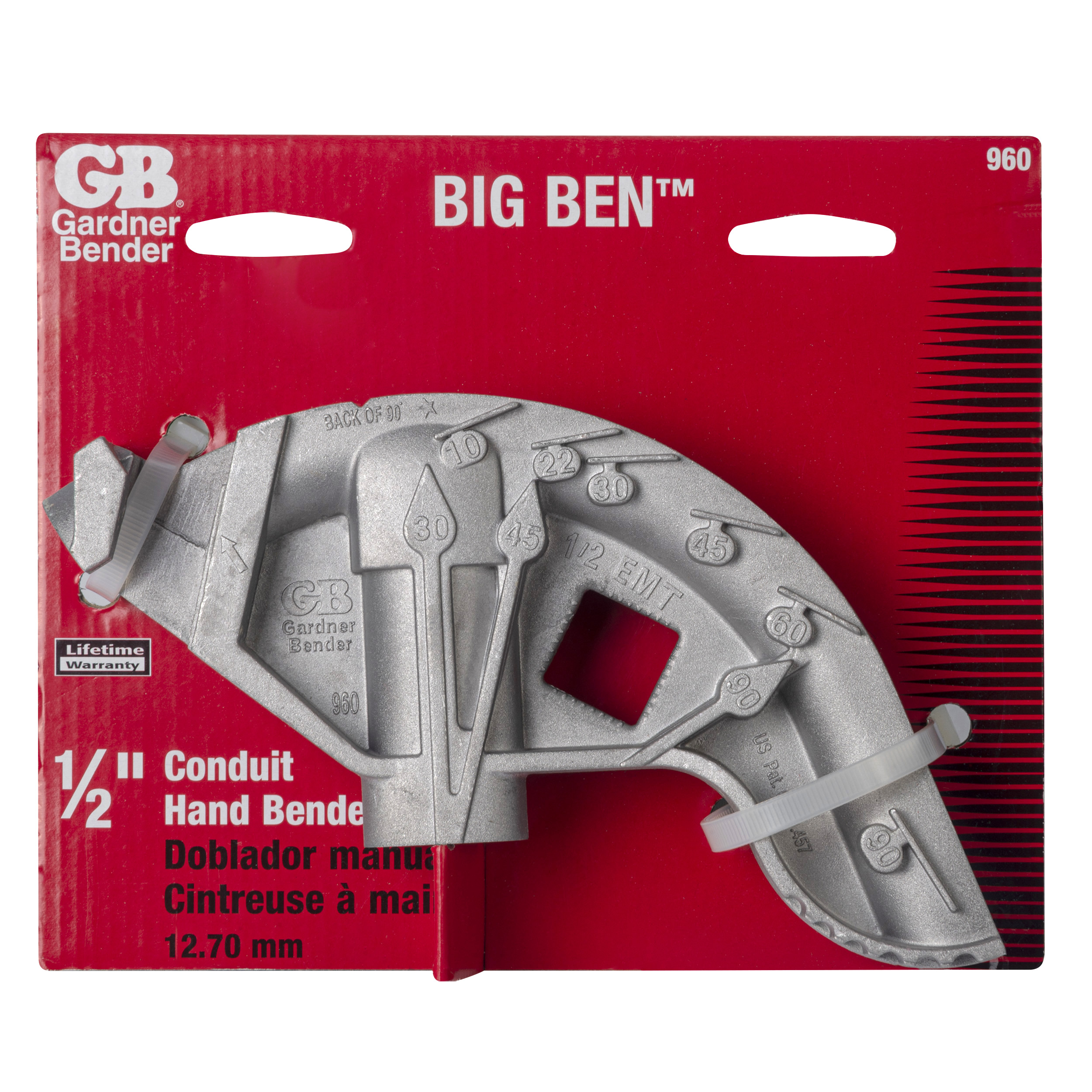

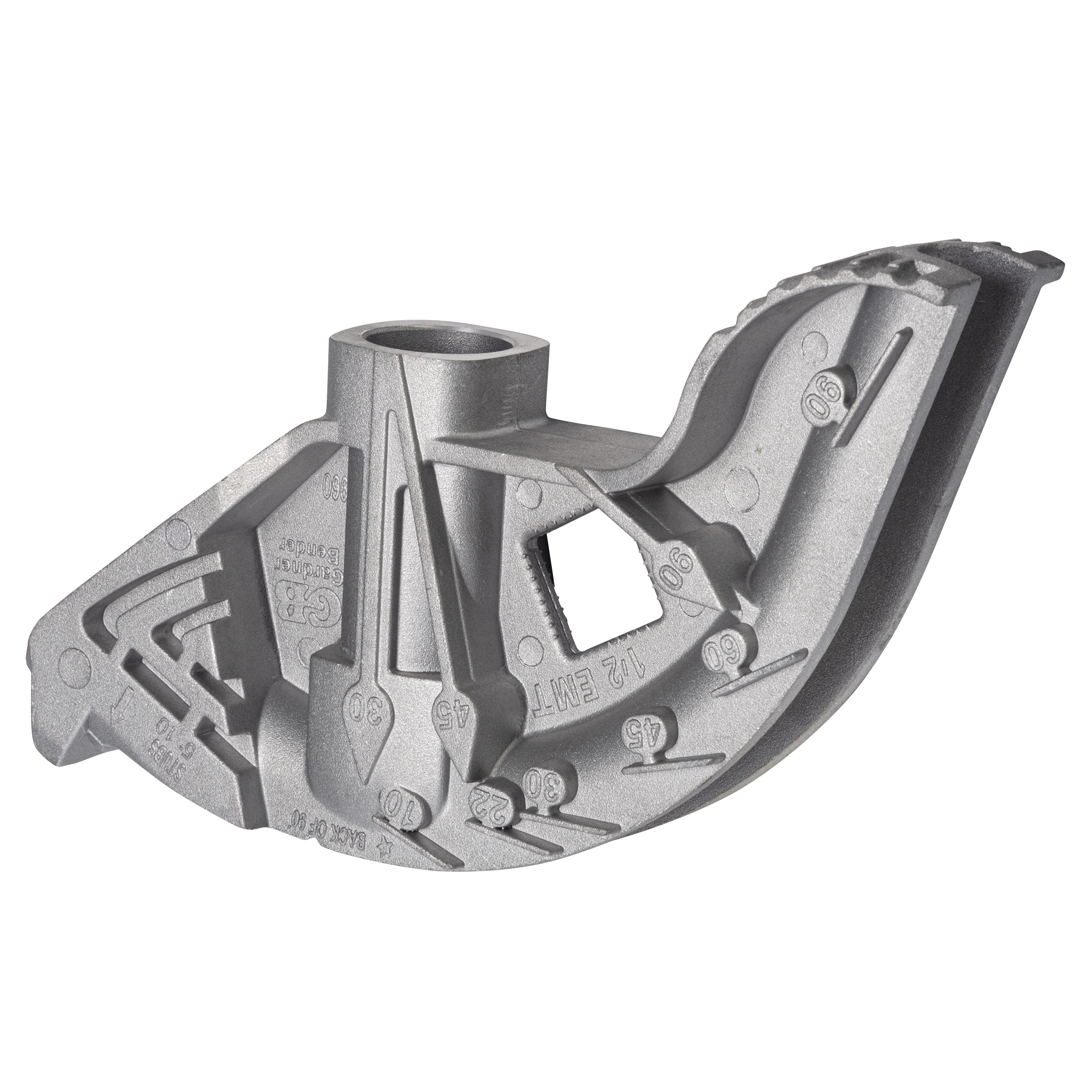

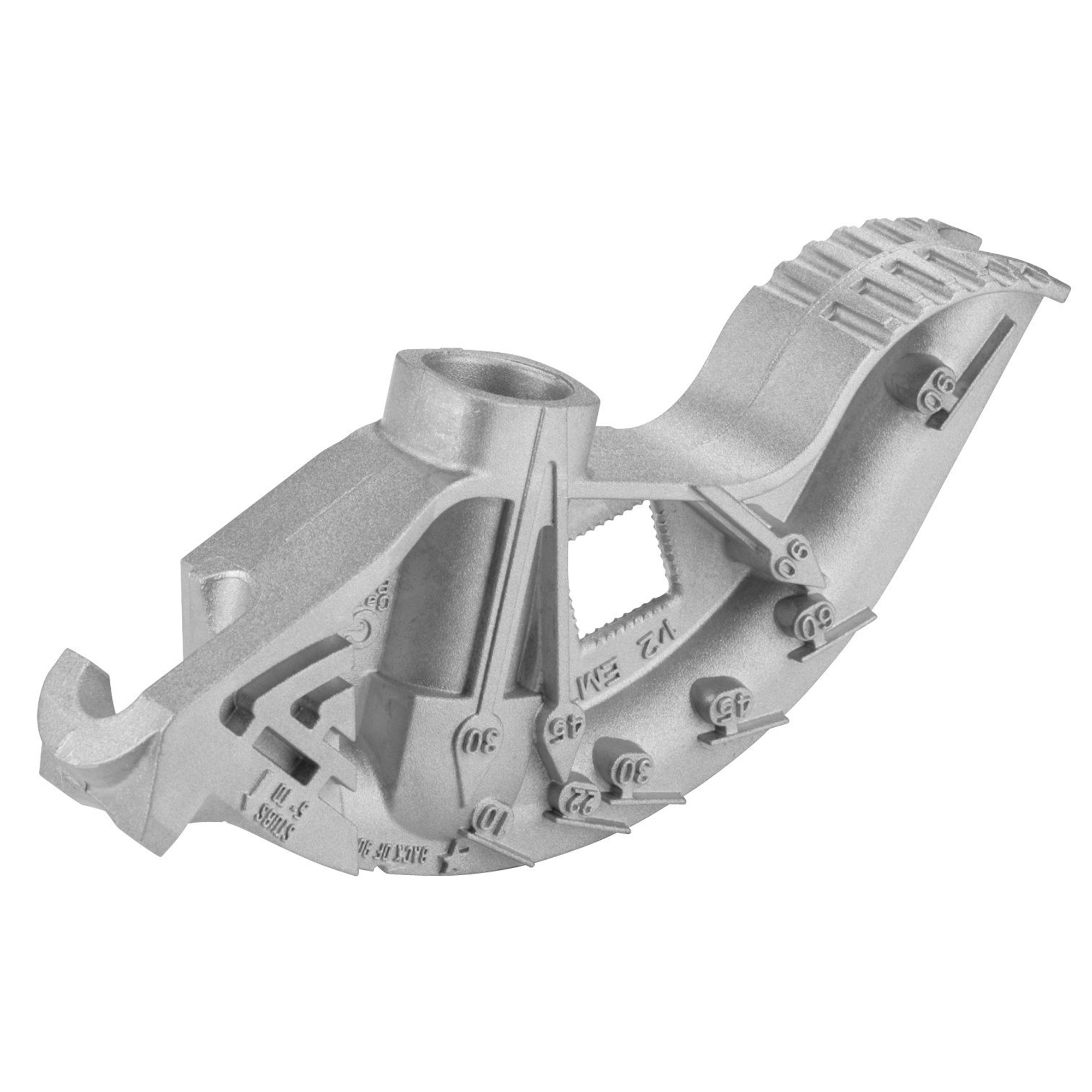

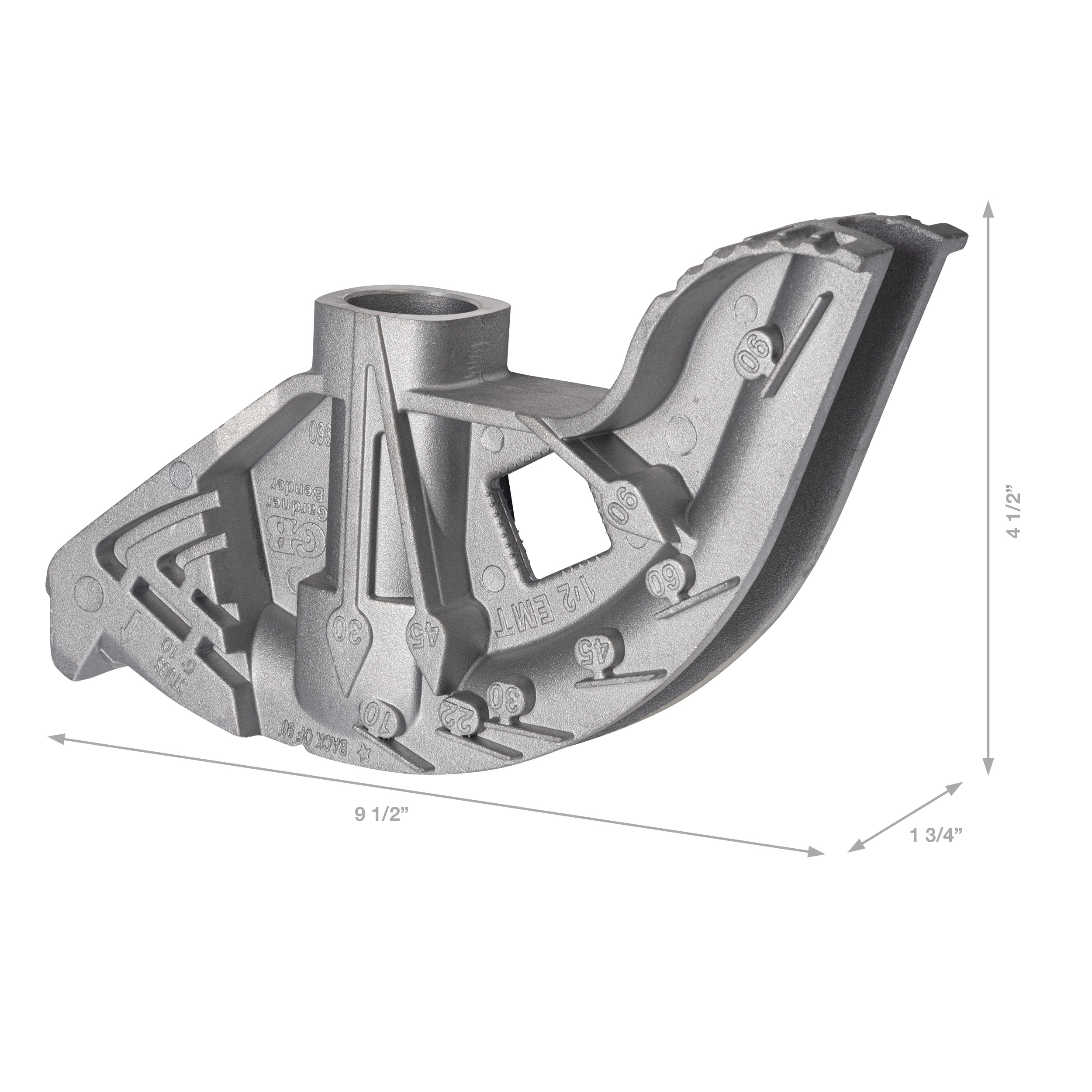

Gardner Bender's Big Ben aluminum hand bender has improved traditional hand benders by enlarging the hook with a 5x durability factor, increasing the More...
WHERE TO BUYGardner Bender's Big Ben aluminum hand bender has improved traditional hand benders by enlarging the hook with a 5x durability factor, increasing the foot pedal size and clearance by 40 percent , highlighting the markings and incorporating a dual sight-line system for bending on the floor or in the air. Includes industry standard markings to simplify the job. Made of rugged, heat-treated aluminum, and backed by a lifetime warranty. Package includes bender head only. Also available with handle (Model #960H). Other head sizes available are: 1" (Model #962) and 3/4" (Model #961). Bender handle available separately (Model #BH-75 - 3/4" NPT x 38" long). Includes a detailed hand bending manual which clearly illustrates various bends and how to achieve them including the mathematical formulas to complete more complicated bends.
- Embossed sight lines for 10 deg, 22 deg, 30 deg, 45 deg, 60 deg and 90 deg
- Industry-standard markings - 30 deg bend when handle is straight up
- Bigger hook with a 5x durability factor
- Bigger foot pedal - 40 percent larger. More foot room allows for use with a booted foot
- Bend-back channel easily corrects conduit over-bends
- Vise-Mate holds conduit while cutting or reaming
- Head only - fits handle number BH-75
Warranty | Limited Lifetime |
Model | Benfield® |
RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
Color | Silver |
Out of Package Weight (oz) | 1.34 |
Each in Package Height (in) * | 7.7 |
Each in Package Width (in) * | 1.9 |
Each in Package Length/Depth (in) * | 9.2 |
Each in Package Weight (lbs) * | 1.62 |
Inner Pack Weight (lbs) * | 3.24 |
