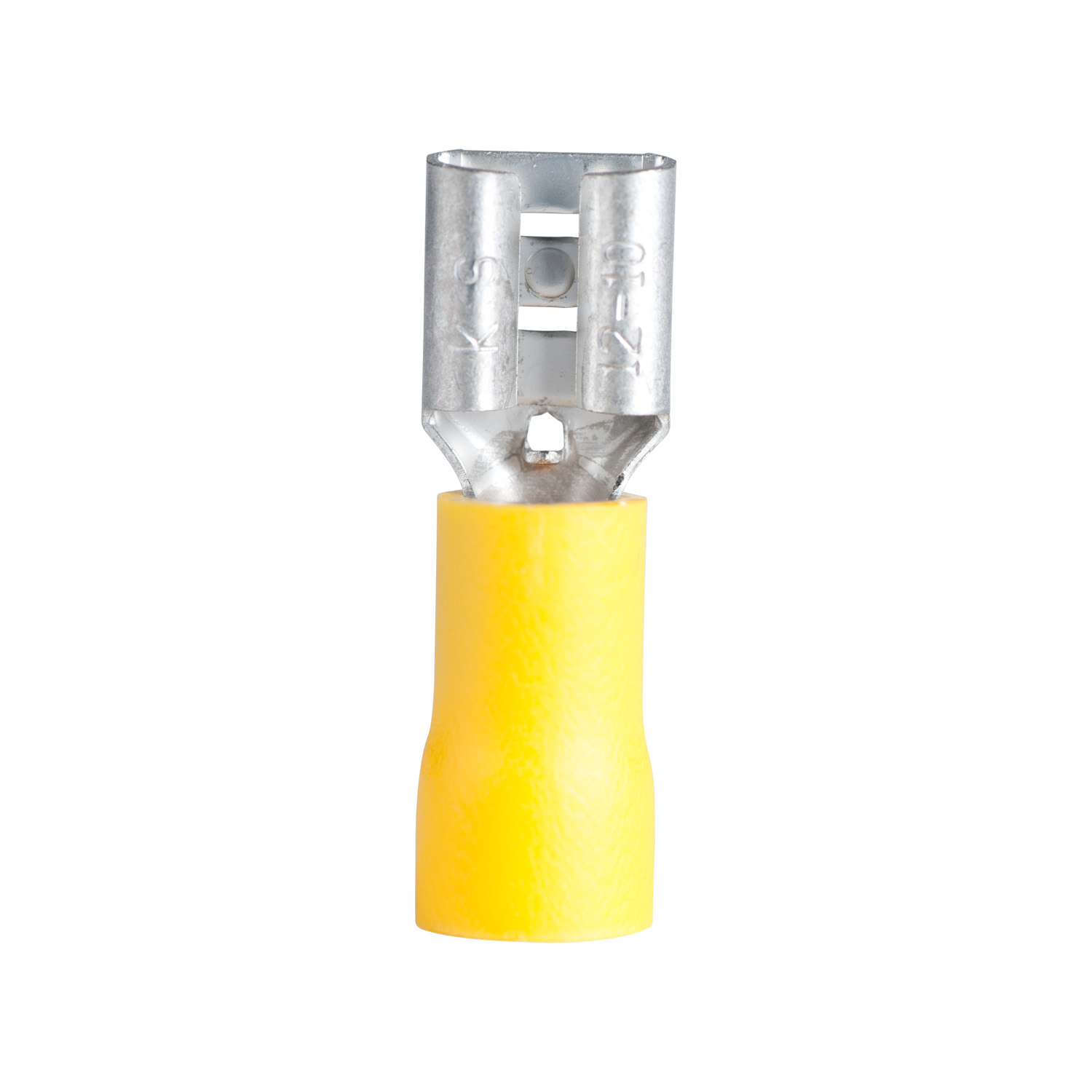

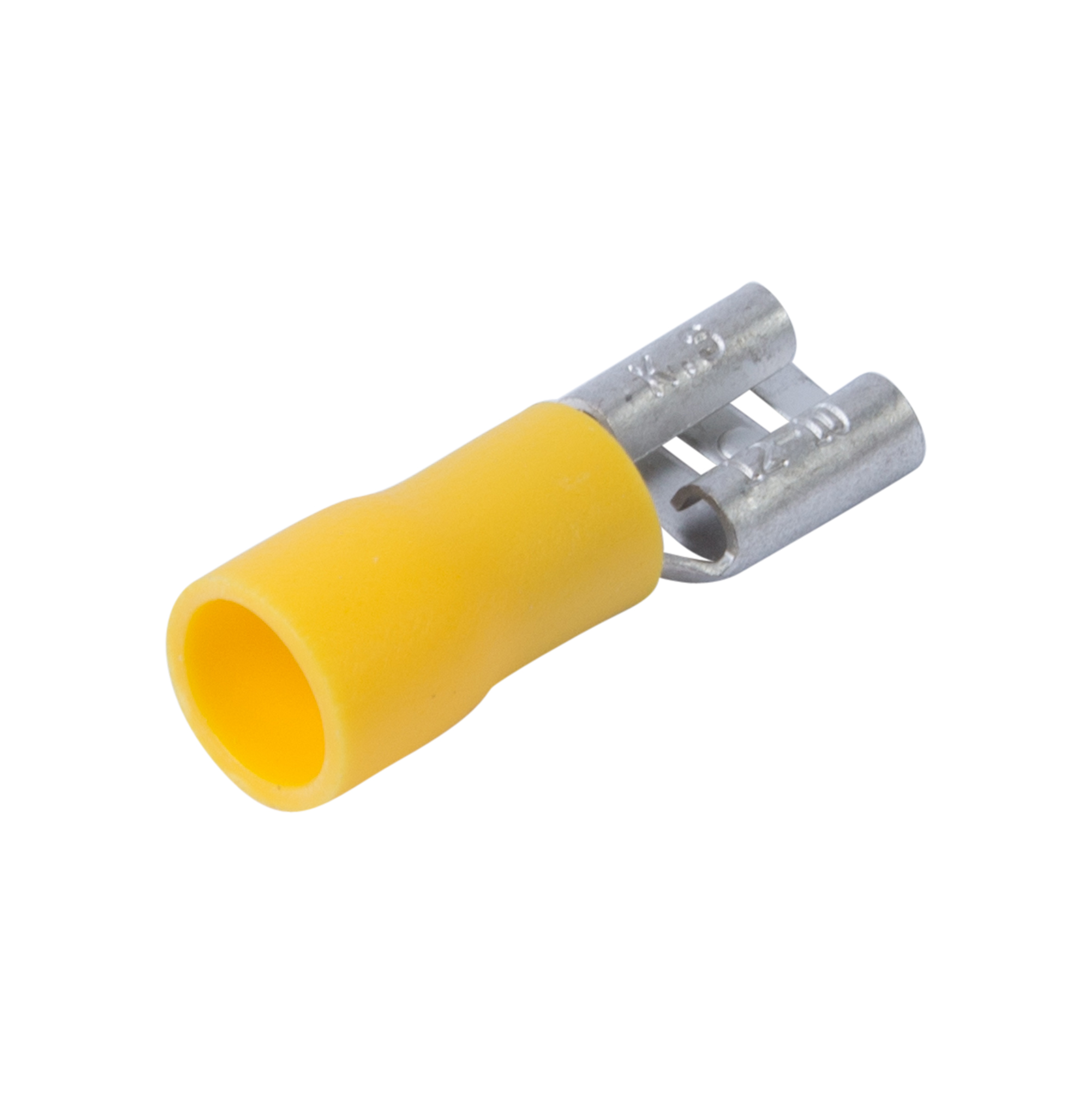

#12-#10 AWG (5 mm²) Vinyl-Insulated Disconnect (0.25" Tab) - Female
Part # 75-145F

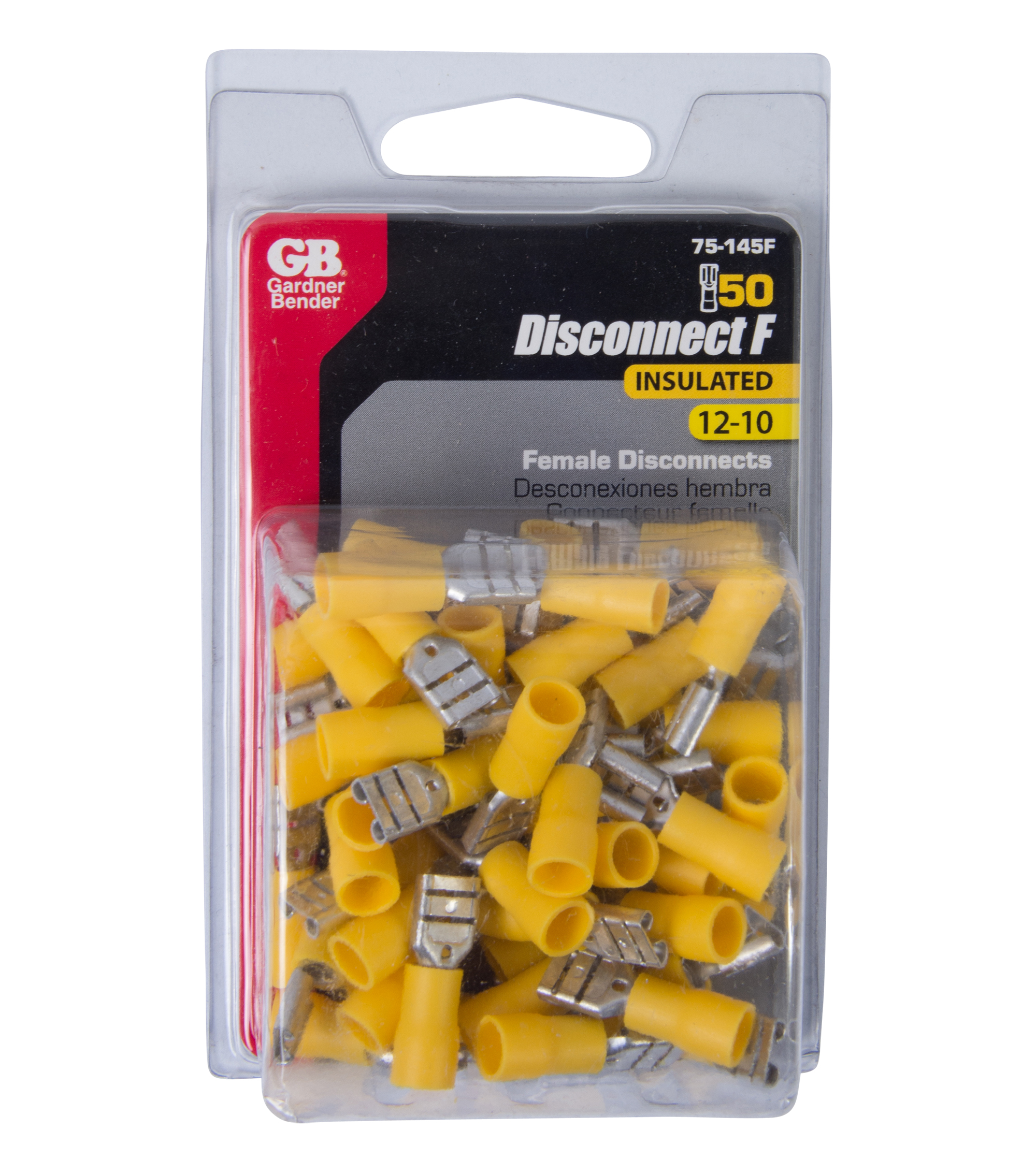

The Gardner Bender Yellow 0.250 F-Disconnects (50-Pack) are designed for 12 - 10 AWG wire sizes. These F-disconnects feature vinyl insulation and a More...
WHERE TO BUYThe Gardner Bender Yellow 0.250 F-Disconnects (50-Pack) are designed for 12 - 10 AWG wire sizes. These F-disconnects feature vinyl insulation and a crimp-type design. UL and CSA safety listings.
- Vinyl-insulated barrel
- Designed for 12 - 10 AWG
- 600-volt maximum rating for building wiring and 1,000-volt maximum rating for signs and fixtures
- Temperature rating of 167 degrees Fahrenheit maximum

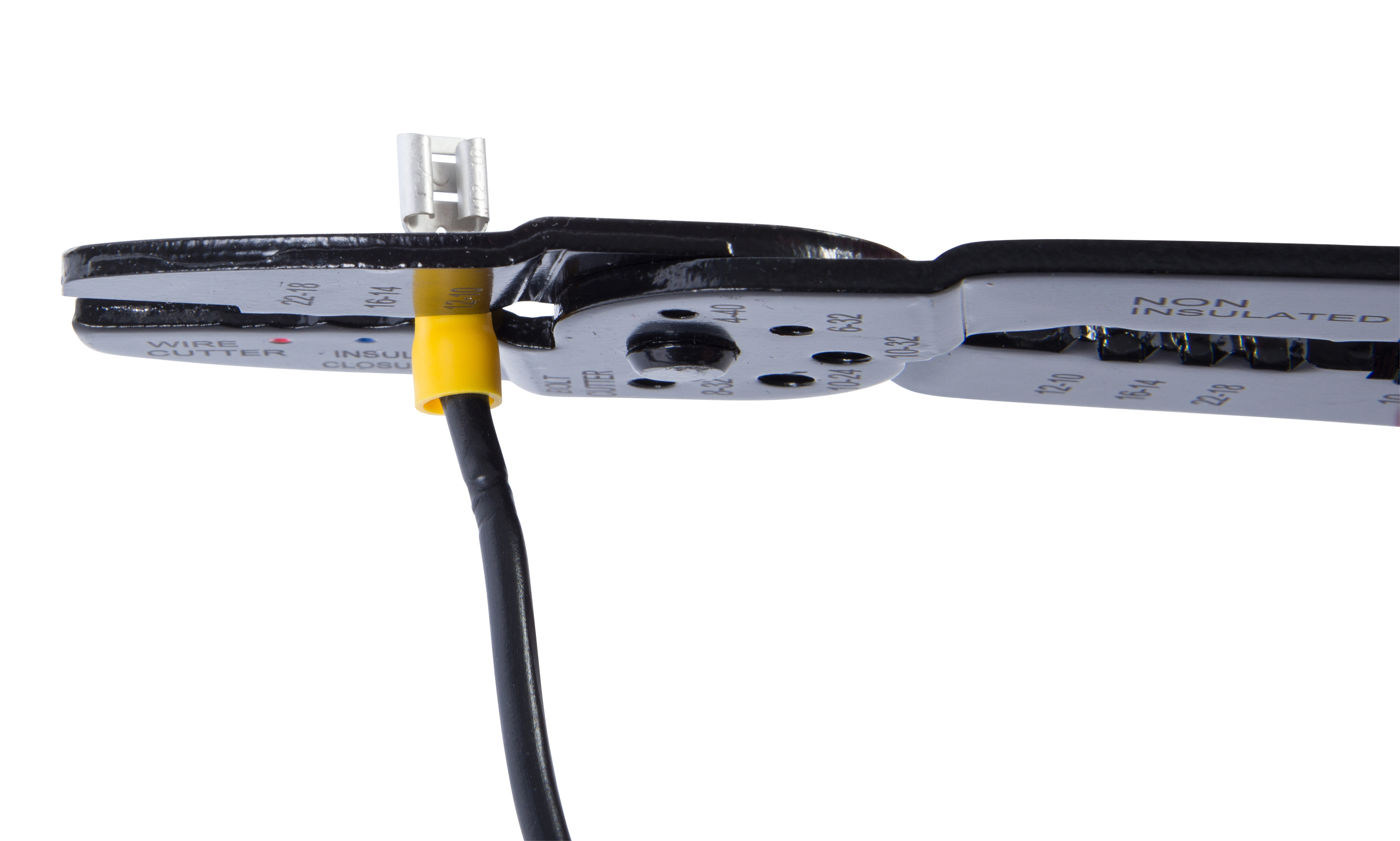

- Crimp-type design
Warranty | Standard 1 Year |
RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
Color | Yellow |
Out of Package Height (in) | 0.87 |
Out of Package Width (in) | 0.25 |
Out of Package Length/Depth (in) | 0.25 |
Each in Package Height (in) * | 1.75 |
Each in Package Width (in) * | 4.63 |
Each in Package Length/Depth (in) * | 2.75 |
Each in Package Weight (lbs) * | 0.156 |
Inner Pack Weight (lbs) * | 0.78 |
