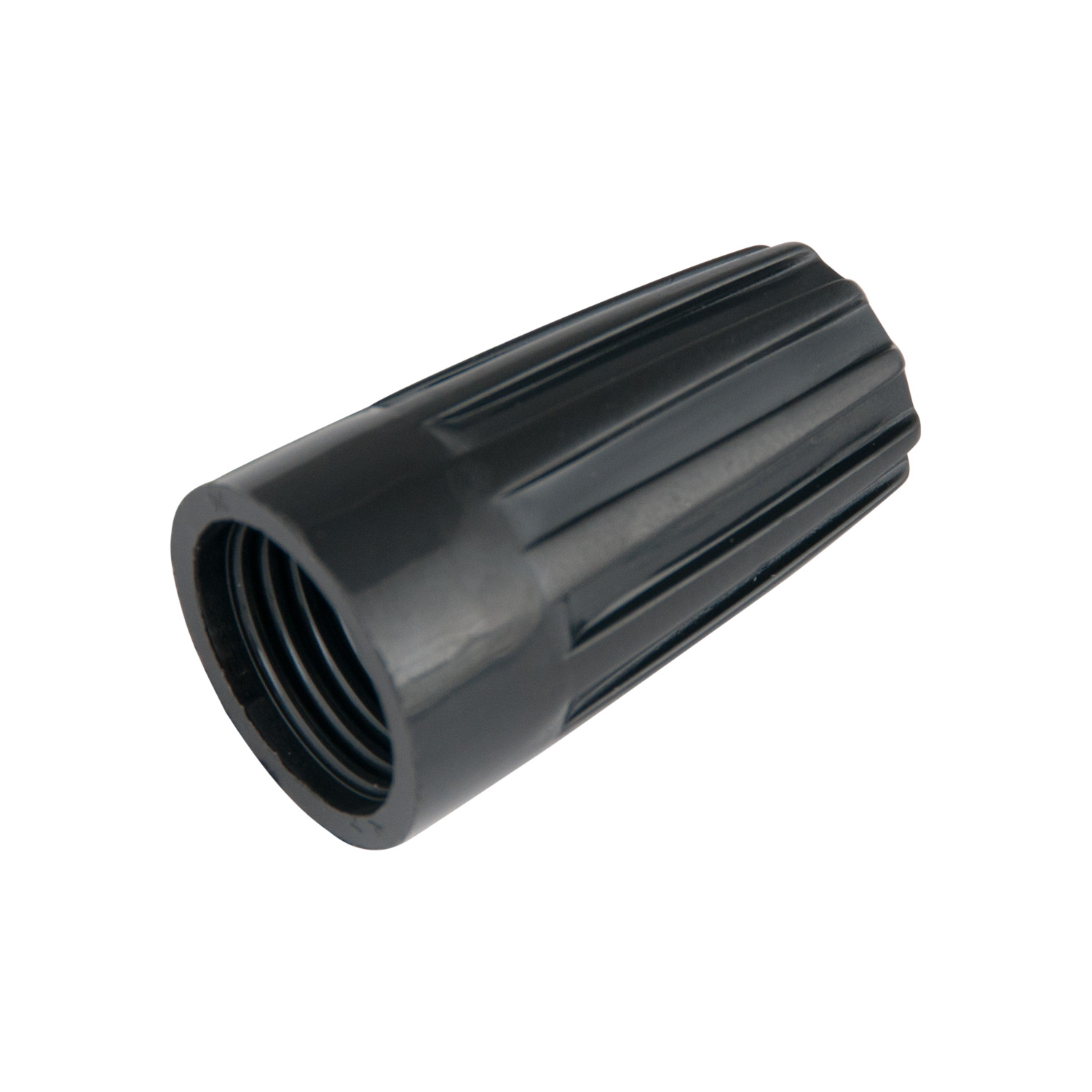

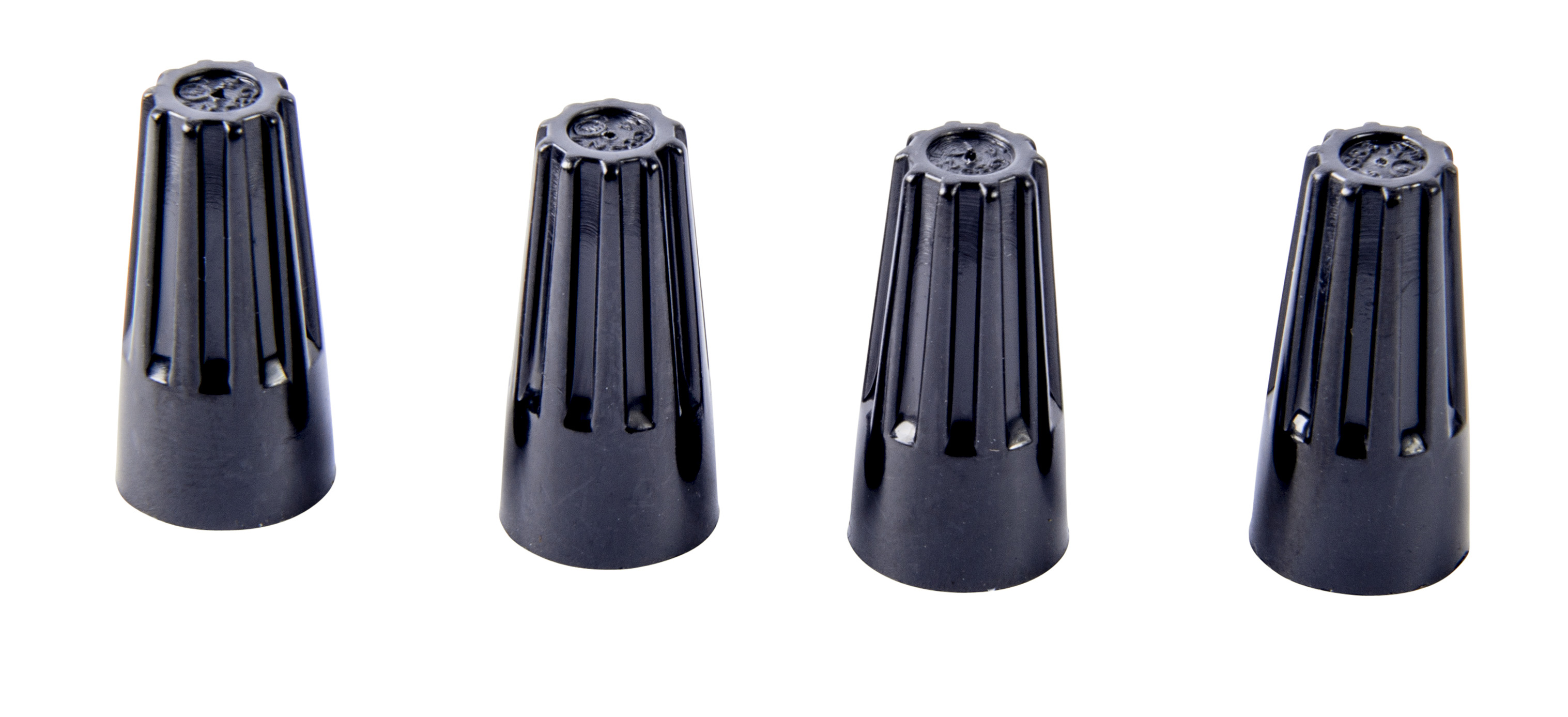

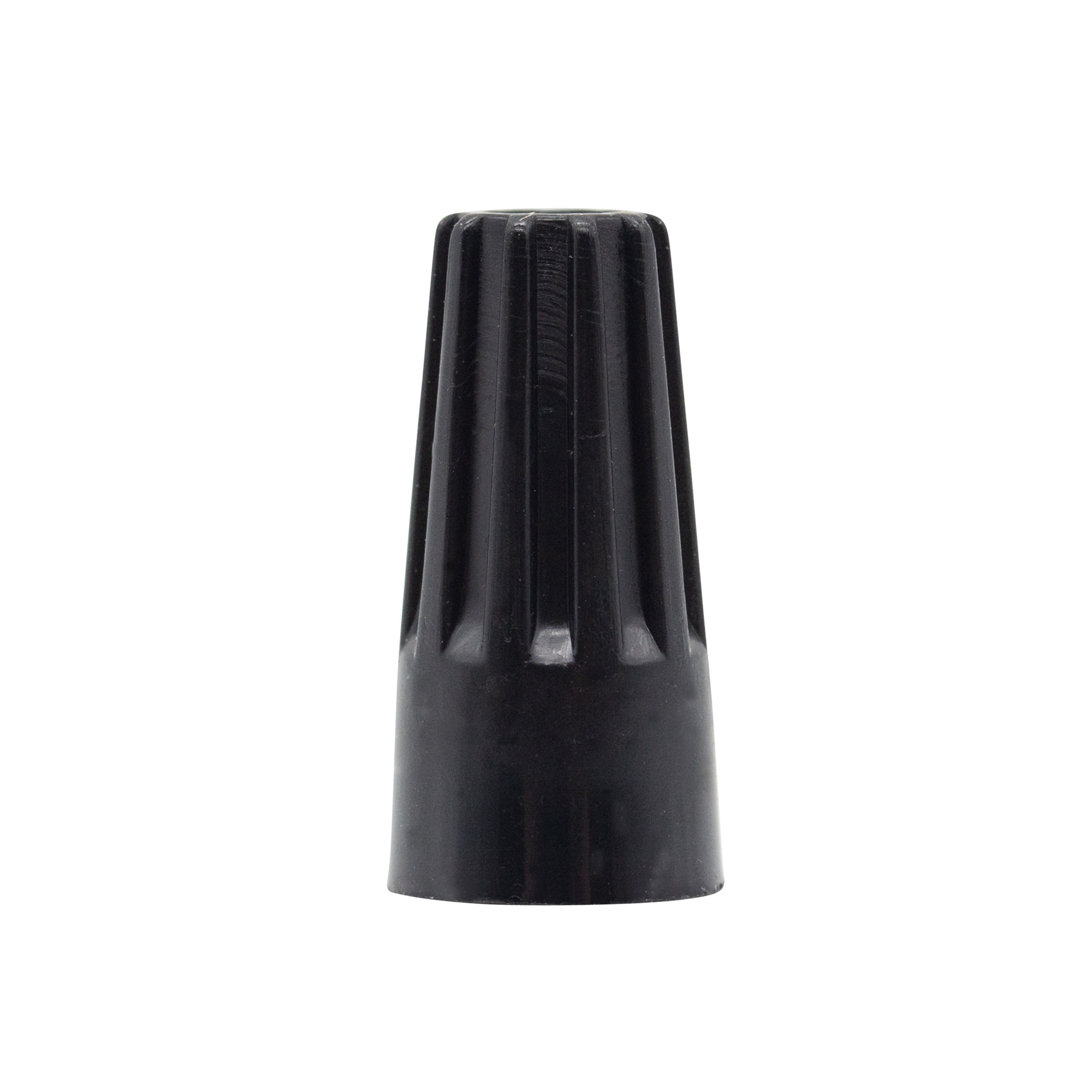

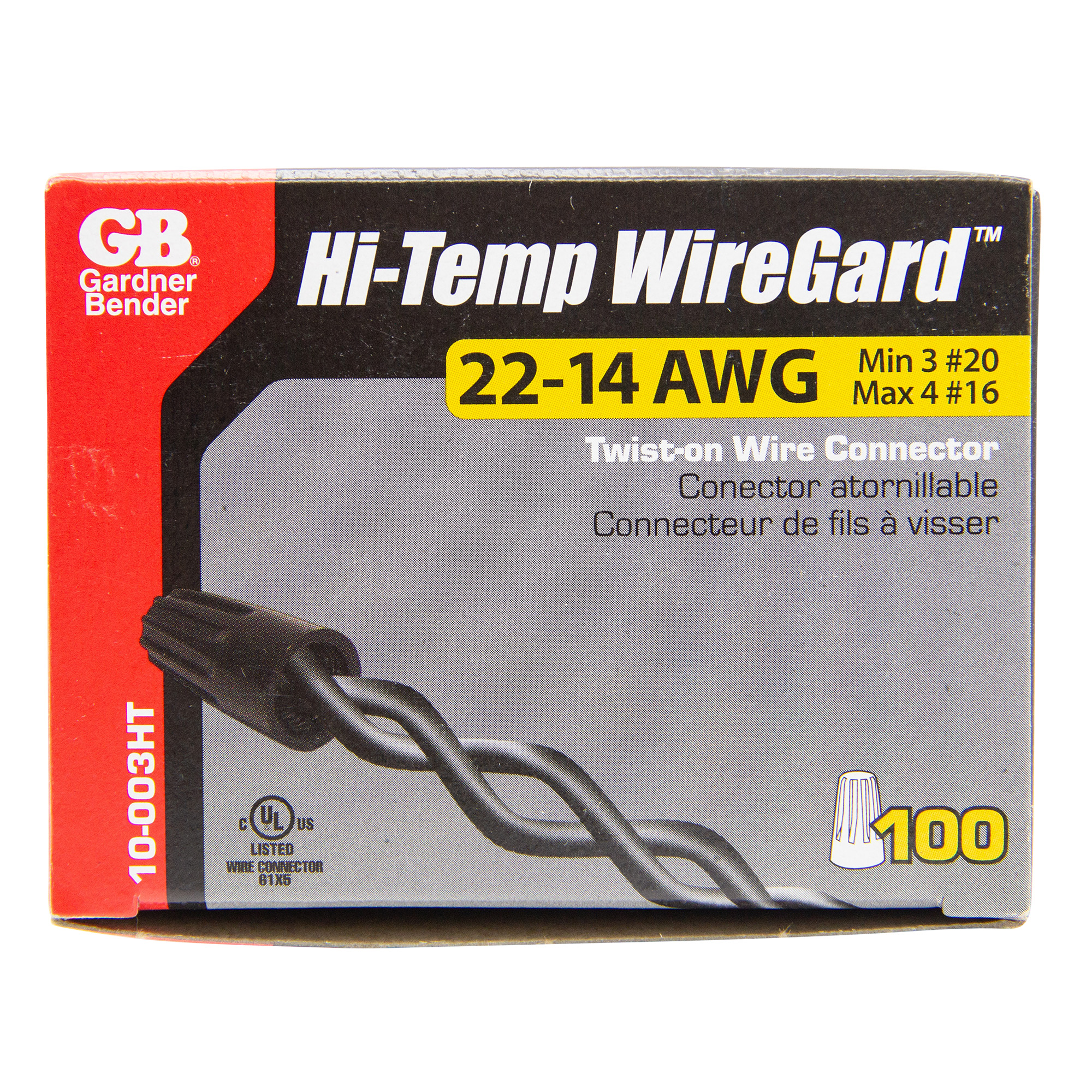

WireGard High Performance Hi-Temperature Twist-on Wire Connector, Black #22-#14 AWG (2 mm²); 10000/Box
Part # 27-003
Gardner Bender Wire Connectors are engineered to exceed the expectations of professional electricians. Perfect for commercial or residential More...
WHERE TO BUY
Gardner Bender Wire Connectors are engineered to exceed the expectations of professional electricians. Perfect for commercial or residential applications GB Wire Connectors offer world-class quality, performance and application versatility. Hi-Temp twist-on wire connectors are specifically designed to withstand hi temperature and other tough environments. Manufactured with high-temperature-rated plastic that is grooved for comfortable twisting. Designed for copper to copper wire connections from 18 to 10 AWG.
- Temp. rated to 150 deg C (302 deg F)
- Black color designates hi-temp rating
- Comfortable grip for easy twist-on application
- Performs in environments of extreme temperatures without failing to protect wire connection
- Rated at 600V max in building wire and at 1000V max in lighting, fixtures/luminaries and signs
| Warranty | Standard 1 year |
| Model | GB-3 |
| RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
| Color | Black |
| Out of Package Height (in) | 0.84 |
| Out of Package Width (in) | 0.33 |
| Out of Package Length/Depth (in) | 0.43 |
| Each in Package Height (in) * | 13.4 |
| Each in Package Width (in) * | 12.4 |
| Each in Package Length/Depth (in) * | 13 |
| Each in Package Weight (lbs) * | 39.44 |
| Inner Pack Weight (lbs) * | 39.44 |
