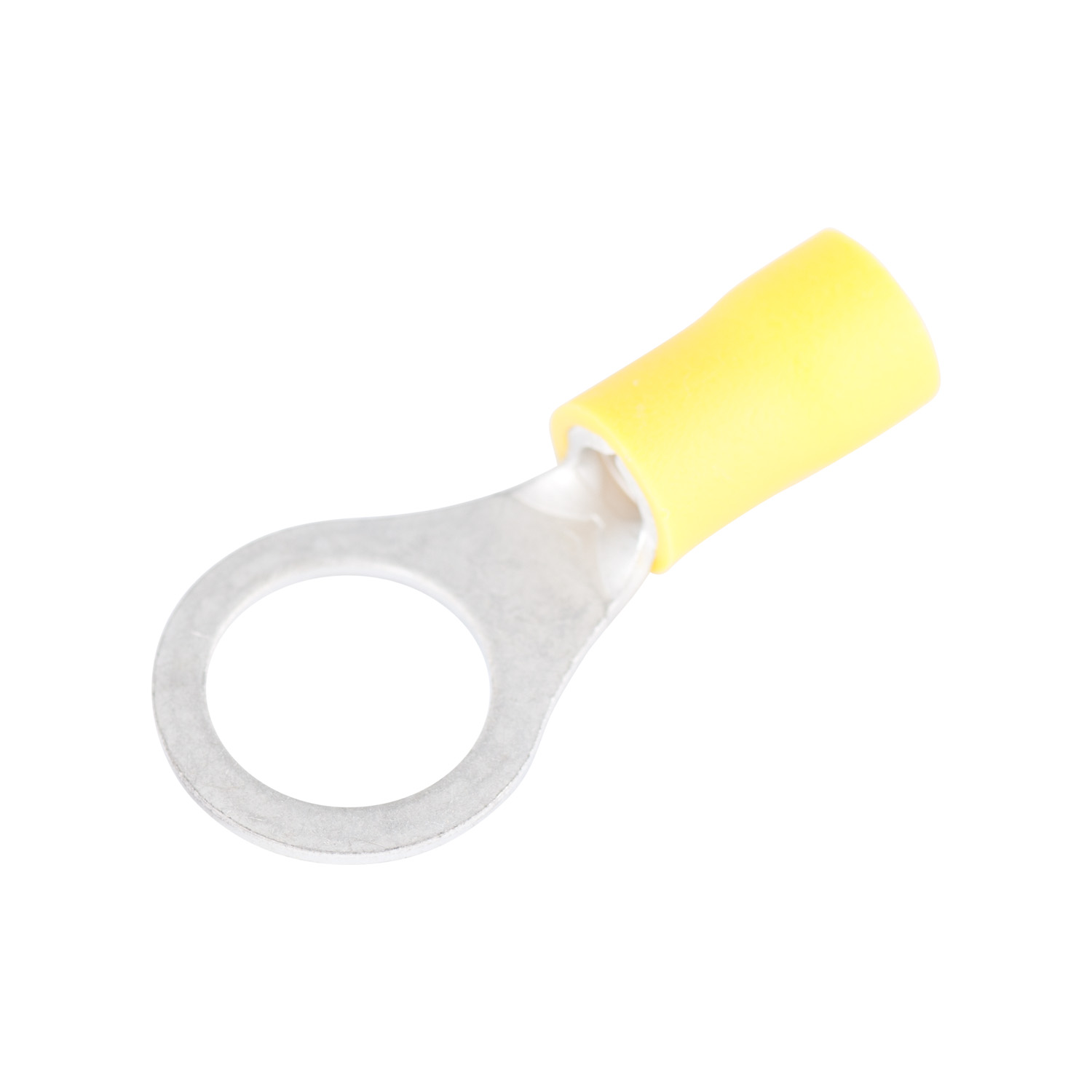

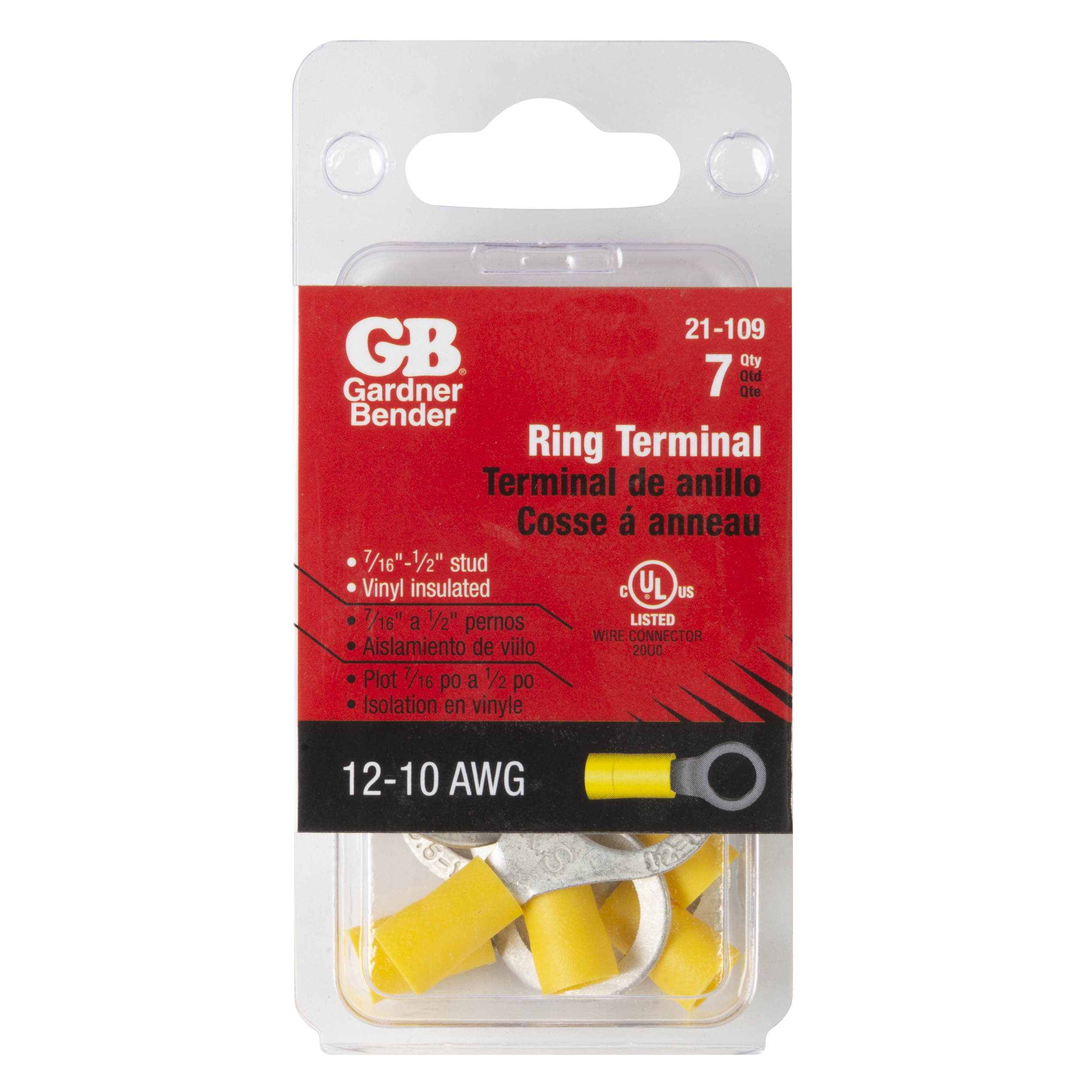

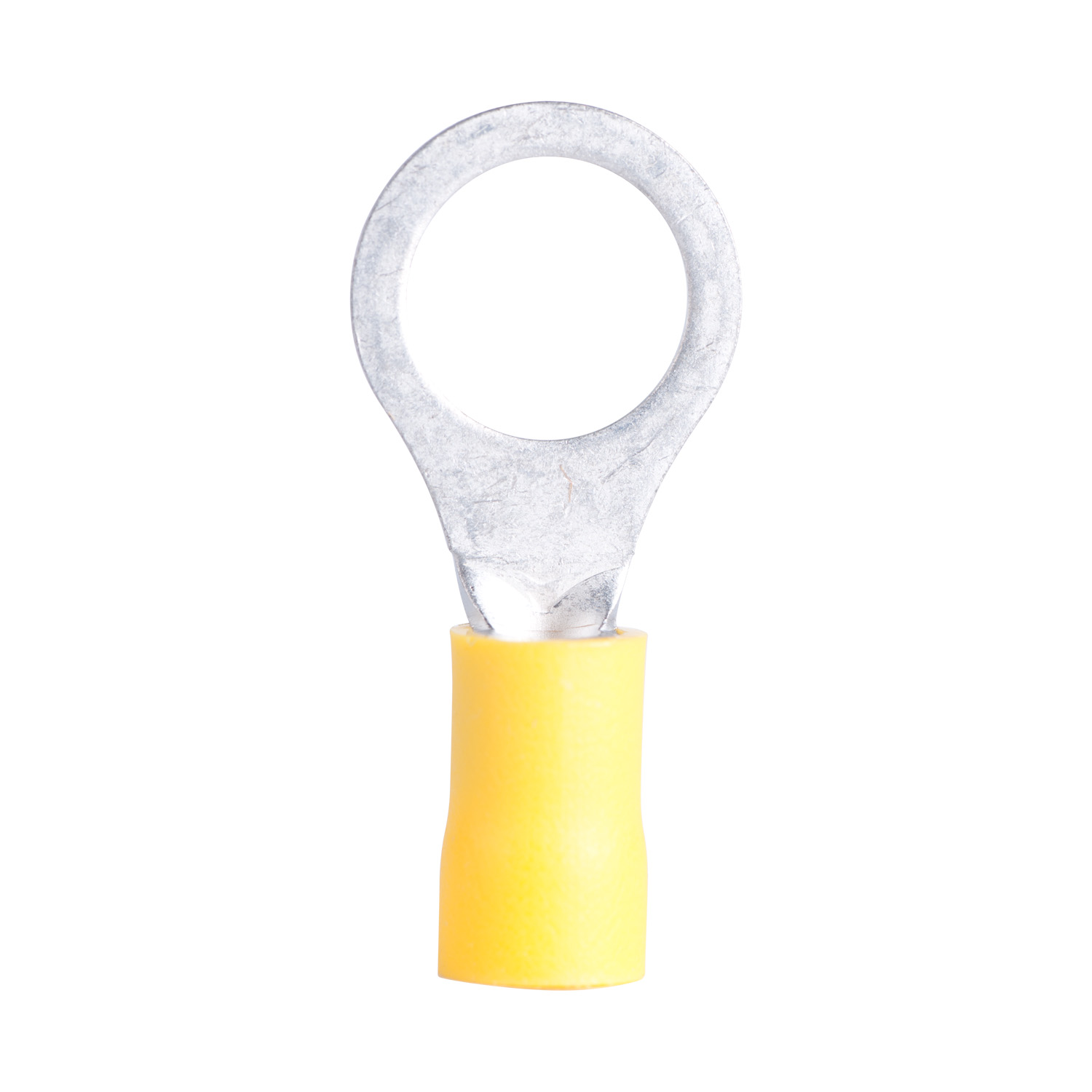

#12-#10 AWG (5 mm²) Vinyl-Insulated Ring Terminals (7/16" to 1/2" Stud)
Part # 21-109
The Gardner Bender™ quick and always-reliable crimp-type wire terminals feature color-coded barrels denoting industry standard wire gauge sizes. More...
WHERE TO BUY
The Gardner Bender™ quick and always-reliable crimp-type wire terminals feature color-coded barrels denoting industry standard wire gauge sizes. Available in ring, spade, disconnect, and bullet styles. Vinyl insulated barrels provide a high degree of protection and carry a maximum 600V rating. Temperature ratings for the complete line are 75°C (167°F). You will find various terminals for various circuit protection devices, all insulated to last for those any environments. GB™ terminals are leading the industry in quality and durability.
- Stud Size: 7/16 inch to ½ inch
- INDUSTRY STANDARD Color-coded by wire gauge size
- QUICK and RELIABLE crimp-type wire connectors
- UL Listed with both Canadian and U.S. requirements
| RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
| Out of Package Height (in) | 0.37 |
| Out of Package Width (in) | 0.62 |
| Out of Package Length/Depth (in) | 1.25 |
| Each in Package Height (in) * | 3.75 |
| Each in Package Width (in) * | 1.88 |
| Each in Package Length/Depth (in) * | 0.75 |
| Each in Package Weight (lbs) * | 0.066 |
| Inner Pack Weight (lbs) * | 0.33 |
