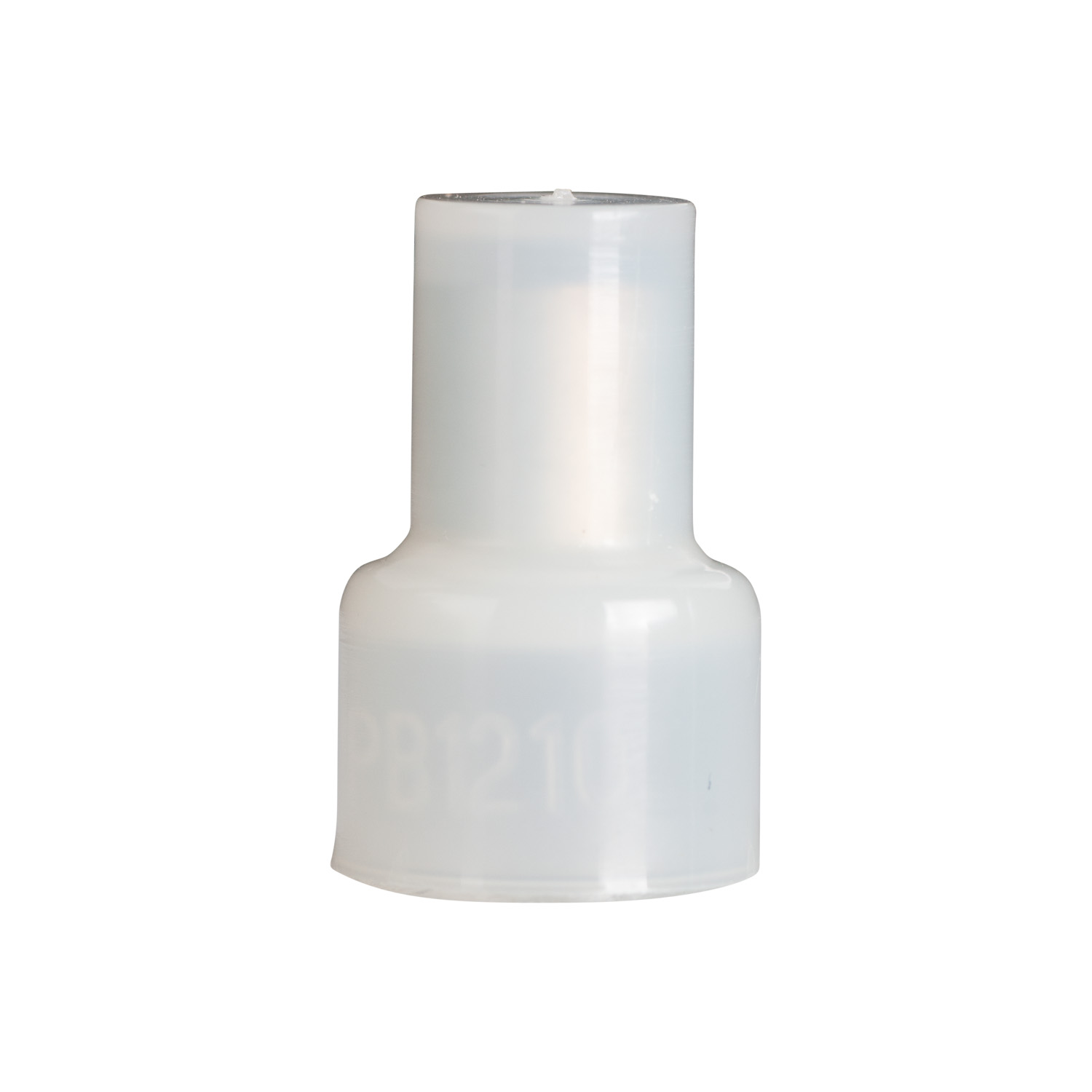

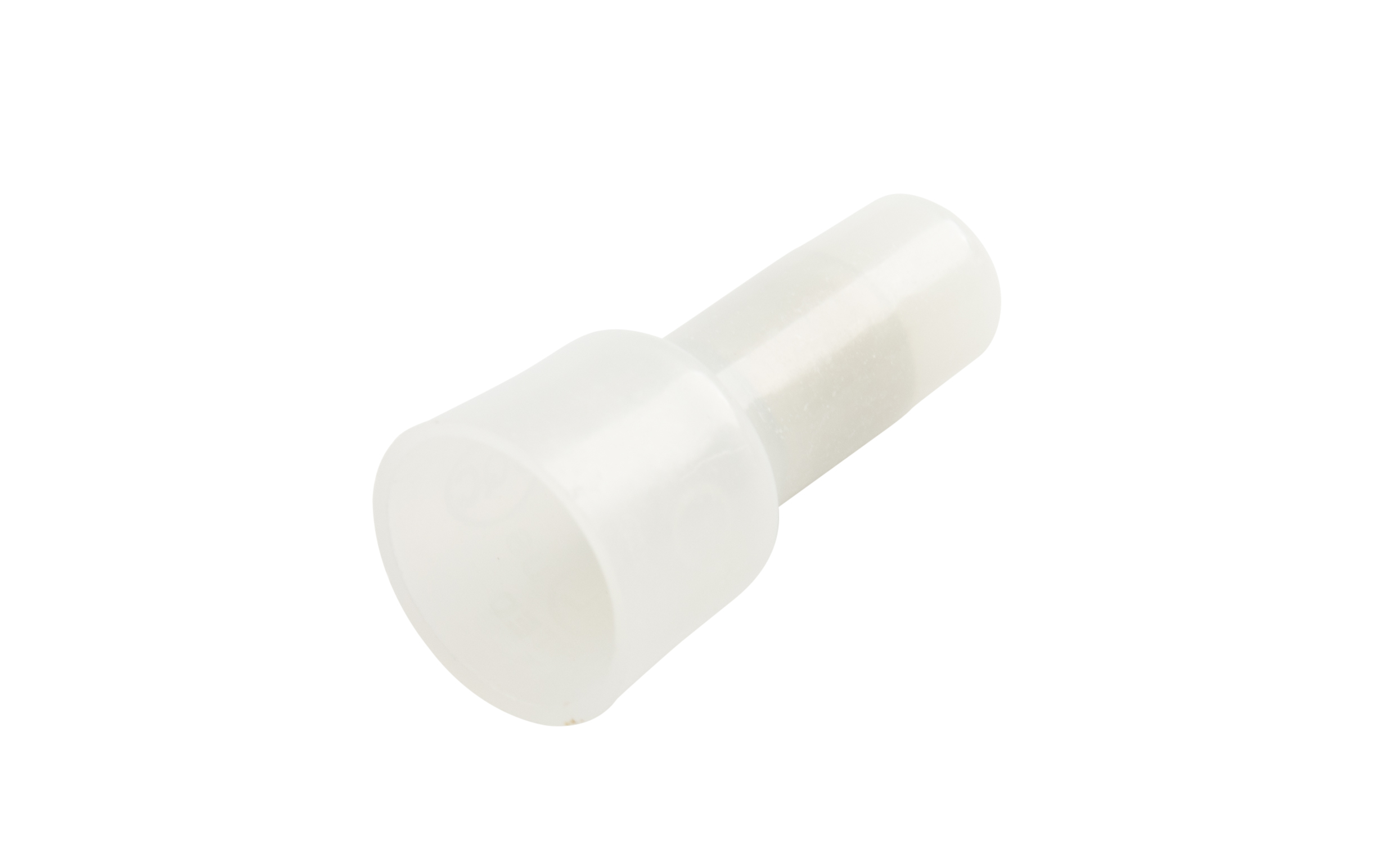

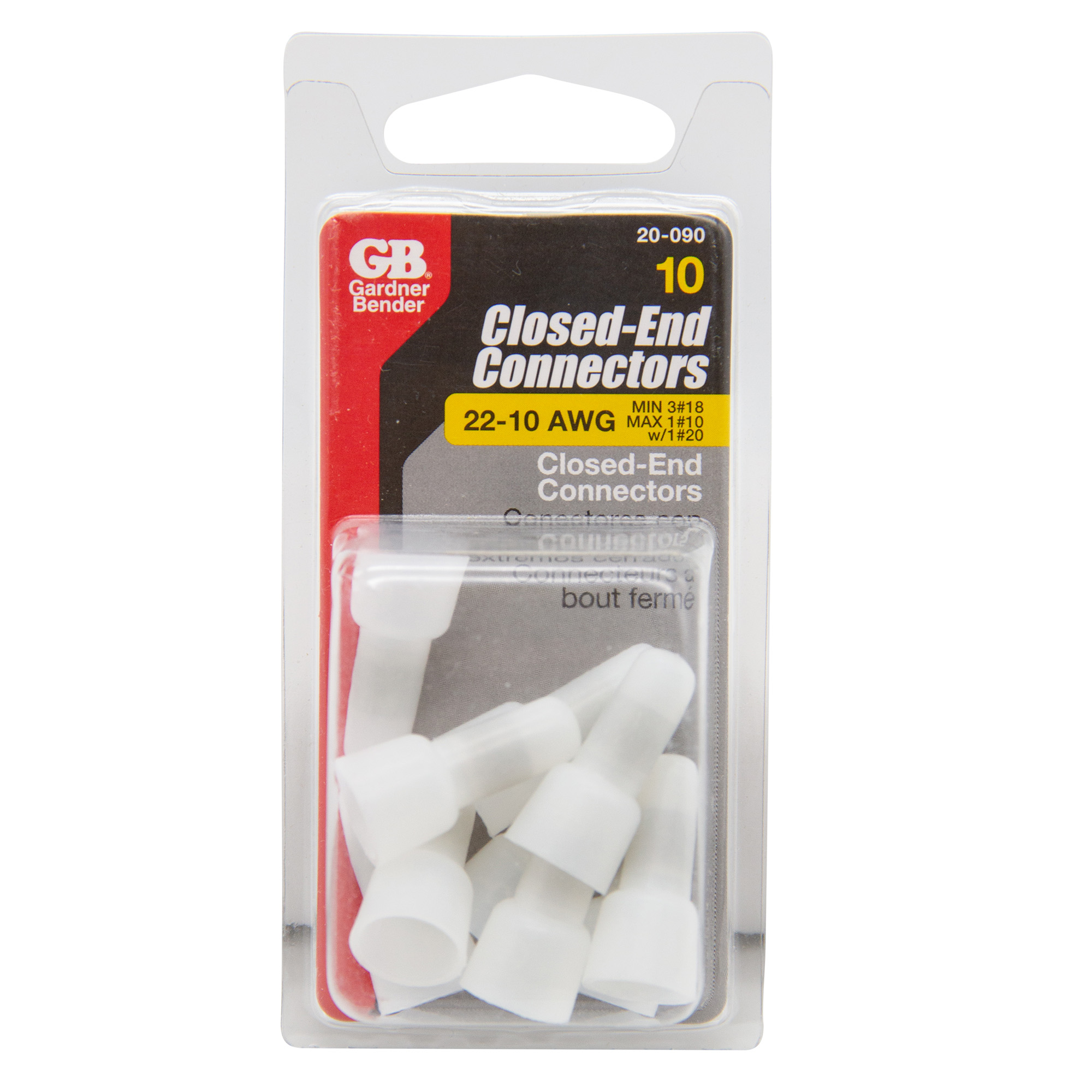

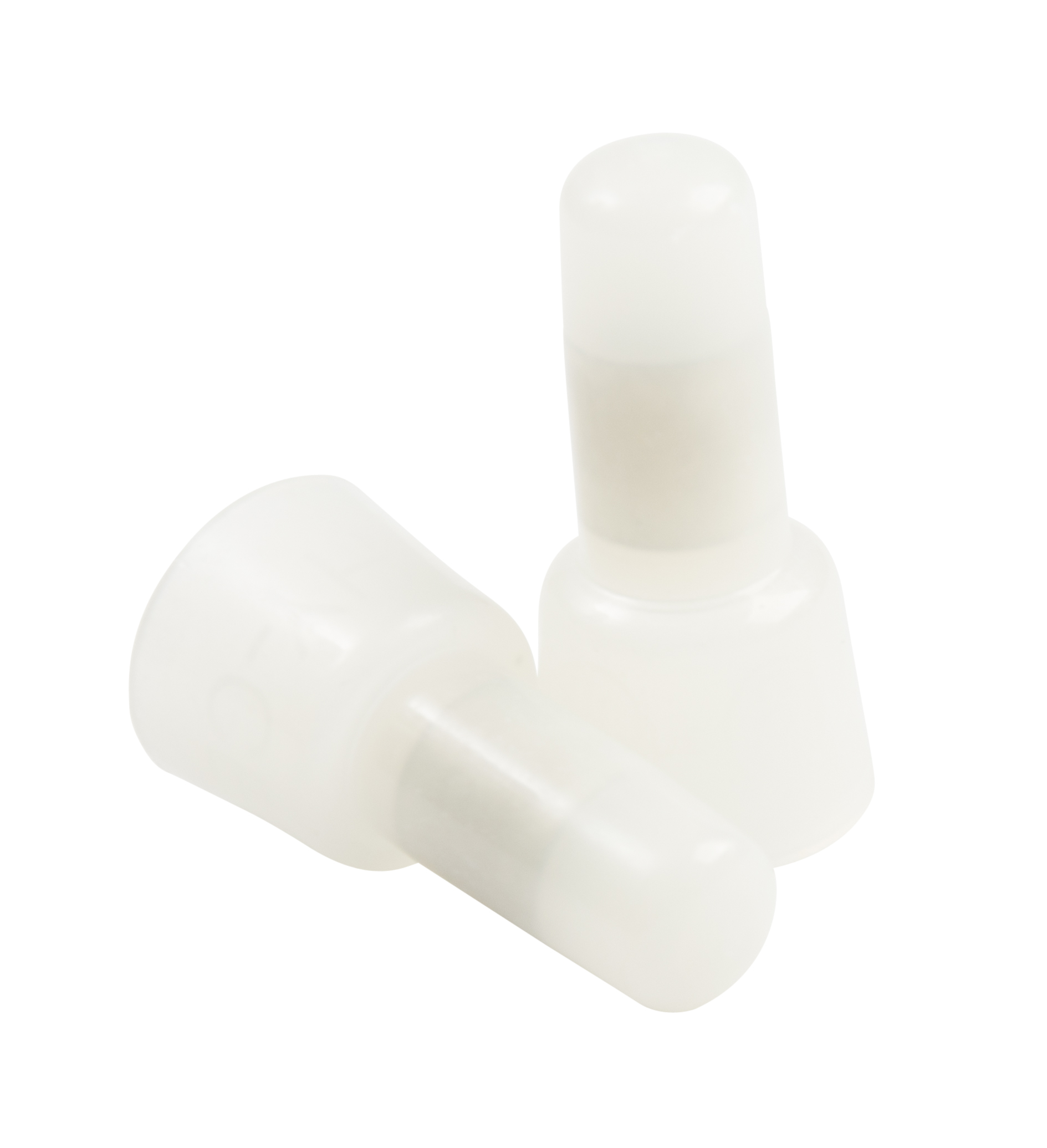

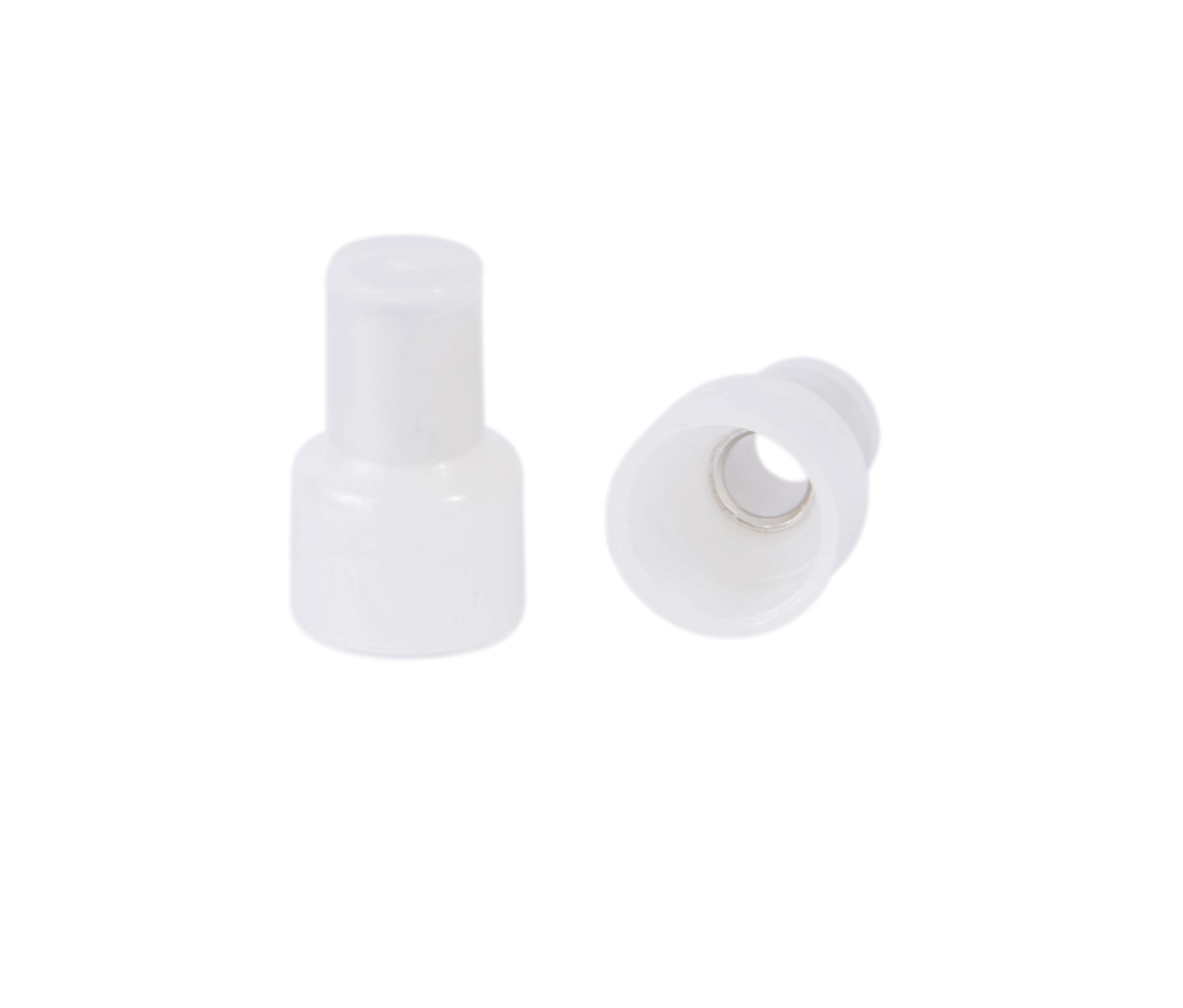

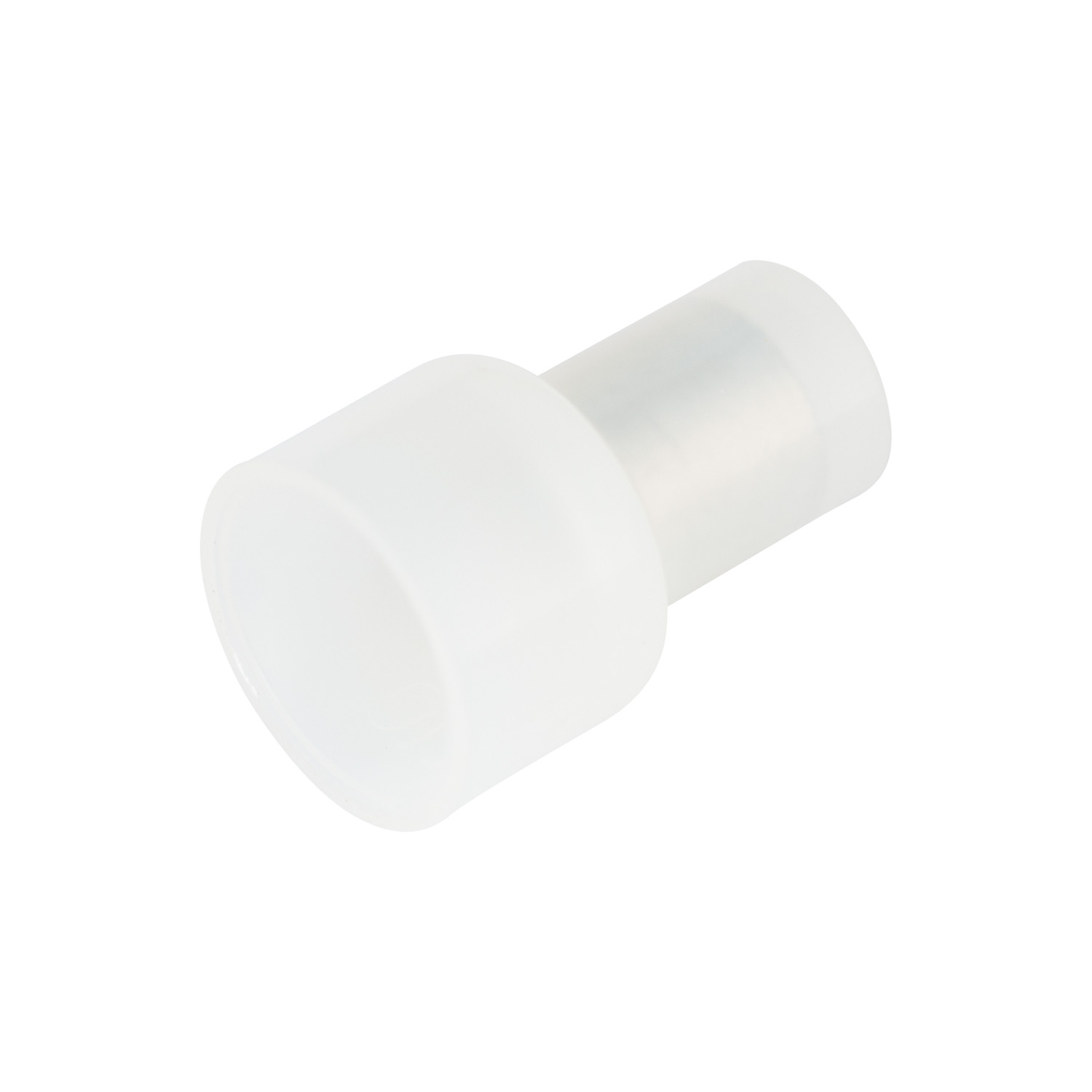

#22 - #10 AWG Closed-End Pigtail Crimp Connector, Tin Plated Copper with Insulated Nylon, Resists Vibration, White, 10/Pk
Part # 20-090
Closed end connectors are ideal for making a simple connection of two or more wires to create a pigtail connection. The pigtail connector is a closed More...
WHERE TO BUY
Closed end connectors are ideal for making a simple connection of two or more wires to create a pigtail connection. The pigtail connector is a closed end, crimp on wire connector used to secure electrical connection points. The proper installation method is to connect the wires together first, and then add a pigtail connector and crimp tight to provide a safe, secure and stable connection particularly in applications subject to vibration. Designed to be used with both solid and stranded wire these closed end connectors feature a tin-plated seamless copper sleeve with translucent nylon insulation. Connector rated for #22 - #10 AWG applications up to 300V with a Min: 3 - #18 and Max: 1 #10 w/ 1 #20. UL listed in US and Canada and CSA Certified.
- Translucent nylon insulation is corrosion and chemical resistant
- Tin-plated copper sleeve
- Seamless copper construction
- Designed for use with solid or stranded wire
- Ideal for applications requiring vibration resistance
| RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
| Out of Package Height (in) | 0.5 |
| Out of Package Width (in) | 0.5 |
| Out of Package Length/Depth (in) | 0.75 |
| Each in Package Height (in) * | 0.7 |
| Each in Package Width (in) * | 3 |
| Each in Package Length/Depth (in) * | 1.4 |
| Each in Package Weight (lbs) * | 0.058 |
| Inner Pack Weight (lbs) * | 0.29 |
