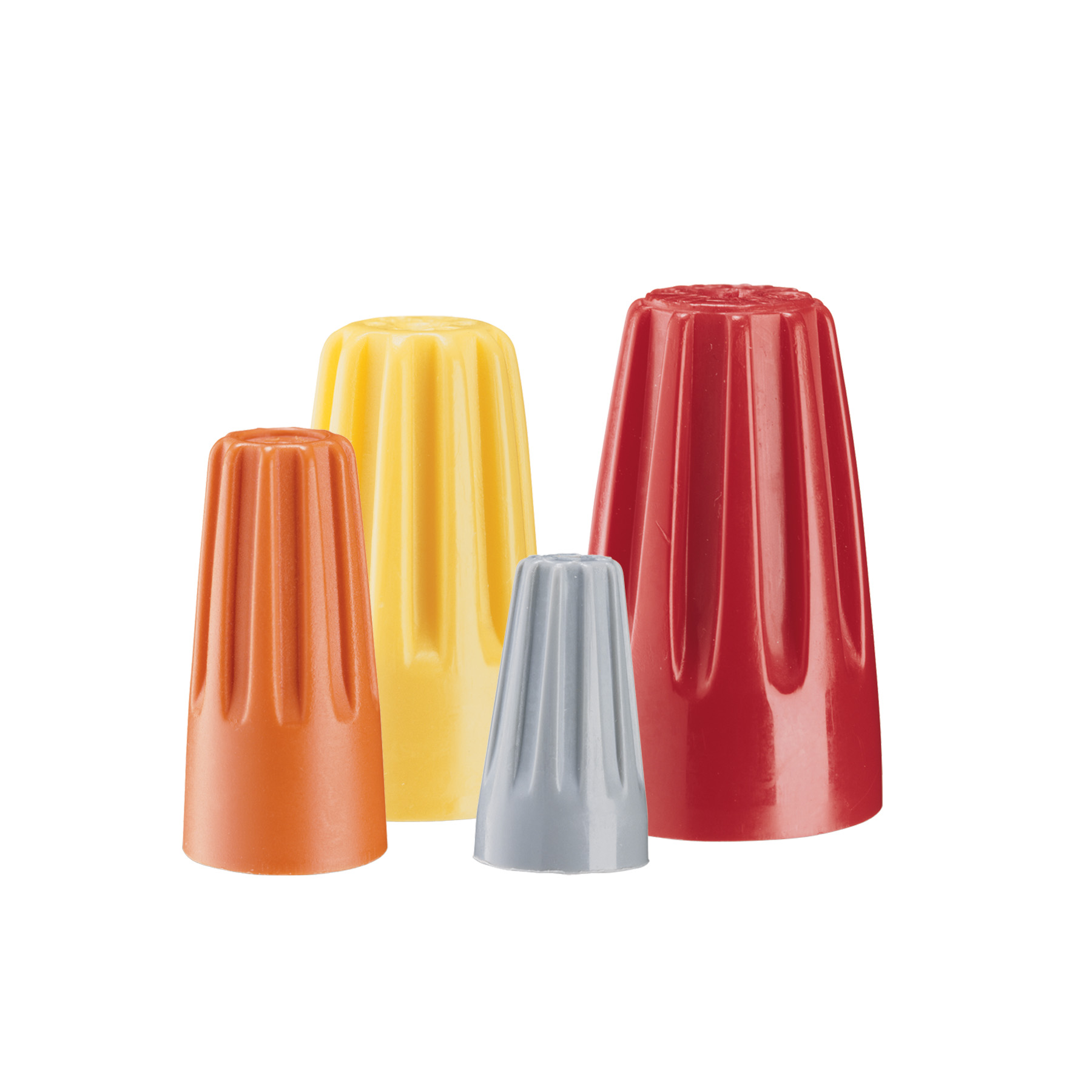

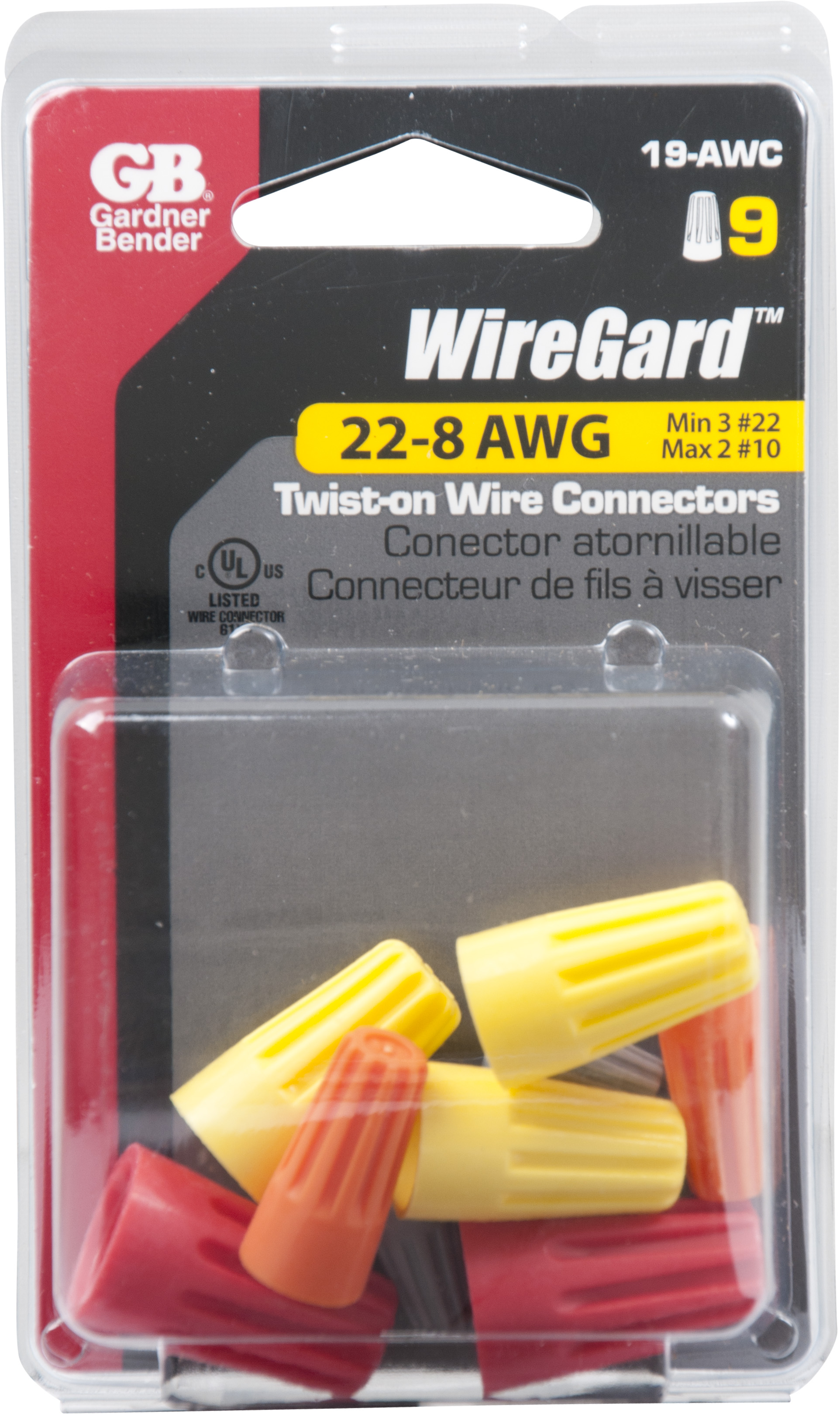

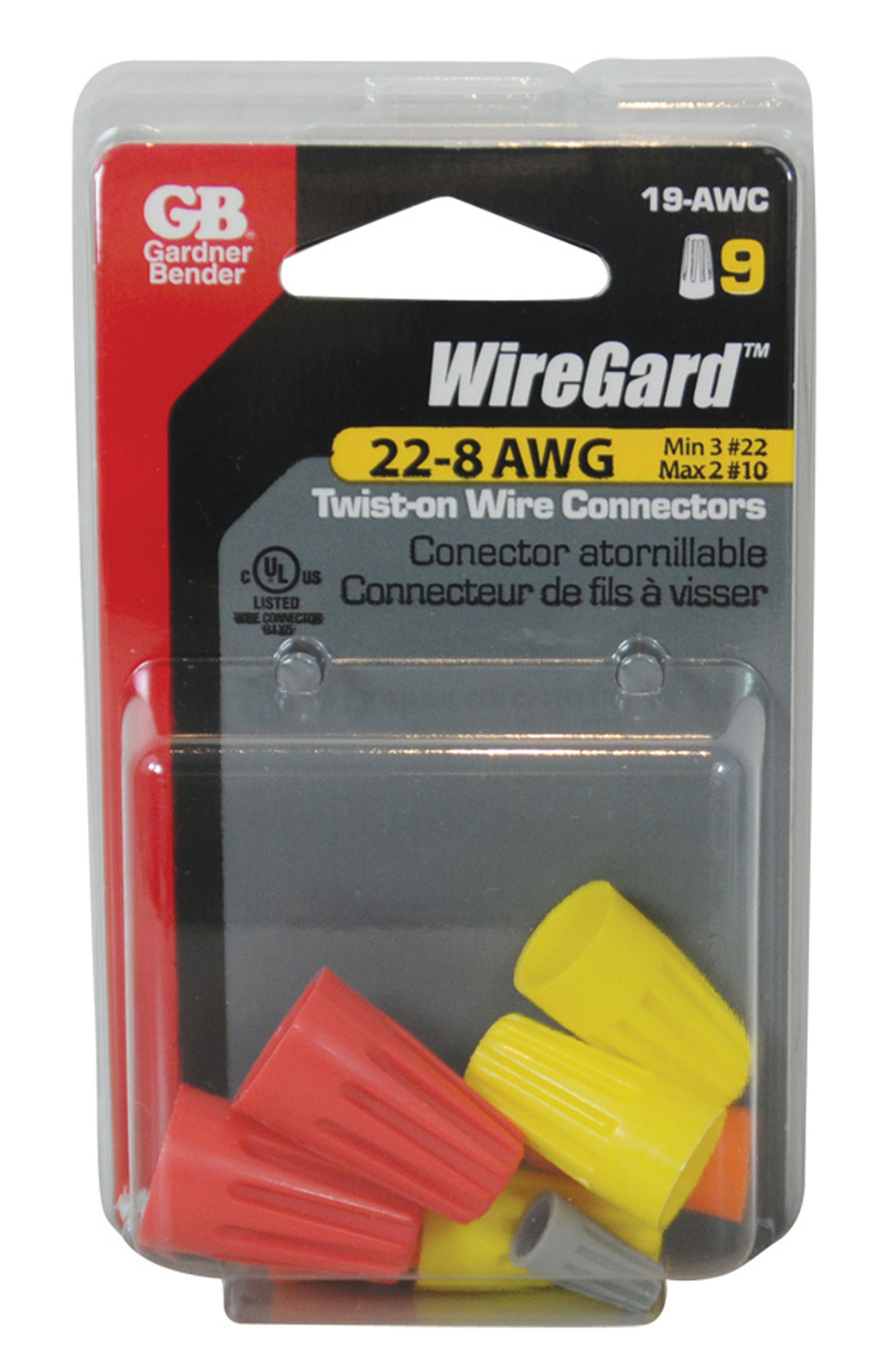

Assorted WireGard 2 Gray 2 Orange 3 Yellow 2 Red
Part # 19-AWC
Gardner Bender Wire Connectors are engineered to exceed the expectations of professional electricians. Perfect for commercial or residential More...
WHERE TO BUYGardner Bender Wire Connectors are engineered to exceed the expectations of professional electricians. Perfect for commercial or residential applications GB Wire Connectors offer world-class quality, performance, and application versatility. Our connecotors provide mazimum application flexibility by offereing contractors and do it yourselfers myraid packaging options, erogonomic designs and wire ranges, they are designed to require fewer turns to reach required torque and meet or exceed UL pull out and dielectric test requirements.
- Square-wire zinc-plated spring instantly adjusts to the shape and size of the splice
- Flame-retardant properties resist heat distortion up to 105 degrees Celsius/221 degrees Fahrenheit
- High-dielectric shell features deep skirt design to prevent exposure of bare wire
- Rated at 600V max in building wire and at 1000V max in lighting, fixtures/luminaries and signs
- Copper to copper connections only
RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
Out of Package Height (in) | 0.94 |
Out of Package Width (in) | 0.27 |
Out of Package Length/Depth (in) | 0.55 |
Out of Package Weight (oz) | 0.8 |
Each in Package Height (in) * | 1.4 |
Each in Package Width (in) * | 2.8 |
Each in Package Length/Depth (in) * | 4.7 |
Each in Package Weight (lbs) * | 0.075 |
Inner Pack Weight (lbs) * | 0.75 |
