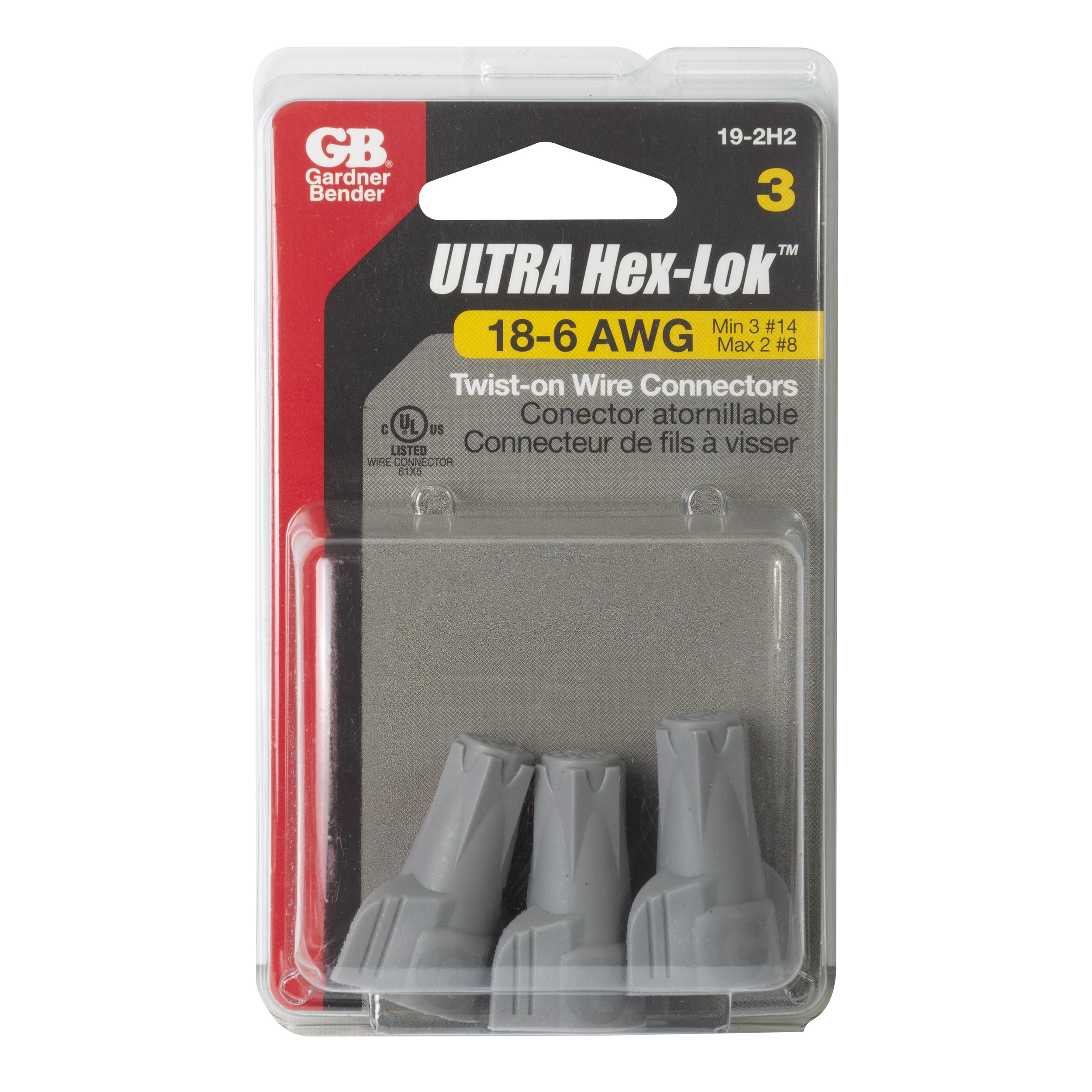

Hex-Lok ULTRA, Hex Head Multi-Range Winged Twist-On Wire Connectors with Over-Torque Protection, Gray, #14-#6 AWG; 3/Card
Part # 19-2H2
These multi-range hex-head connectors cover 95 percent of everyday applications making them the simple choice for all of your wire connection needs. More...
WHERE TO BUYThese multi-range hex-head connectors cover 95 percent of everyday applications making them the simple choice for all of your wire connection needs. Don't worry about using a hex tool to install - you can't over-torque this connector because it's patented hex-head design strips out at UL torque saving the wires and your fingers. Inside the connector a zinc-plated square wire spring ensures a secure connection that resists corrosion. The thermoplastic shell is designed for long-lasting strength and resists chemicals while the deep skirt supports smooth wire entry and coverage of stripped wires. Use for: Large appliances, Timers, Indoor lighting, Switches, Ballasts, Junction Box, Air conditioners
- Hex head design allows for automatic or manual installation without stress distortion
- Patented design can't be over-torqued, strips out at UL torque
- 5/16" or 7/16" hex driver installation option
- Streamlined design for compact installations

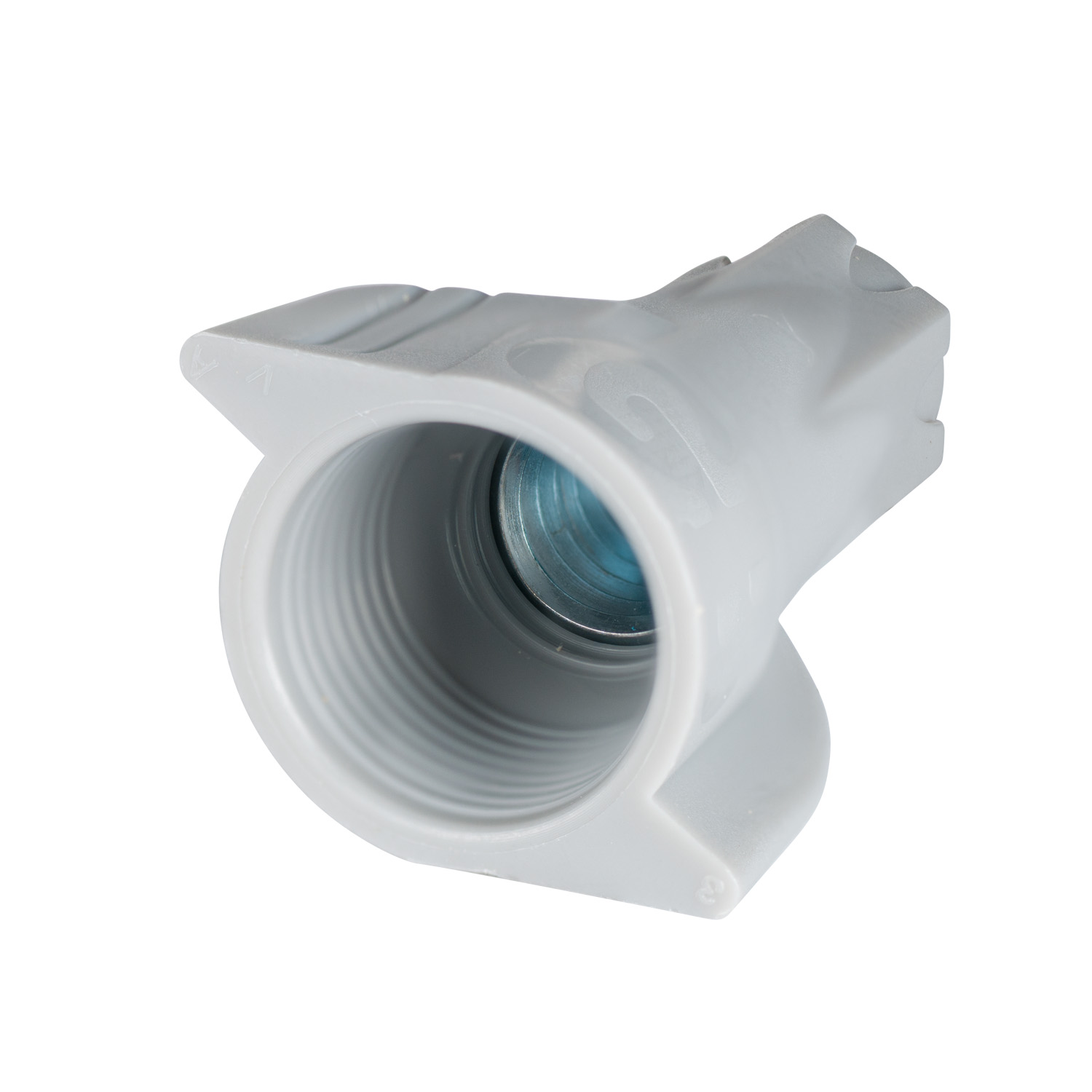

- Square wire spring grabs and holds wires for secure connections
- Long skirt covers stripped wires
- Rated at 600V max in building wire and at 1000V max in lighting, fixtures/luminaries and signs
- Copper to copper connections only
Model | H2 |
RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
Out of Package Height (in) | 0.44 |
Out of Package Width (in) | 0.41 |
Out of Package Length/Depth (in) | 1 |
Out of Package Weight (oz) | 0.8 |
Each in Package Height (in) * | 4.75 |
Each in Package Width (in) * | 2.75 |
Each in Package Length/Depth (in) * | 1 |
Each in Package Weight (lbs) * | 0.069 |
Inner Pack Weight (lbs) * | 0.69 |
