Uni-Lok Multi-Range Winged Twist-On Connector with Easy-Twist Nylon Housing - Red (500/Bag)
Part # 13-2G2
GB's exclusive Uni-Lok Universal Wire Connector is a versatile and cost effective connector designed to accept a wide range of wire combinations. More...
WHERE TO BUY

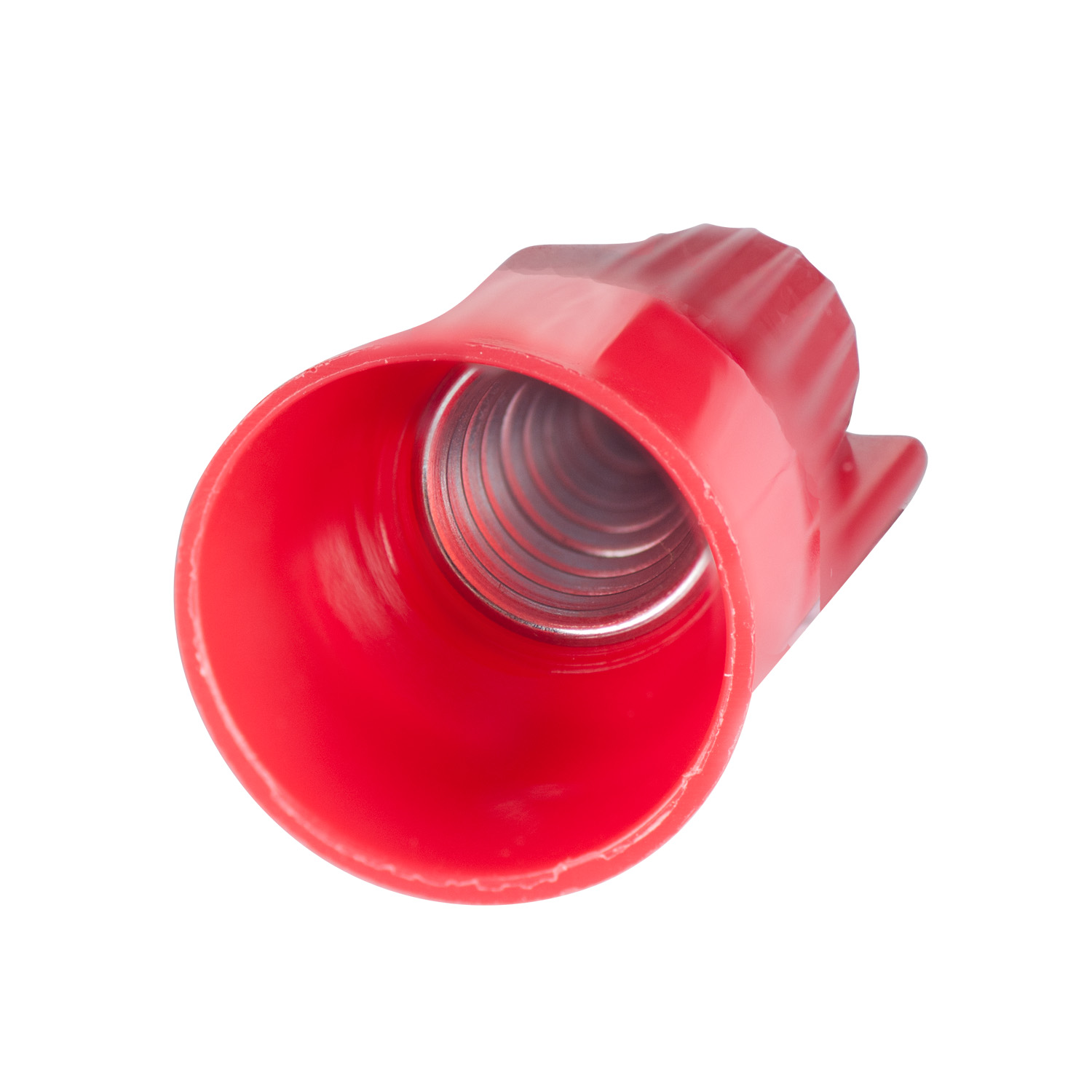

GB's exclusive Uni-Lok Universal Wire Connector is a versatile and cost effective connector designed to accept a wide range of wire combinations. Unlike other connectors made with a hard polypropylene shell these connectors feature a softer nylon shell designed for comfort while twisting and mini-wings to provide additional torque. The Uni-Lok features a long skirt to prevent exposure of bare wire while the zinc-plated square spring inside instantly adjusts to the shape and size of the wires upon insertion. Use for: Large appliances, indoor lighting, switches, and air conditioners.
- Square wire spring grabs and holds wires for secure connections
- Long skirt covers stripped wires
- Rated at 600V max in building wire and at 1000V max in lighting, fixtures, luminaries and signs
- Copper to copper connections only
| Warranty | Standard 1 year |
| Model | G2 |
| RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
| Color | Red |
| Out of Package Height (in) | 1.17 |
| Out of Package Width (in) | 0.42 |
| Out of Package Length/Depth (in) | 0.58 |
| Each in Package Height (in) * | 14 |
| Each in Package Width (in) * | 9 |
| Each in Package Length/Depth (in) * | 2.5 |
| Each in Package Weight (lbs) * | 3.094 |
| Inner Pack Weight (lbs) * | 15.47 |
