GreenGard Winged Twist-On Grounding Wire Connector With Corrosion Resistant Plating Protection, Green, #14-#10 AWG (5 mm²), 500/Bag
Part # 13-095
Specifically designed for making positive ground connections with a hole in the tip of the connector to feed ground wire through. GreenGard connectors More...
WHERE TO BUYBUY NOW

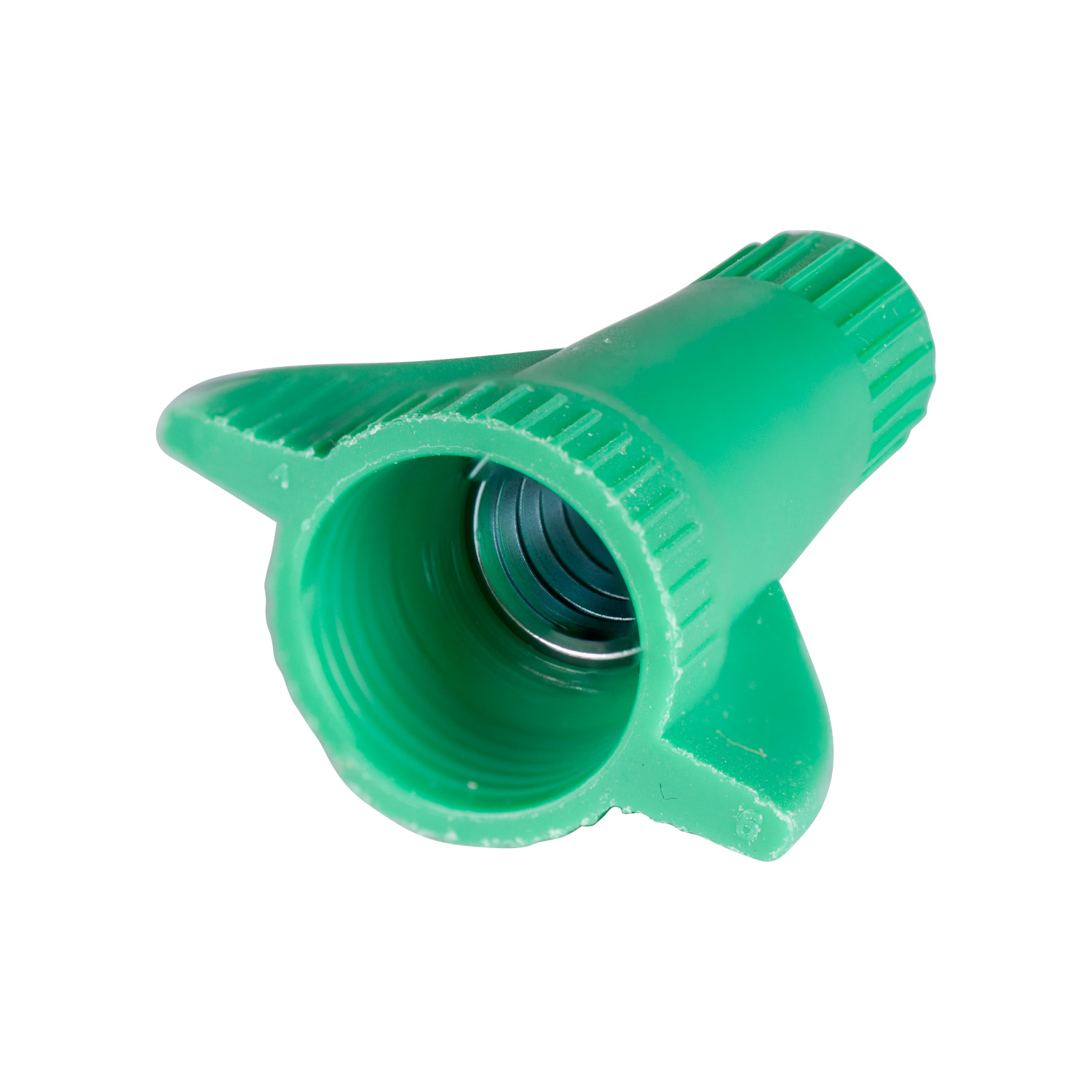

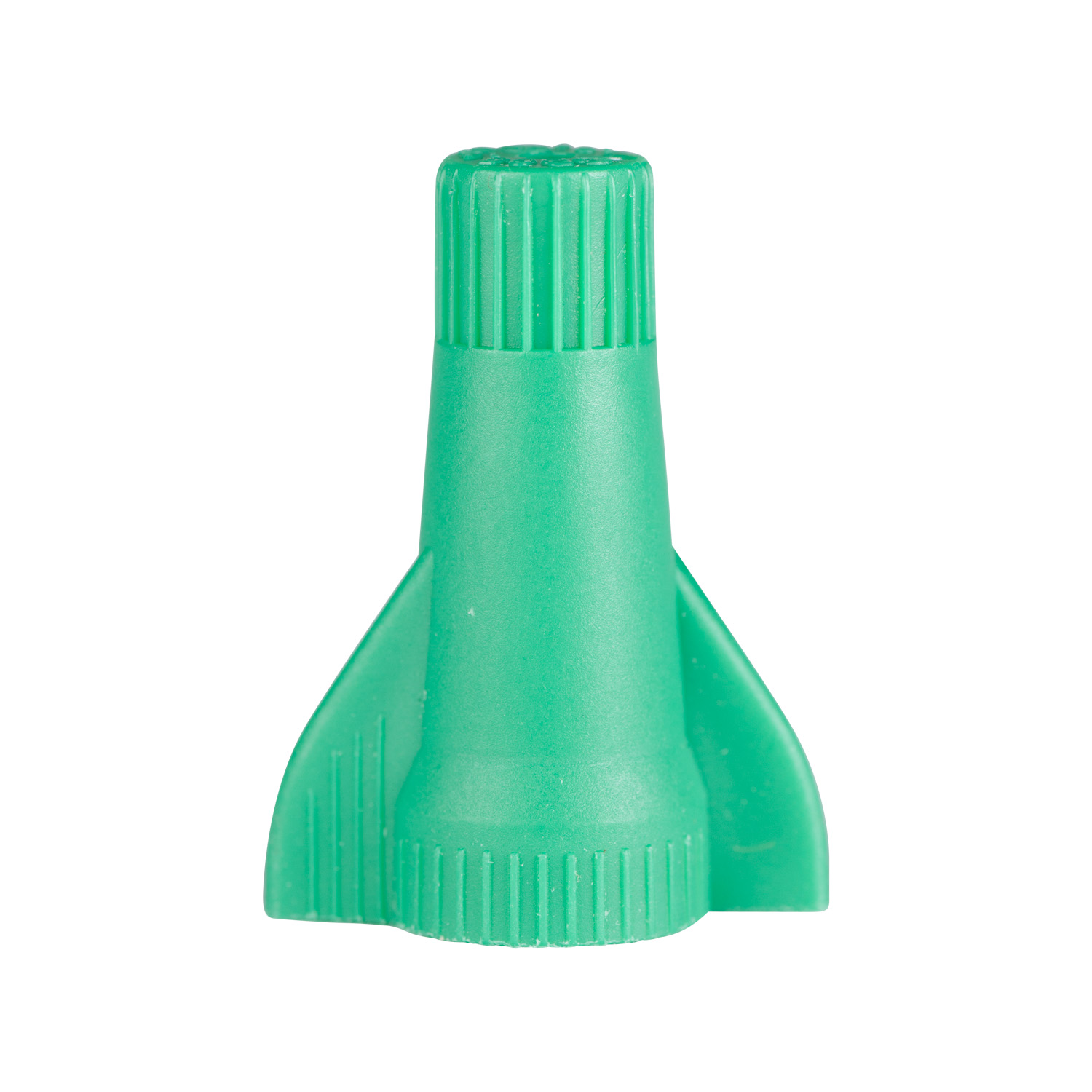

Specifically designed for making positive ground connections with a hole in the tip of the connector to feed ground wire through. GreenGard connectors feature the same live-action as GB WingGuard connectors with knurled wings for a sure grip and greater twisting leverage/torque. In addition GreenGard connectors offer added plating protection for corrosion resistance in grounding applications. Inside the connector a zinc-plated square wire spring ensures a secure connection that resists corrosion. The thermoplastic shell is designed for long-lasting strength and resists chemicals while the deep skirt supports smooth wire entry and coverage of stripped wires. Use for: Ground applications, Building wire, Lighting fixtures, luminaries and signs.
- Easier to use - New design enables torque-up with improved grip
- Contoured, offset wings enable firm ground connections
- Flame retardant thermoplastic shell resists punctures, cuts, abrasion and corrosion
- Connectors include hole in the tip for ground wire insertion
- Solid copper to copper connections only
| Warranty | Standard 1 year |
| Model | #95 |
| RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
| Color | Green |
| Out of Package Height (in) | 1.25 |
| Out of Package Width (in) | 0.31 |
| Out of Package Length/Depth (in) | 0.91 |
| Each in Package Height (in) * | 2.63 |
| Each in Package Width (in) * | 10.5 |
| Each in Package Length/Depth (in) * | 14.25 |
| Each in Package Weight (lbs) * | 2.96 |
| Inner Pack Weight (lbs) * | 14.83 |
