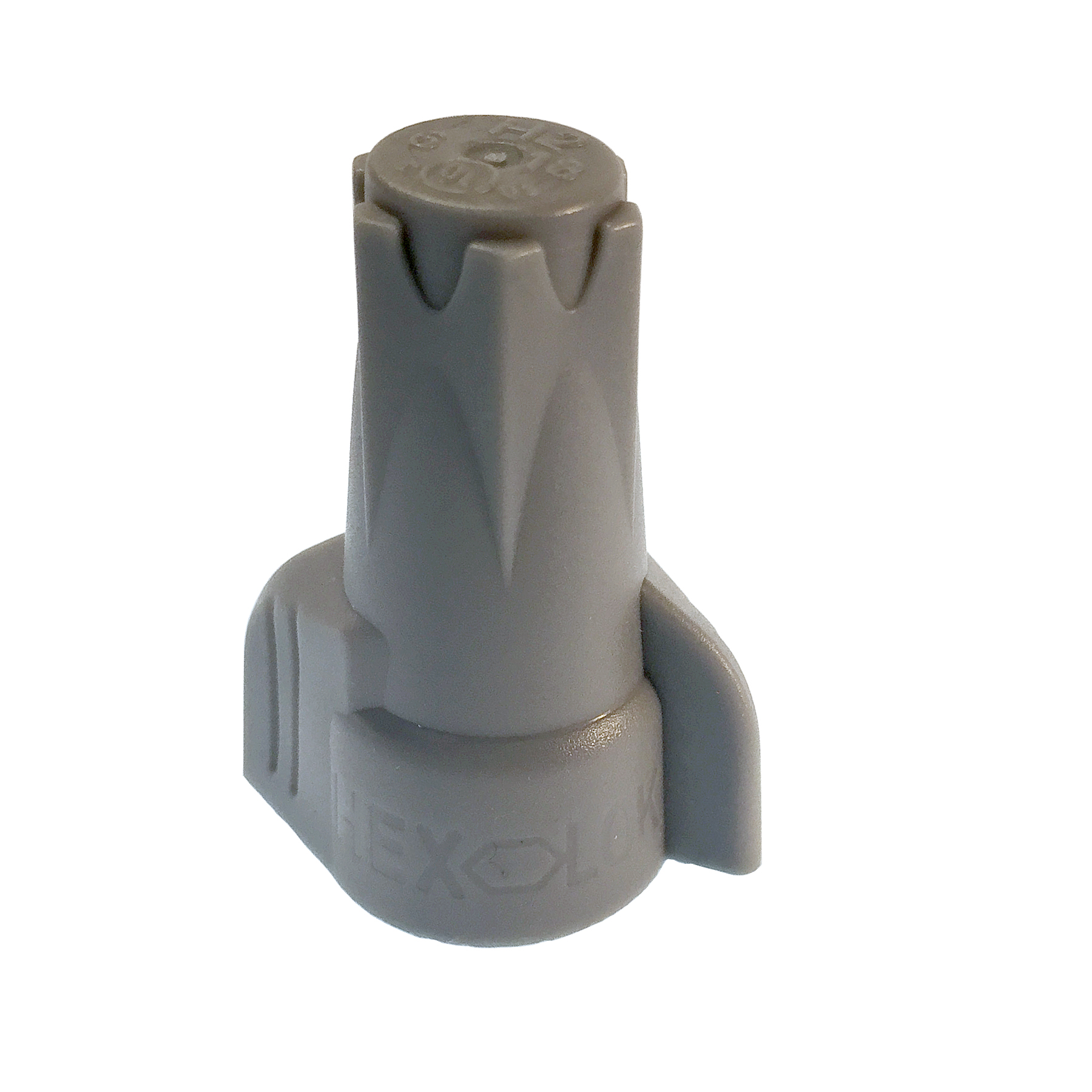

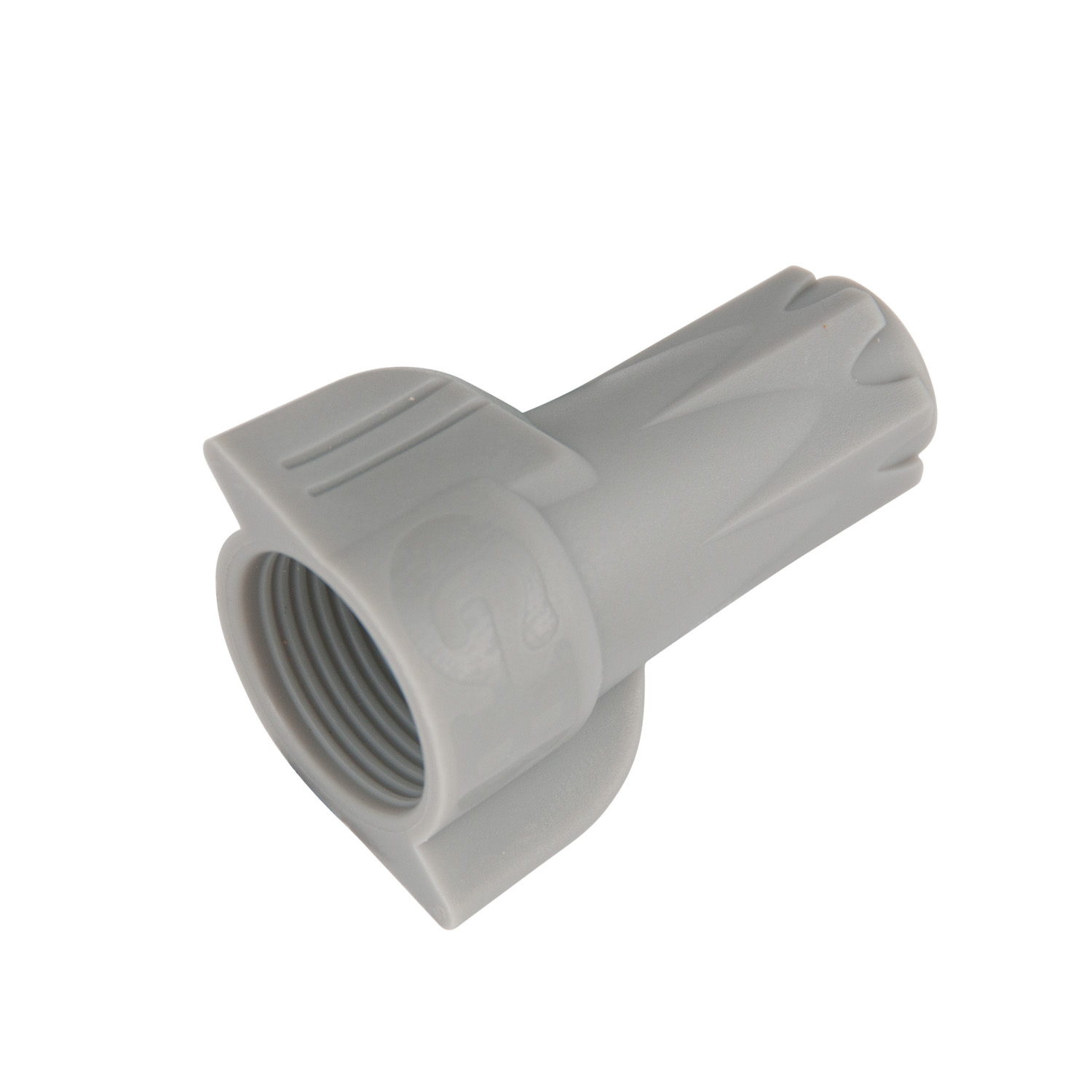

Hex-Lok, Gray H2; 16000/Barrel

Part # 12-2H2BU

These multi-range hex-head connectors cover 95 percent of everyday applications making them the simple choice for all of your wire connection needs. More...

WHERE TO BUY
      BUY NOW

These multi-range hex-head connectors cover 95 percent of everyday applications making them the simple choice for all of your wire connection needs. Don't worry about using a hex tool to install - you can't over-torque this connector because it's patented hex-head design strips out at UL torque saving the wires and your fingers. Inside the connector a zinc-plated square wire spring ensures a secure connection that resists corrosion. The thermoplastic shell is designed for long-lasting strength and resists chemicals while the deep skirt supports smooth wire entry and coverage of stripped wires. Use for: Large appliances, Timers, Indoor lighting, Switches, Ballasts, Junction Box, Air conditioners

  • Hex head design allows for automatic or manual installation without stress distortion
  • Patented design can't be over-torqued, strips out at UL torque
  • 5/16" or 7/16" hex driver installation option
  • Streamlined design for compact installations

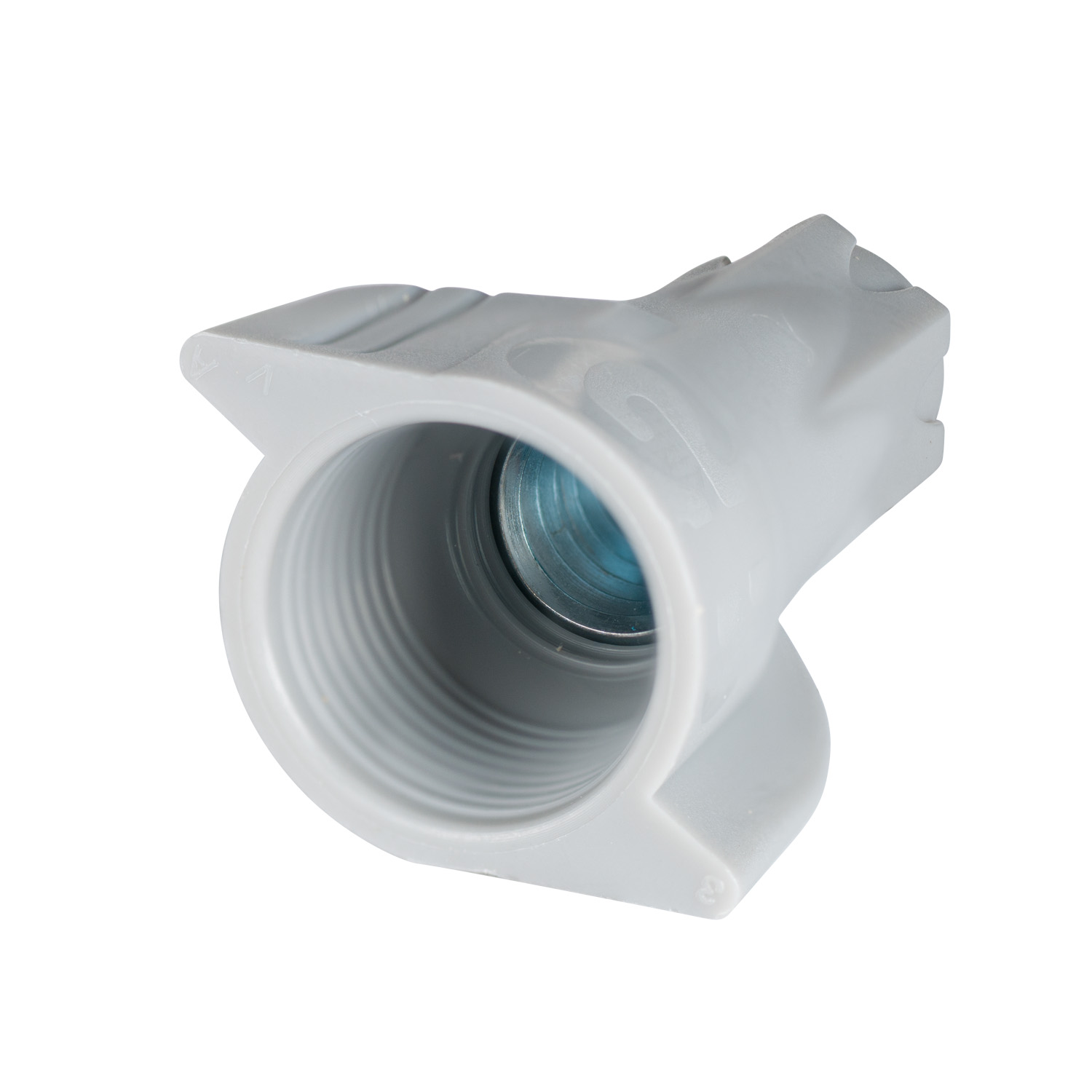

  • Square wire spring grabs and holds wires for secure connections
  • Long skirt covers stripped wires
  • Rated at 600V max in building wire and at 1000V max in lighting, fixtures/luminaries and signs
  • Copper to copper connections only

Model H2
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Out of Package Height (in) 0.44
Out of Package Width (in) 0.41
Out of Package Length/Depth (in) 1
Each in Package Height (in) * 29.13
Each in Package Width (in) * 20.5
Each in Package Length/Depth (in) * 20.5
Each in Package Weight (lbs) * 164
Inner Pack Weight (lbs) * 164
