Uni-Lok, Multi-Range Winged Twist-On Wire Connectors with Softer Easy-Twist Nylon Housing, Yellow, #22-#12 AWG (3 mm²); 100/Ctn
Part # 10-1G1
GB's exclusive Uni-Lok Universal Wire Connector is a versatile and cost effective connector designed to accept a wide range of wire combinations. More...
WHERE TO BUY

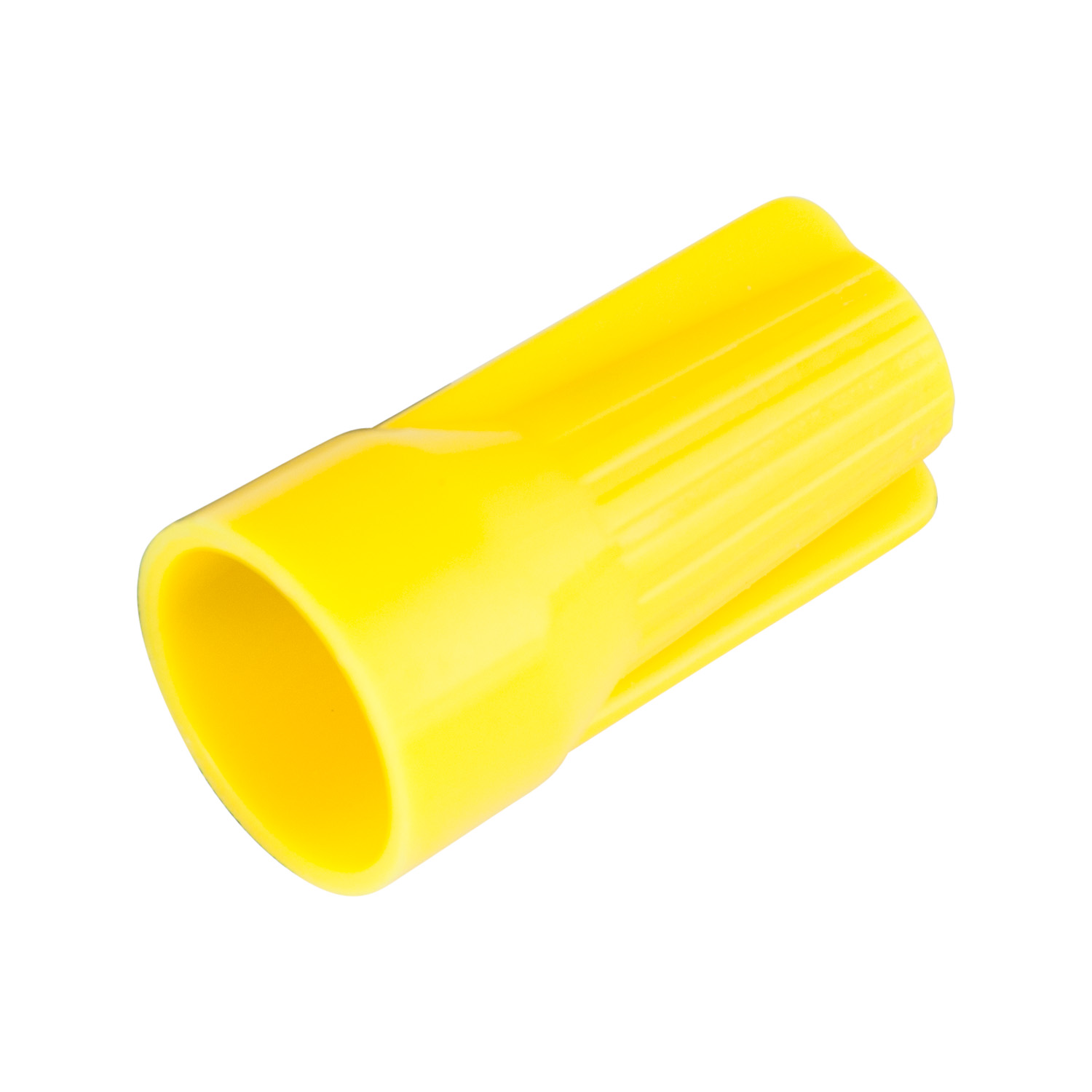

GB's exclusive Uni-Lok Universal Wire Connector is a versatile and cost effective connector designed to accept a wide range of wire combinations. Unlike other connectors made with a hard polypropylene shell these connectors feature a softer nylon shell designed for comfortable twisting and mini-wings to provide additional torque. The Uni-Lok features a long skirt to prevent exposure of bare wire while the zinc-plated square spring inside instantly adjusts to the shape and size of the wires upon insertion. Use for: Large appliances, Indoor lighting, Switches, Air conditioners
- Universal design, handles majority of wire connection needs
- Swept mini wings provide additional torque
- Nylon housing makes for softer more comfortable twist-on application
- Streamlined design for compact installations

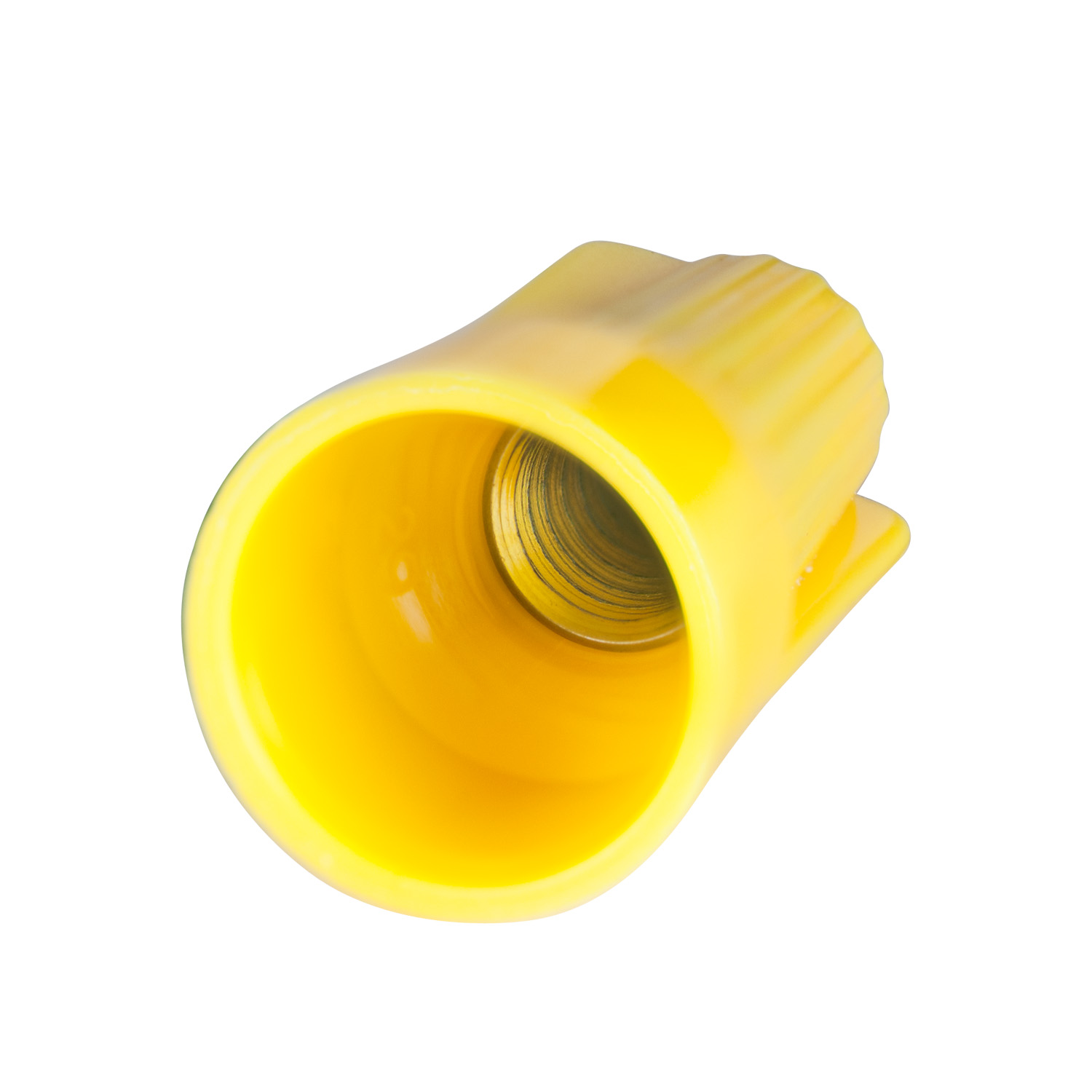

- Square wire spring grabs and holds wires for secure connections
- Long skirt covers stripped wires
- Rated at 600V max in building wire and at 1000V max in lighting, fixtures/luminaries and signs
- Copper to copper connections only
| Warranty | Standard 1 year |
| Model | G1 |
| RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
| Color | Yellow |
| Out of Package Height (in) | 0.98 |
| Out of Package Width (in) | 0.41 |
| Out of Package Length/Depth (in) | 0.48 |
| Each in Package Height (in) * | 2 |
| Each in Package Width (in) * | 4 |
| Each in Package Length/Depth (in) * | 3 |
| Each in Package Weight (lbs) * | 0.454 |
| Inner Pack Weight (lbs) * | 4.54 |
