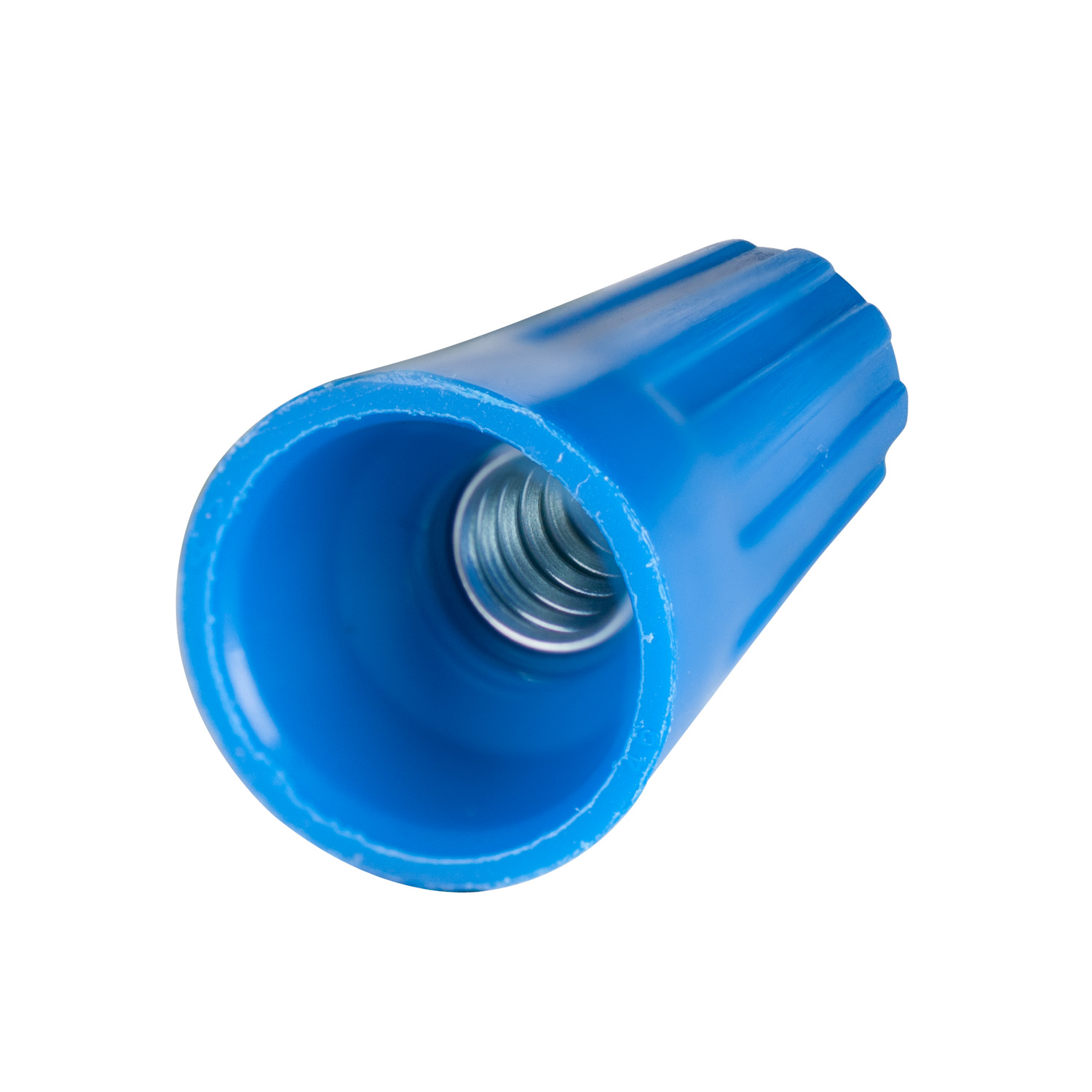

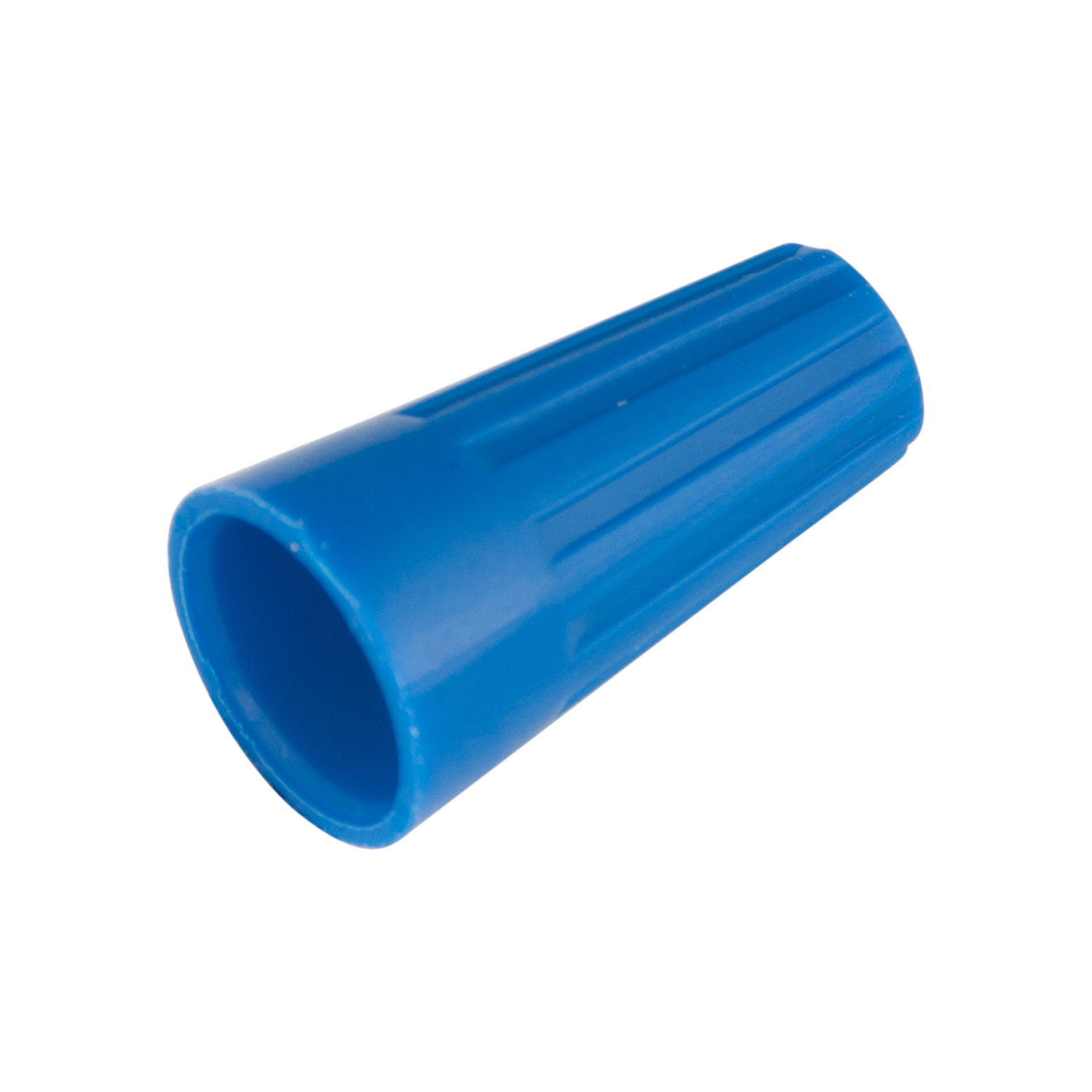

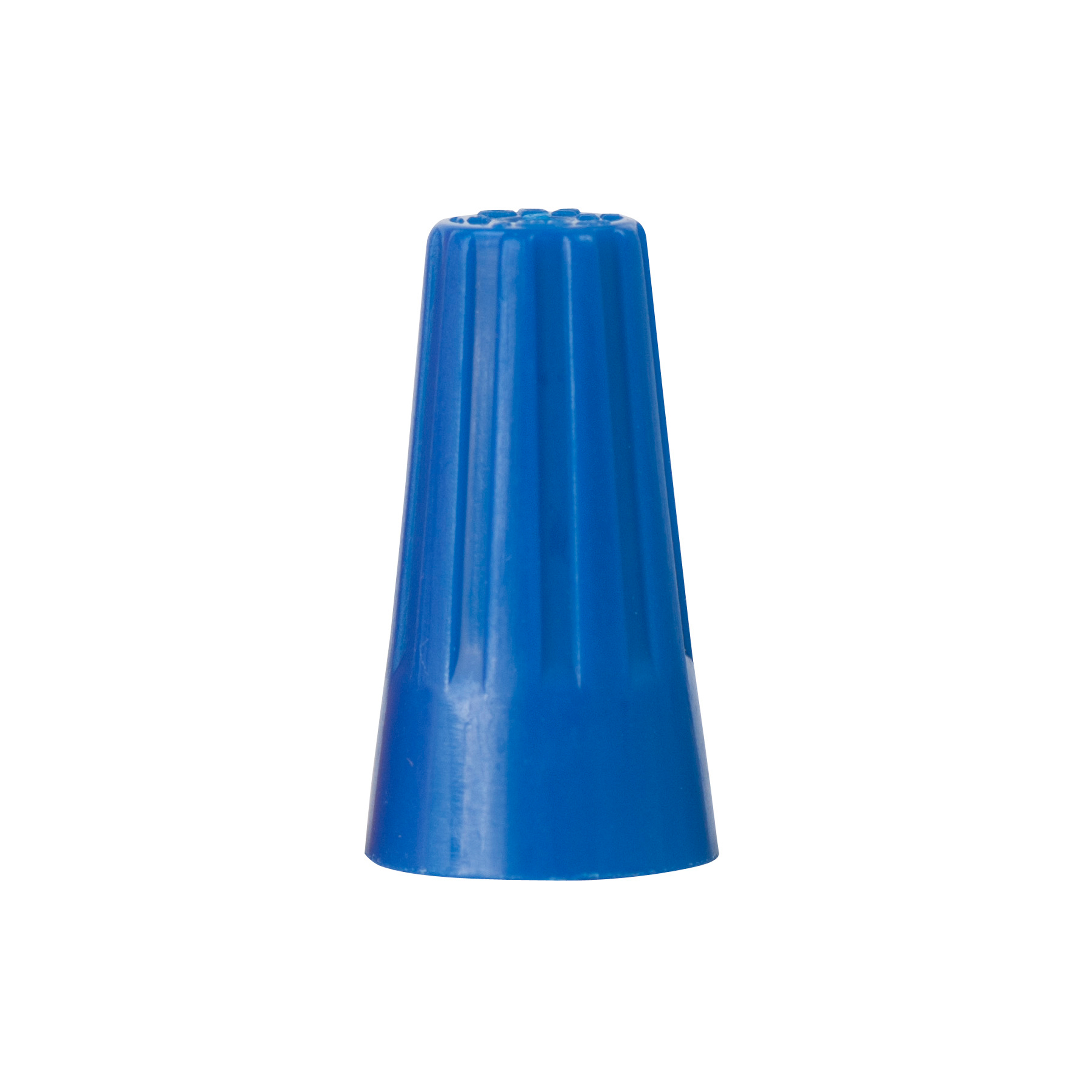

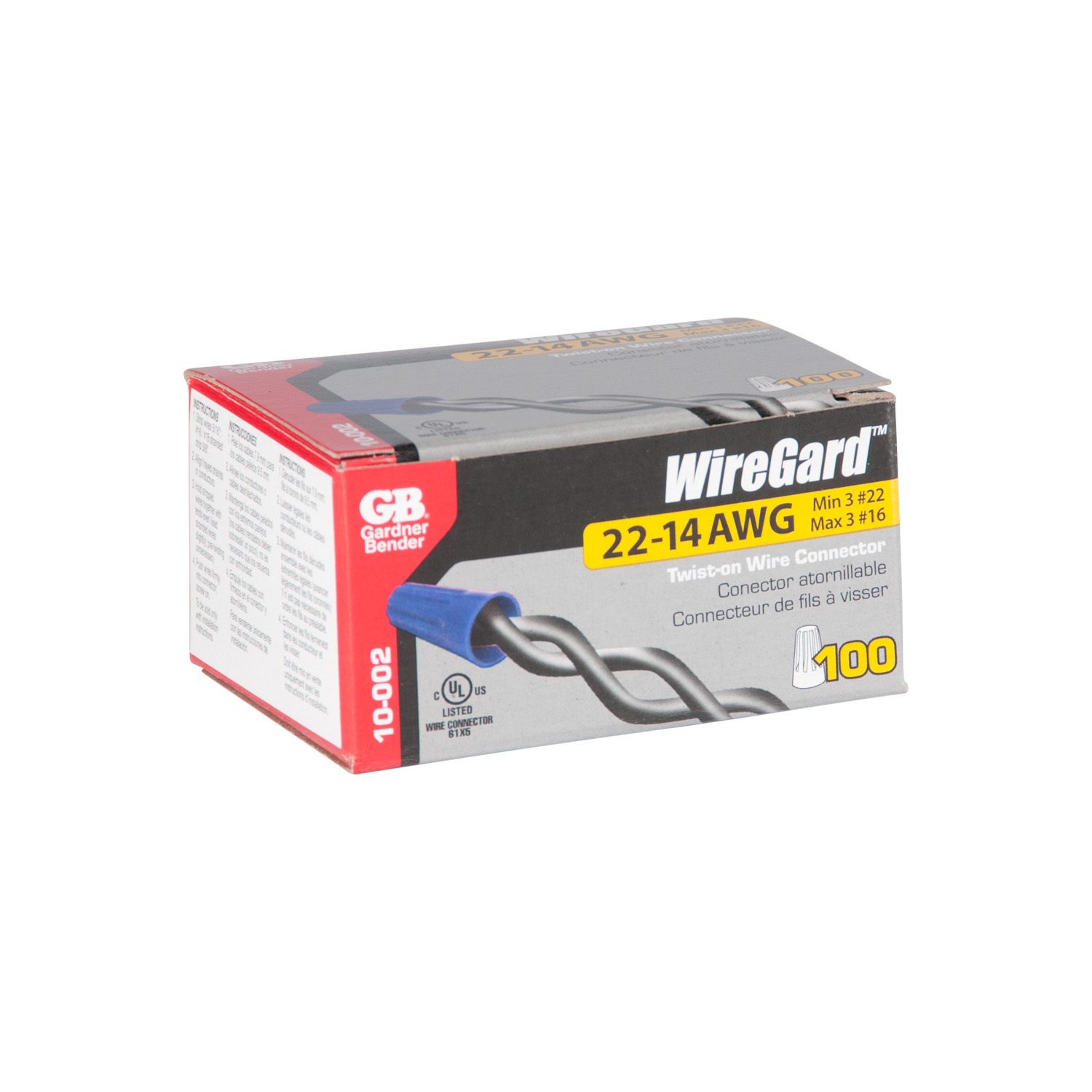

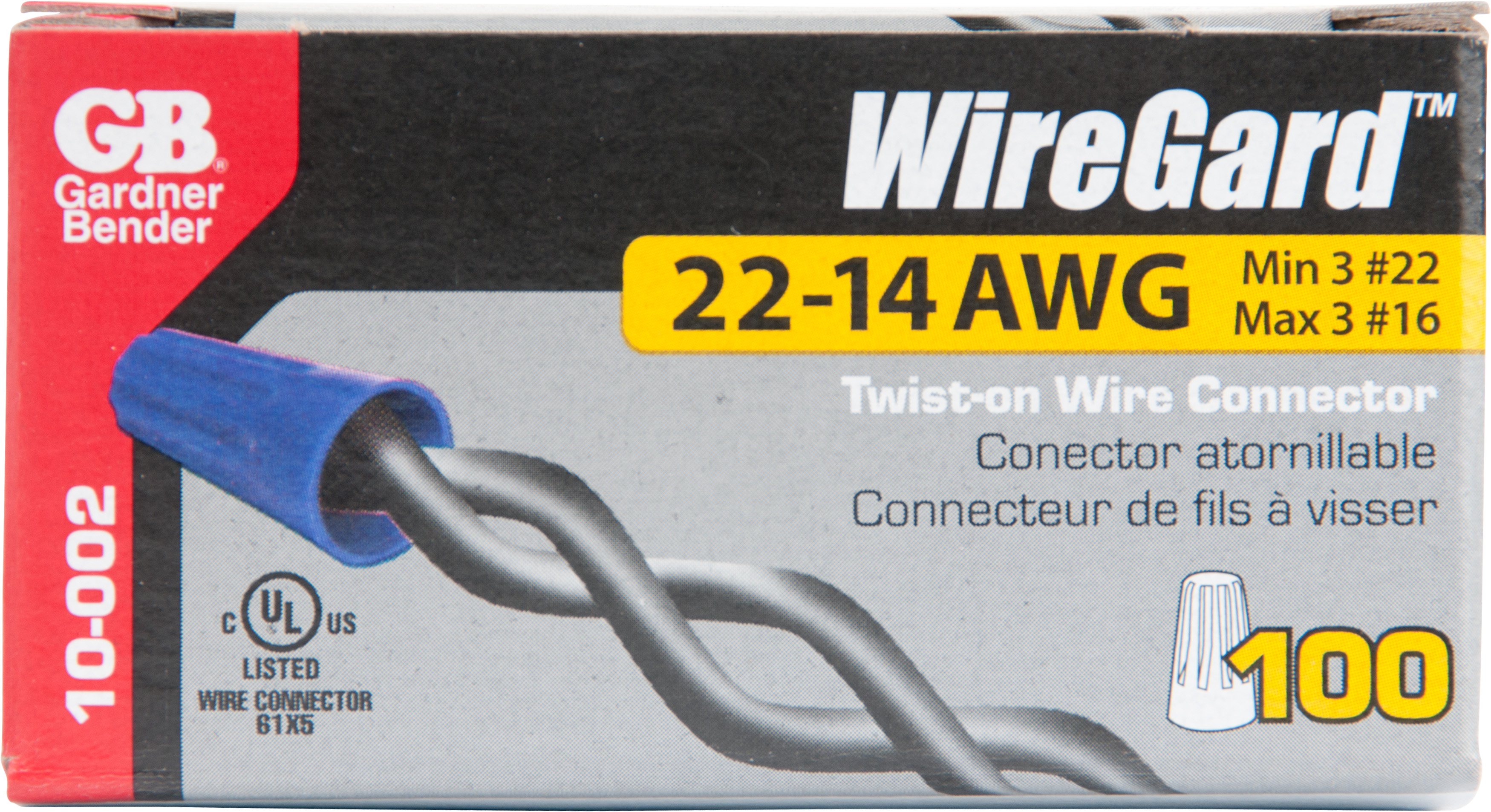

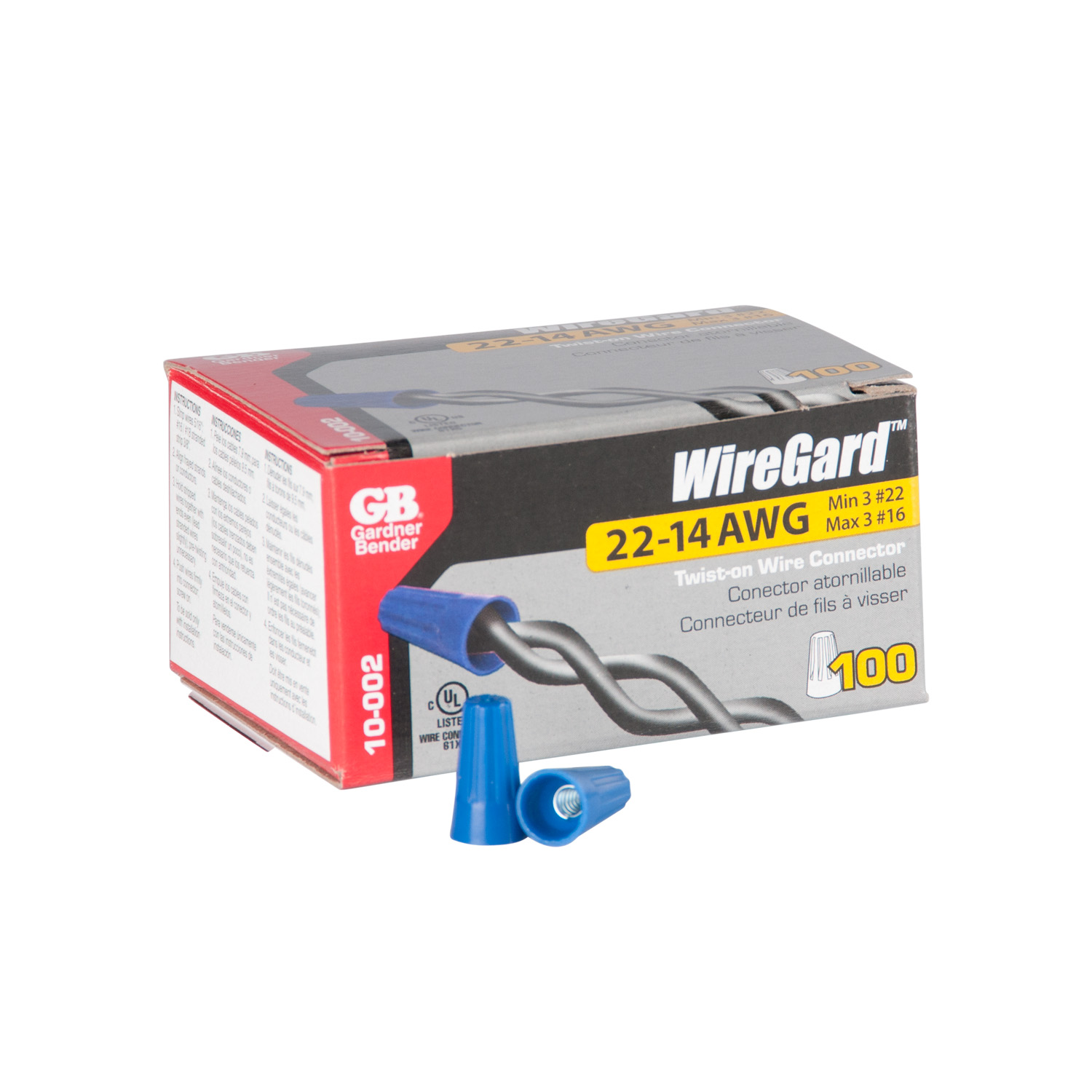

Wiregard Wire Connector, Blue, 100 Per Box
Part # 10-002
The industry's standard twist-on connector with quality performance and durability. GB specifies this connector for a wire range of #22 - #16 AWG and More...
WHERE TO BUY
The industry's standard twist-on connector with quality performance and durability. GB specifies this connector for a wire range of #22 - #16 AWG and recommends a wire combination of Min: (3) #22 wire and Max: (3) #16. It is blue in color for easy color code identification. Recommended for copper to copper connections only. Made from tough, thermoplastic shells which guard against hydrocarbons, diluted acid or alkaline solutions.
- Designed to require fewer turns to reach required torque and meet or exceed UL pull out and dielectric test requirements
- Square-wire zinc-plated spring instantly adjusts to the shape and size of the splice
- Flame-retardant properties resist heat distortion up to 105 degrees Celsius/221 degrees Fahrenheit
- High-dielectric shell features deep skirt design to prevent exposure of bare wire
- Rated at 300V max
- Copper to copper connections only
| Warranty | Standard 1 year |
| Model | GB-2 |
| RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
| Color | Blue |
| Out of Package Height (in) | 0.7 |
| Out of Package Width (in) | 0.17 |
| Out of Package Length/Depth (in) | 0.39 |
| Each in Package Height (in) * | 1.75 |
| Each in Package Width (in) * | 3.25 |
| Each in Package Length/Depth (in) * | 2.5 |
| Each in Package Weight (lbs) * | 0.228 |
| Inner Pack Weight (lbs) * | 2.28 |
